Uniform Abdomen Phantom - Low-Contrast Spheres

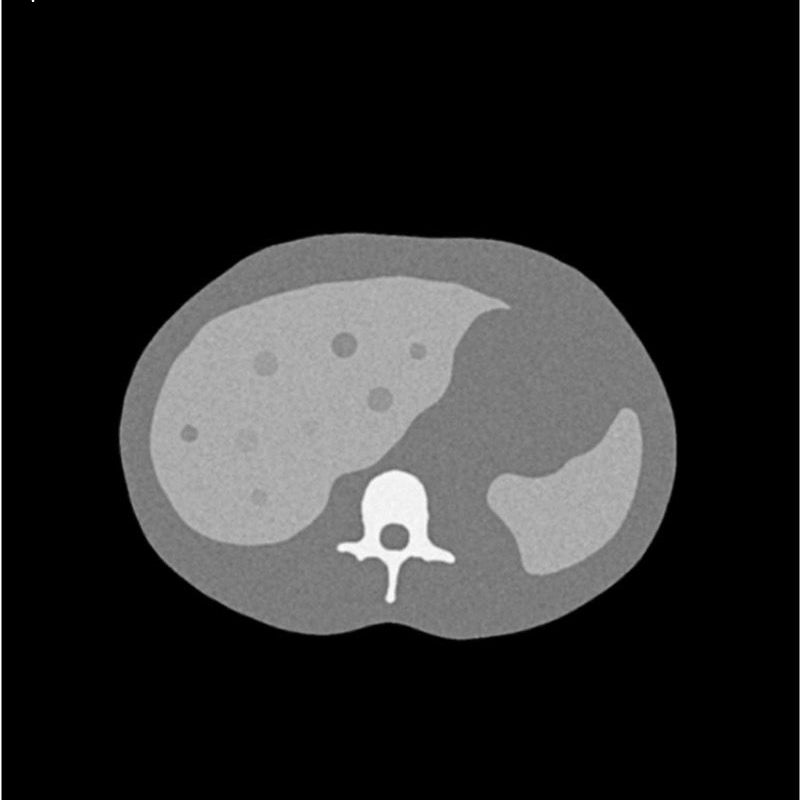

This phantom is a semianthropomorphic phantom representing the abdomen including the liver, spleen and the spine. Organ contours do not change throughout the entire phantom. The phantom has 64 spherical lesions in the liver with 8 and 12 mm diameter and lesion contrasts of 10, 20, 30 and 40 HU to the surrounding liver.

The phantom can be used in CT (including CBCT) to assess the detectability of spherical low-contrast lesions in a uniform liver background.

    SPECIFICATIONS:
  • Size: Approx. 26 x 19 x 15 cm
  • Weight: Approx. 5.5 kg
  • Base material: Cellulose-polymer composite
  • Optimal tube voltage: 120 kVp – (adaptable upon request)
DIAGNOSTIC FEATURES:

64 spherical liver lesions in 7 sections.

Lesion diameter: 8 mm and 12 mm
Lesions contrasts: 10, 20, 30 and 40 HU at 120 kVp

  • Section 1: 8 lesions
  • Section 2: 8 lesions
  • Section 3: 8 lesions
  • Section 4: 12 lesions
  • Section 5: 12 lesions
  • Section 6: 8 lesions
  • Section 7: 8 lesionss
    General indications:
  • The phantom is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time.
  • The phantom is coated with a protective layer. If the protective layer is undamaged, the phantom can be cleaned using a damp cloth (water or mild detergent)
  • Protect from direct sunlight.
  • Maintain a storage temperature of 10°C to 30°C. If the phantom is exposed to temperatures below -10°C or above 45°C, it can be severely damaged.
  • The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
  • The phantom is not certified as medical device.
  • Air voids are filled with cellulose-polymer composite of approx. -160 HU.
Download:
Brochure

Made by PhantomX and sold by GTSimulators.

GTSimulators by Global Technologies
PhantomX Authorized Dealer

Product Dimensions and Weight:
  • Size: Approx. 26 x 19 x 15 cm
  • Weight: Approx. 5.5 kg


    General indications:
  • Phantoms are manufactured of a cellulose-polymer composite material with similar properties to hardwood. If treated carefully, they will last for a long period.
  • The phantoms are coated with a protective layer. If the protective layer is unharmed, the phantoms can be cleaned using a damp cloth (water or mild detergent).
  • Protect from direct sunlight.
  • Maintain a storage temperature of 10 °C to 30 °C.
  • If the phantom is exposed to temperatures below -10 °C or above 45 °C, it can be seriously damaged.
  • The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
  • Air voids are filled with cellulose-polymer composite of approx. -80 HU.
