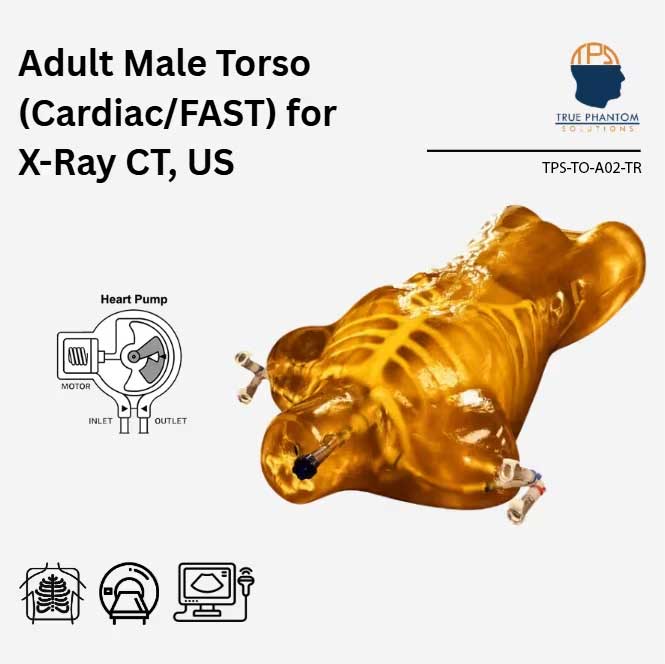

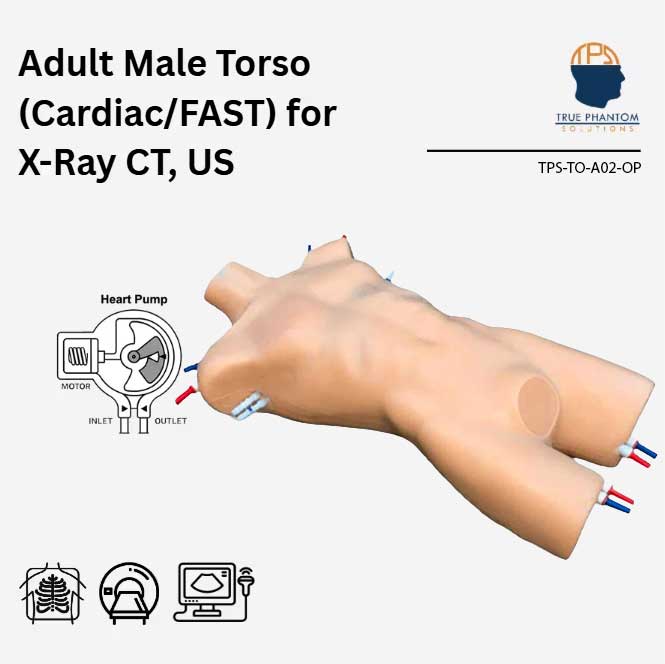

Adult Male Torso Cardiac/FAST with Heart Pump for X-Ray CT and Ultrasound

The Adult Male Torso (Cardiac/FAST) phantom is a lifelike simulator compatible with Ultrasound and X-Ray/CT. The skeleton features a realistic three-layered structure and inner porosity. The phantom includes a realistic heart with major vessels, chambers, and a TPS heart pump for lifelike heartbeat and motion.

Adult Male Torso (Cardiac/FAST) with a beating heart is a lifelike, anatomically realistic phantom/simulator from the neck to the pelvic area phantom/simulator with all the essential organs present inside. This phantom is compatible with Ultrasound and X-Ray/CT, and it is an ideal tool for applications such as angiography. The organs are made from realistic urethane-based tissue-mimicking materials, and the bones are made from a patented ceramic-reinforced epoxy-based composite material. The skeleton is assembled from individually cast bones with vertebrae that have a realistic three-layered structure and inner porosity. This phantom can be used with iodine-based and Microbubble contrast media.

It offers practitioners a lifelike environment to master the FAST (Focused Assessment with Sonography in Trauma) protocol by identifying its various pathologies. The phantom is also well suited for POCUS (Point-of-Care Ultrasound) training, allowing practitioners to develop and refine their bedside ultrasound skills in a realistic and hands-on setting.

The design of this phantom includes a realistic heart with all major heart vessels and internal heart chambers. The TPS heart pump is included with this phantom, and it enables a realistic heartbeat and motion of the heart walls.

Anatomy

  • Complete Spine
  • Complete Ribcage
  • Shoulders and Clavicles
  • Pelvis
  • Partial Femoral Bones
  • Trachea
  • Realistic Heart with:
    • Right Ventricle:
      • Moderator Band that runs from the anterior wall to the septum bridge
      • Volume: 60 ml
    • Left Ventricle:
      • Papillary muscles to the anterior and posterior walls
      • Volume: 63 ml
    • Right Atrium:
      • Right atrial appendage with distinct muscle structures
      • Volume: 45 ml
    • Left Atrium:
      • Unique muscle structure to the appendage of the left atrium
      • Volume: 29 ml
  • Appendage Feature
  • Aorta
  • Jugular vessels
  • Pulmonic and Pulmonary Veins attached to LA
  • Flexible Valvular Structures
  • SVC
  • IVC
  • Abdominal Organs:
    • Lungs
    • Diaphragm
    • Liver
      • Ligaments
      • Bile Ducts
    • Gallbladder
    • Stomach
    • Kidneys
    • Spleen
    • Pancreas
    • Large and Small Intestines
    • Bladder
    • Prostate

Beating Heart Features:

  • Beating heart model with the cyclic motion of the heart walls
  • Water-fillable chambers with minimal air pockets
  • Access to intravenous catheter insertion
  • 0-240 BPM (Pulsatility)
  • Two 0-6L/min Outputs (Systole/Diastole)
  • Variable Pulse Length (0-500ms)
  • Arterial Pressure (Output up to 430 mmHg)
  • Two 3/8″ CPC (HFCD17812) valved couplings (Inlet/Outlet)
  • Intuitive user-friendly user interface + touchscreen display

Pathologies:

  • Internal Hemorrhages:
    • Perihepatic : 88ml
    • Perisplenic : 76 ml
    • Pericardial : 21 ml
    • Around the Bladder : 61 ml
  • Cholecystitis
  • Aortic Aneurysm
  • Lesions in the Colon

Included In Order:

  • Adult Torso (Cardiac/FAST) Phantom
  • TPS Heart Pump
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case

Materials Used:

  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

Product Size & Weight

Phantom:
  • Size: 34 x 18 x 10 in (approx.)
  • Weight: 88 lbs (approx.)
Heart Pump (V5):
  • Size: 28 x 8 x 10 (approx.)
  • Weight: 39 lbs (approx.)

Shipping Dimensions and Weight

Size with Hard Carry Case:
  • Size: 47 x 26 x 18 in (approx.)
  • Weight: 144 Lbs (approx.)
Size of Pump Package:
  • Size: 36 x 14 x 10 in (approx.)
  • Weight: 90 Lbs (approx.)
*Entire shipment will be placed on a wooden pallet.

Design of the Phantom:

*/ Small variations in appearance may be present due to material characteristics and routine production tolerances. /*

Ultrasound Scans of the Heart

Ultrasound Scans of the Torso

*/ These scans were obtained from the Adult Torso for X-Ray CT, US (TPS-US-A02) and were taken using a GE device. The abdominal probe of 3.0 MHz -5.0 MHz.
If you have any questions related to these, Contact Us /*

CT Scans of the Torso

*/ These scans were obtained from a customized ultrasound & X-RAY CT Torso that were captured by a CANON CT Scanner – One Aquilion (Model TSX-305A). If you have any questions related to these, Contact Us /*

Download a PDF with product details

Adult Male Torso Cardiac/FAST with Heart Pump for X-Ray CT and Ultrasound

Product Size & Weight

Phantom:
  • Size: 34 x 18 x 10 in (approx.)
  • Weight: 88 lbs (approx.)
Heart Pump (V5):
  • Size: 28 x 8 x 10 (approx.)
  • Weight: 39 lbs (approx.)

Shipping Dimensions and Weight

Size with Hard Carry Case:
  • Size: 47 x 26 x 18 in (approx.)
  • Weight: 144 Lbs (approx.)
Size of Pump Package:
  • Size: 36 x 14 x 10 in (approx.)
  • Weight: 90 Lbs (approx.)
*Entire shipment will be placed on a wooden pallet.
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

Tissue Properties

Type of Tissue Sound Velocity [m/s] Density [g/cm3] Attenuation Measured at 2.25 MHz [dB/cm] Hardness [Shore OO] T2 [ms] Speckles
Organs with Speckles (liver, kidneys, etc.) 1435 ± 10 0.99 1.0 ± 0.2 20 70 VARIABLE
Organs without Speckles (stomach, intestines, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 NO
Body Tissue 1410 ± 10 1.00 1.2 ± 0.2 30 65 LOW
Cortical Bone 3000 ± 30 2.31 6.4 ± 0.3 N/A N/A N/A
Trabecular Bone 2800 ± 50 2.03 21 ± 2 N/A N/A N/A

Thermal Properties of our Bone-Mimicking Material

Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/m K 1.040 MJ/m3 K 0.746 mm2/s 1.289 m K/W 0.978 J/g Deg Celsius 3070 m/s

HU Values of the Tissue Mimicking-Materials

Tissue Type HU Value (Average)
Body Tissue -25
Trabecular Bone 800
Cortical Bone 1300
Aorta 40
Vena Cava 40
Trachea 80 (Tissue Part), -1000 (Air Filled Part)
Lungs -850
Pancreas 110
Spleen 110
Stomach -850
Tissue Type HU Value (Average)
Kidneys 110
Bladder 35
Rectum Wall 100
Sigmoid Colon Wall 100
Heart 40
Liver 110
Gallbladder 35
Diaphragm 80
Large and Small Intestines 80 (Tissue Part), -1000 (Air Filled Part)
