Cardiac Adult Torso with Heart Pump for X-Ray CT and MRI

The Adult Human Torso (Cardiac) Phantom is a lifelike simulator with realistic anatomy, including essential organs and a beating heart. Compatible with X-Ray/CT and MRI, it serves as an ideal tool for medical research in imaging. The product features a realistic heart with major vessels, internal chambers, and a heart pump(V5) for lifelike heartbeat and motion

Adult Human Torso (Cardiac) with a beating heart is a lifelike phantom/simulator, anatomically realistic, from neck to pelvic area with all the essential organs present inside. This phantom can be made compatible with X-Ray/CT and MRI. It is an ideal tool for applications such as angiography. The organs, bones, and body tissue mimics closely that of an adult human body. This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

The design of this phantom includes a realistic heart with all major heart vessels and internal heart chambers. The heart pump(V5) is included with this phantom, and it enables the realistic heartbeat and motion of heart walls.

Anatomy

  • Complete Spine

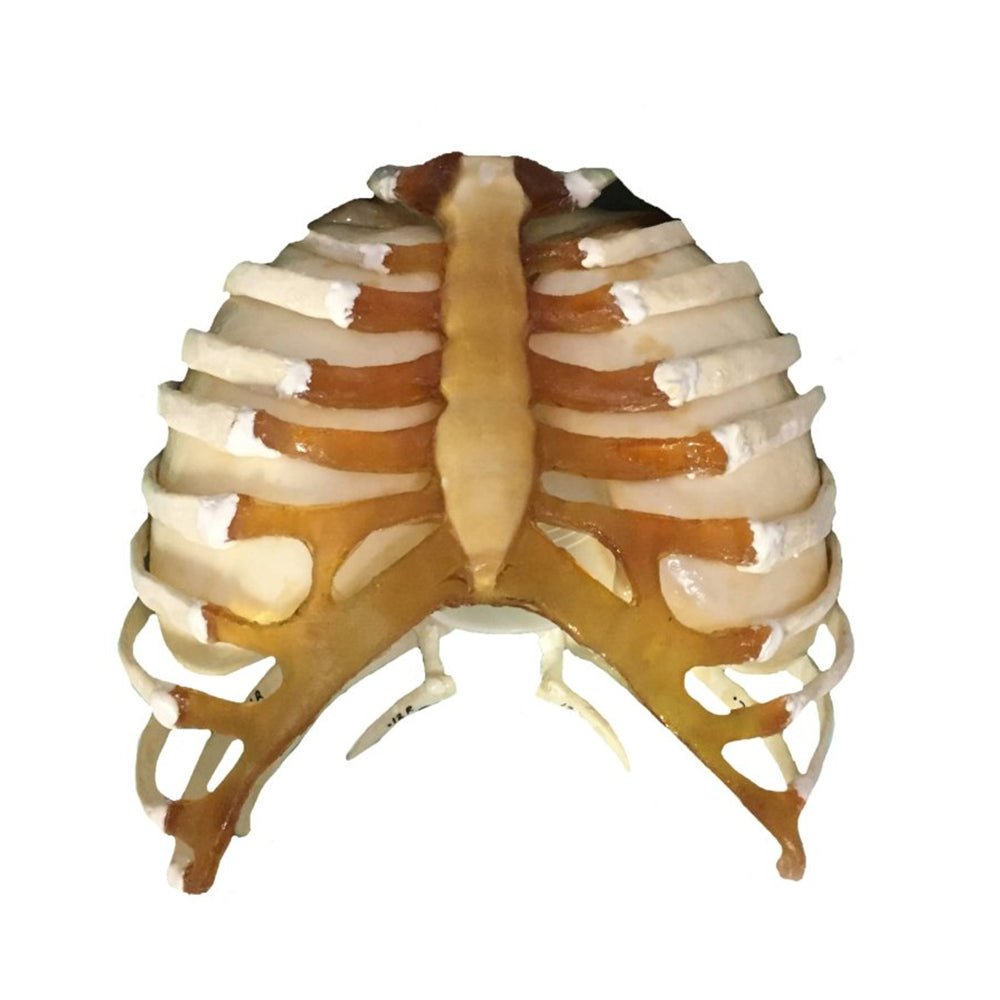

  • Complete Ribcage
  • Shoulders and Clavicles
  • Pelvis
  • Partial Femoral Bones
  • Trachea
  • Realistic Heart with:
    • Right Ventricle:
      • Moderator Band that runs from the anterior wall to the septum bridge
      • Volume: 60 ml
    • Left Ventricle:
      • Papillary muscles to the anterior and posterior walls
      • Volume: 63 ml
    • Right Atrium:
      • Right atrial appendage with distinct muscle structures
      • Volume: 45 ml
    • Left Atrium:
      • Unique muscle structure to the appendage of the left atrium
      • Volume: 29 ml
  • Appendage Feature
  • Aorta
  • Jugular vessels
  • Pulmonic and Pulmonary Veins attached to LA
  • Flexible Valvular Structures
  • SVC
  • IVC
  • Lungs
  • Diaphragm
  • Liver
    • Ligaments
    • Bile Ducts
  • Gallbladder
  • Stomach
  • Kidneys
  • Spleen
  • Pancreas
  • Large and Small Intestines
  • Bladder
  • Prostate

Beating Heart Features:

  • Beating heart model with the cyclic motion of the heart walls
  • Water-fillable chambers with minimal air pockets
  • Access to intravenous catheter insertion
  • 0-240 BPM (Pulsatility)
  • Two 0-6L/min Outputs (Systole/Diastole)
  • Variable Pulse Length (0-500ms)
  • Arterial Pressure (Output up to 430 mmHg)
  • Two 3/8″ CPC (HFCD17812) valved couplings (Inlet/Outlet)
  • Intuitive user-friendly user interface + touchscreen display

Included In Order:

  • Adult Torso (Cardiac) Phantom
  • TPS Heart Pump (V5)
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case

Materials Used:

  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

Product Size & Weight

Phantom:
  • Size: 34 x 18 x 10 in (approx.)
  • Weight: 88 lbs (approx.)
Heart Pump(V5):
  • Size: 28 x 8 x 10 in (approx.)
  • Weight: 39 lbs (approx.)

Shipping Dimensions and Weight

Size with Hard Carry Case:
  • Size: 47 x 26 x 18 in (approx.)
  • Weight: 144 Lbs (approx.)
Size of Pump Package:
  • Size: 36 x 14 x 10 in (approx.)
  • Weight: 90 Lbs (approx.)
*Entire shipment will be placed on a wooden pallet.

Design of the Phantom:

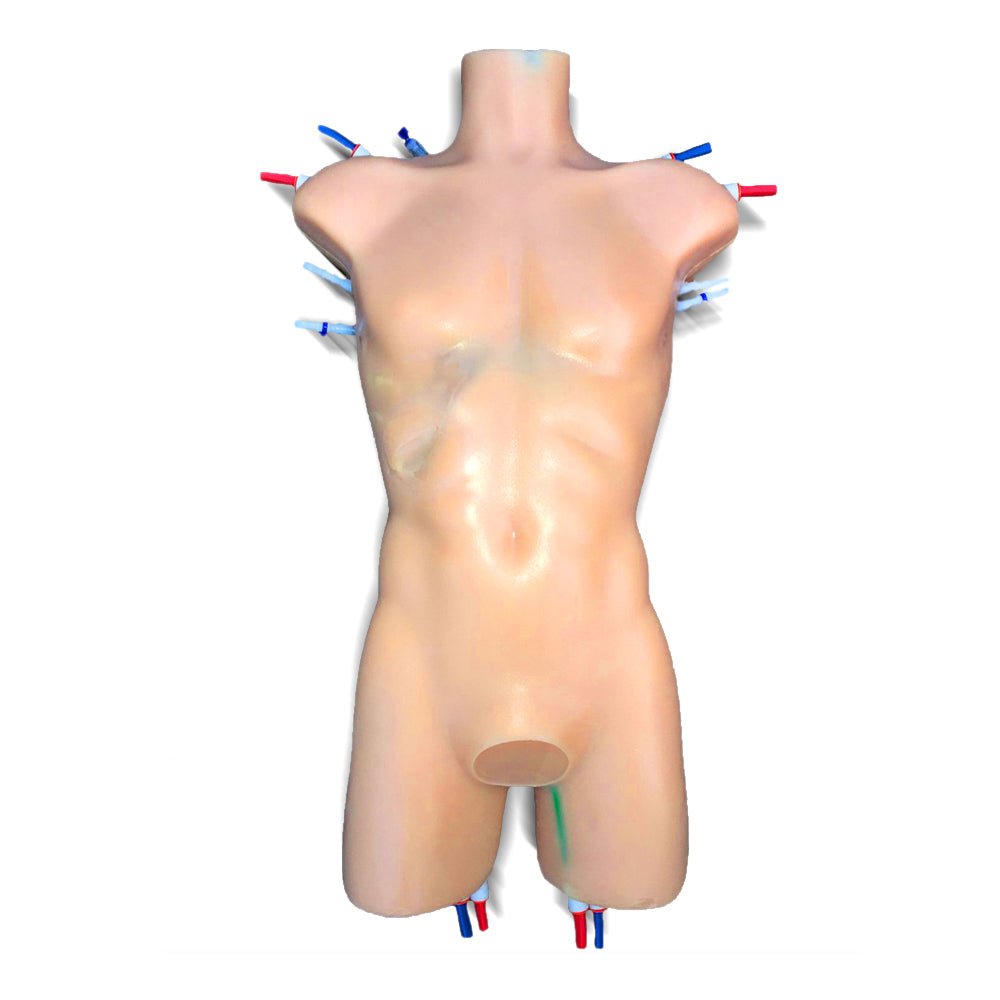

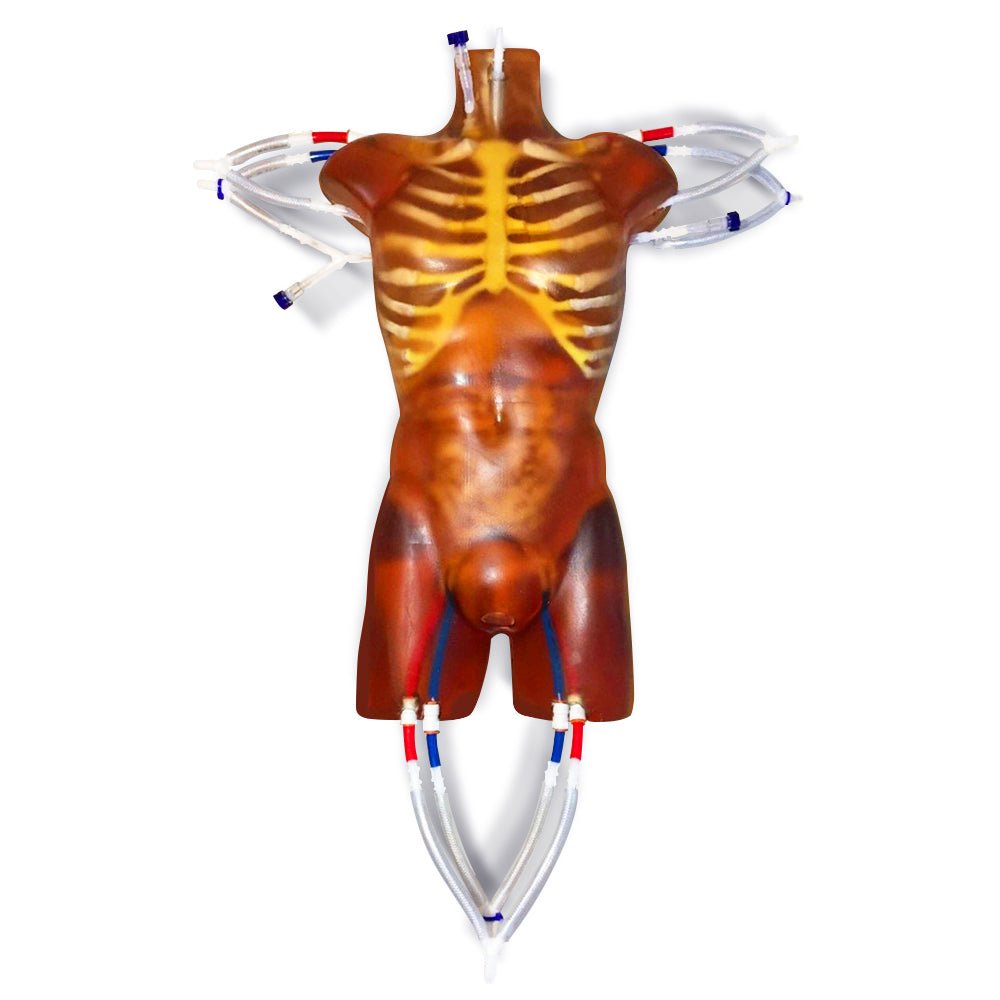

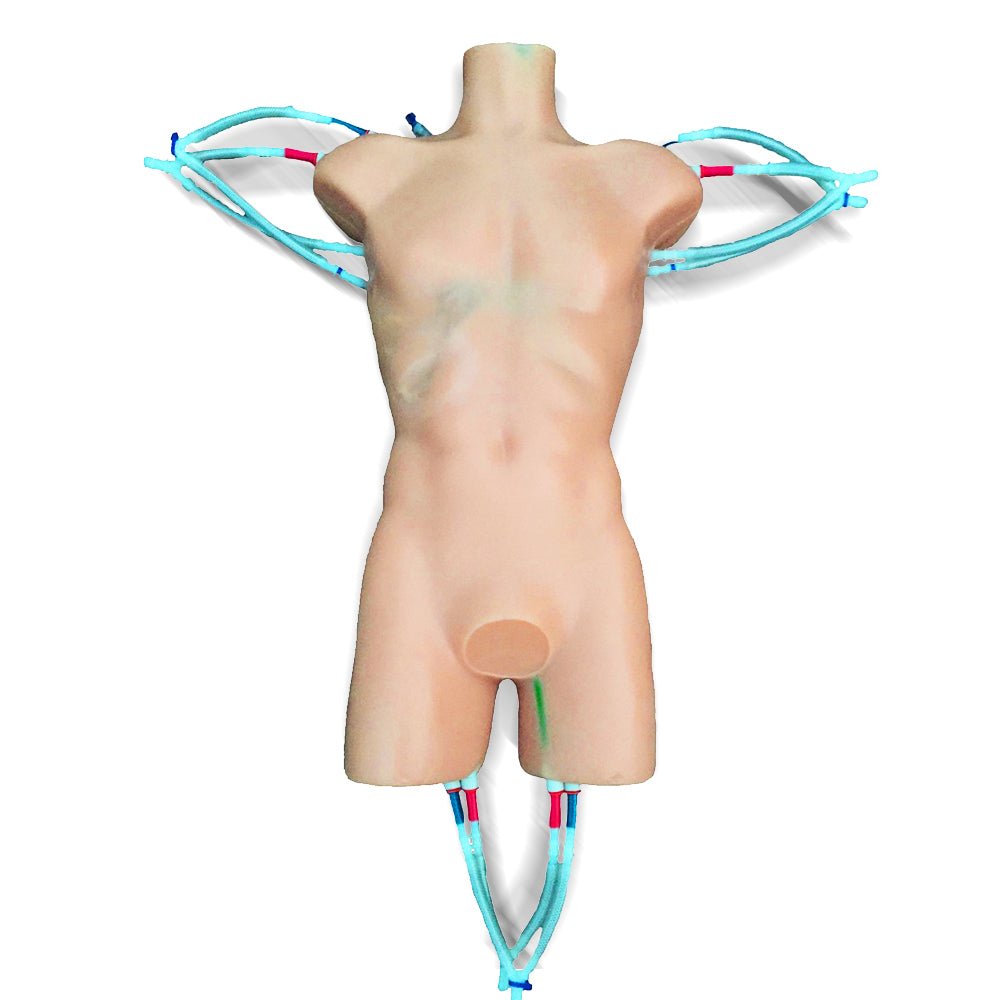

Front view

Lateral view

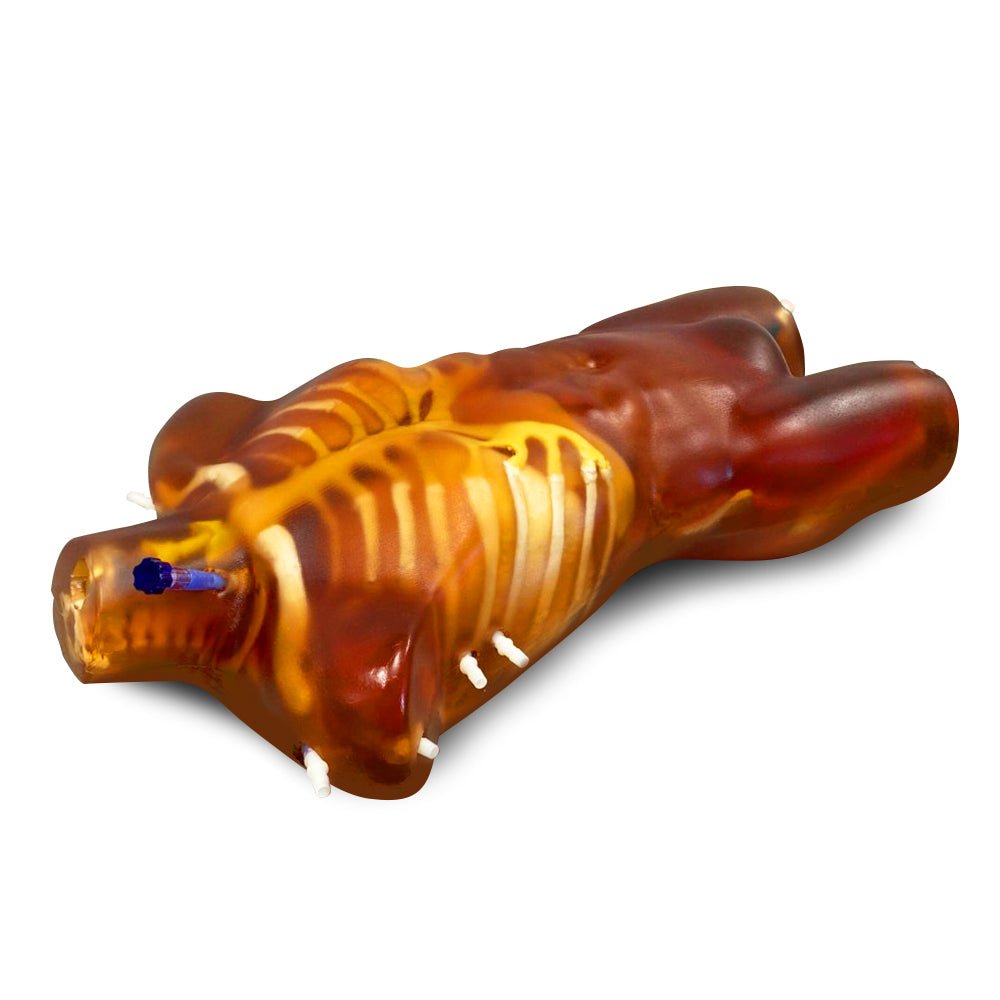

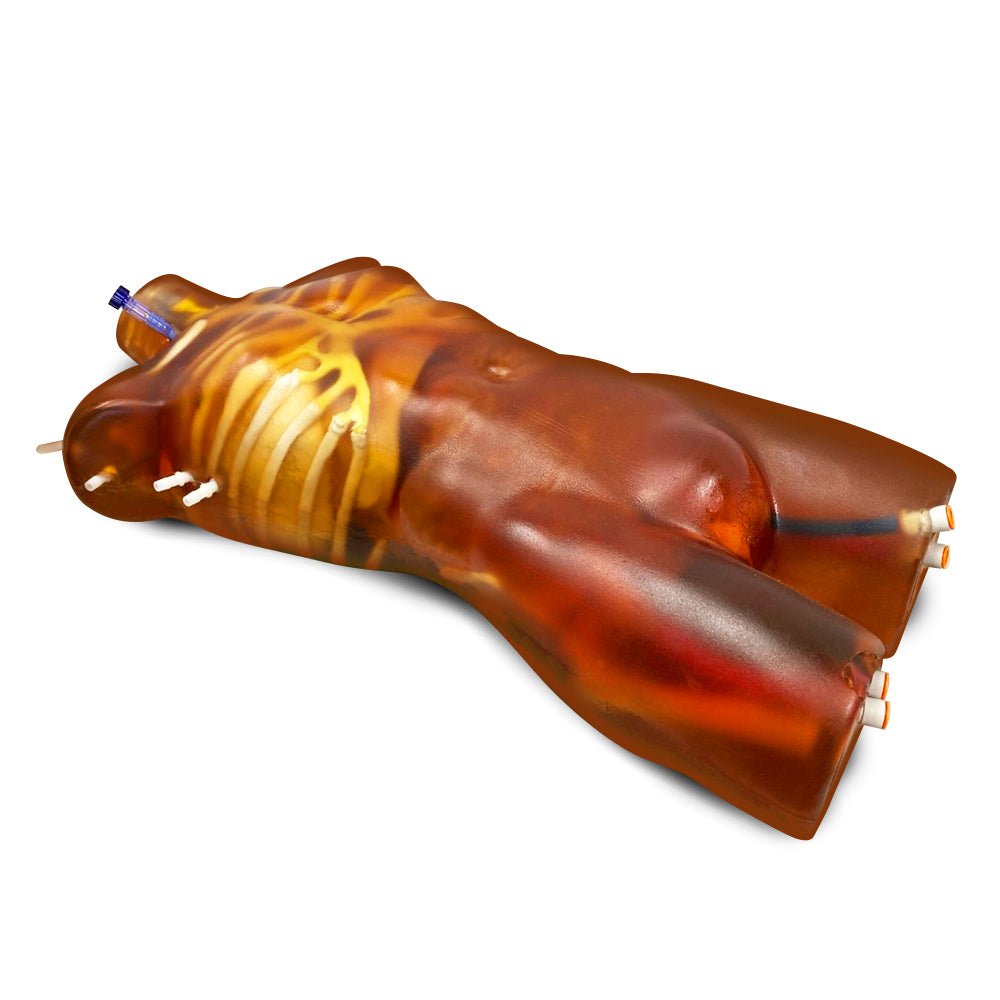

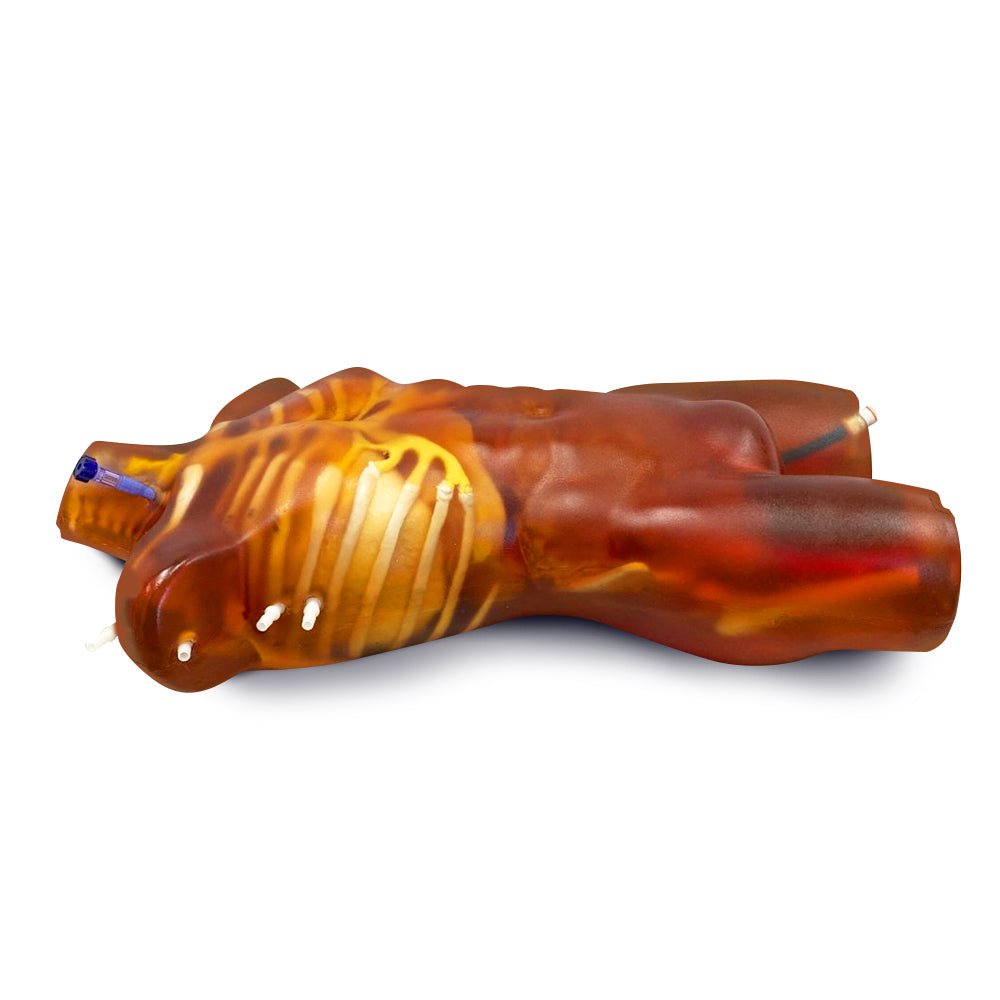

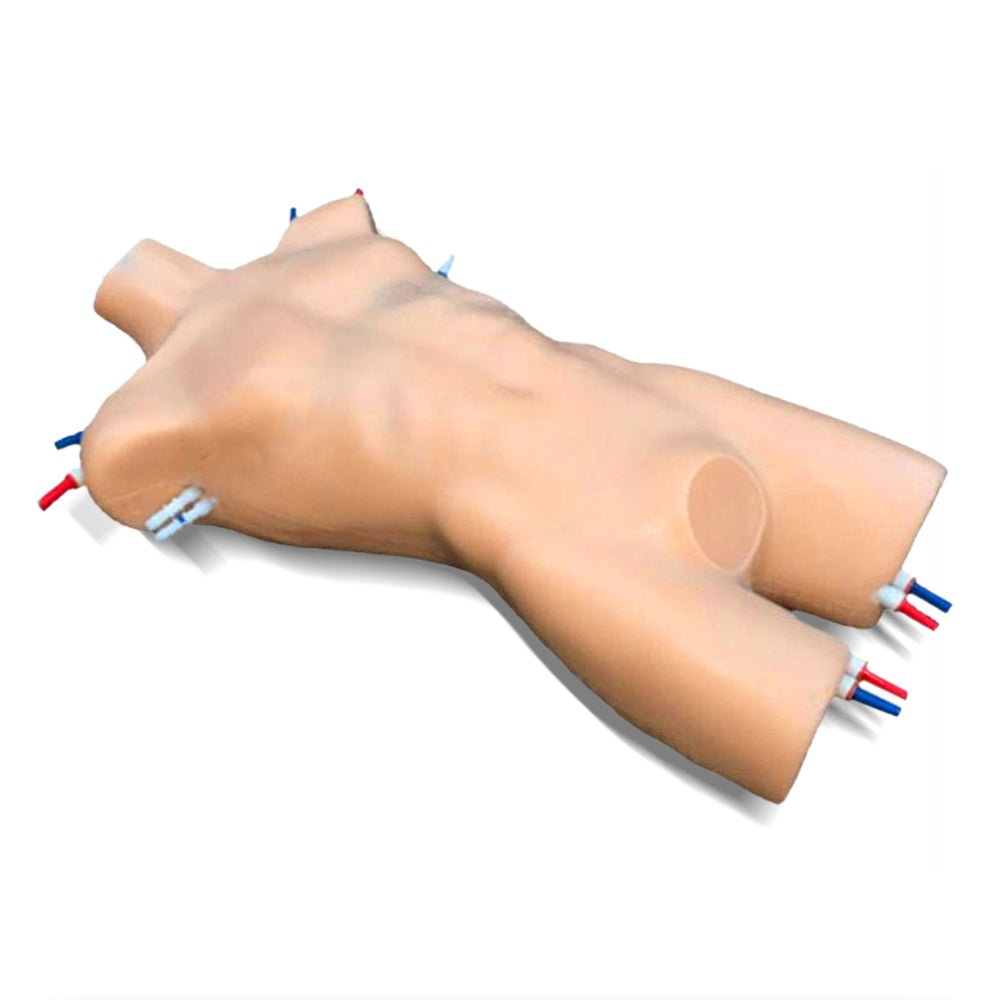

Perspective view

Top view

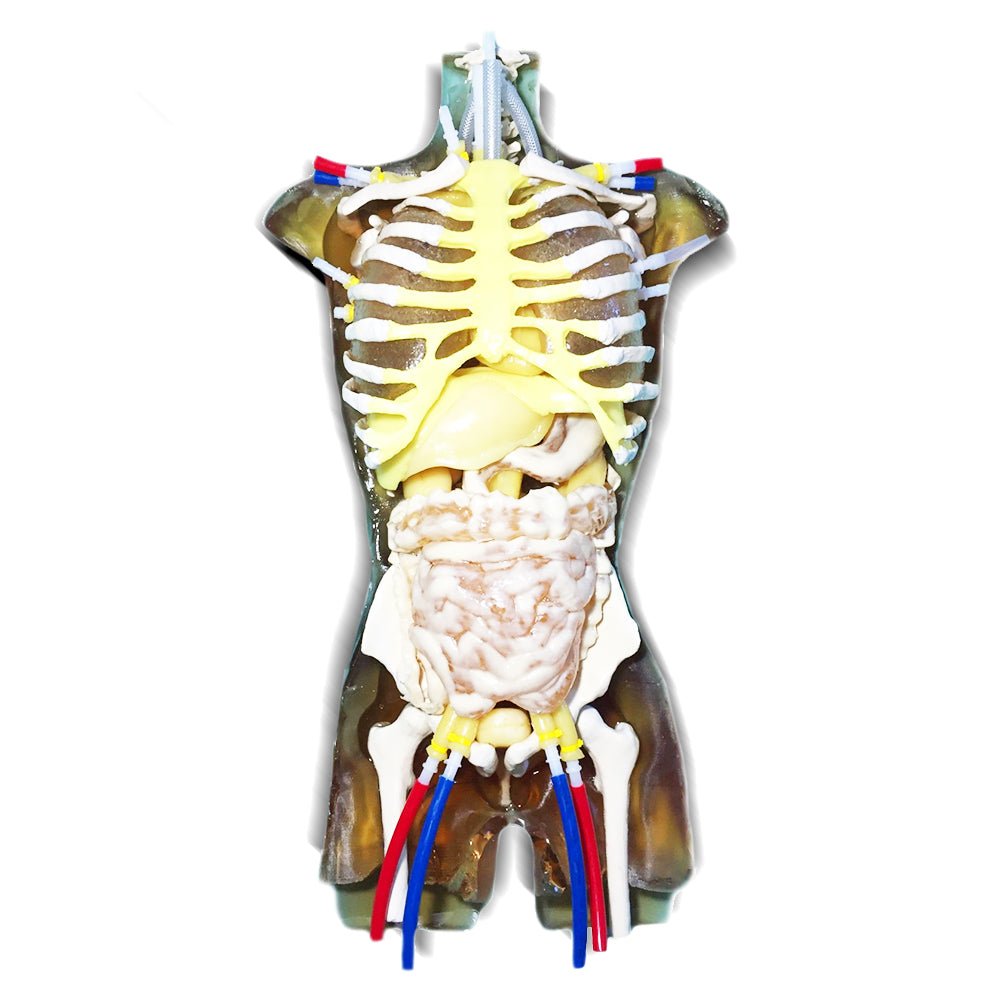

Heart Installed in Torso

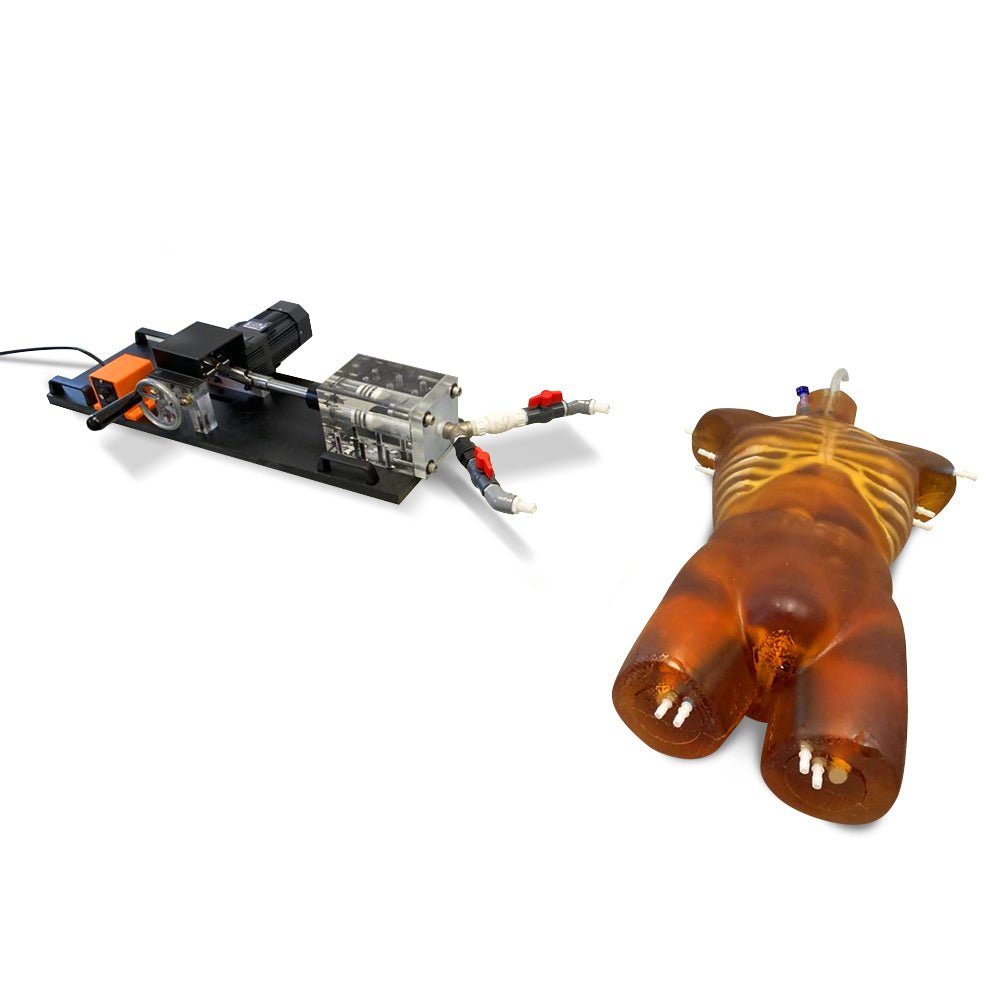

Heart Pump attached to the Heart inside of the Torso:

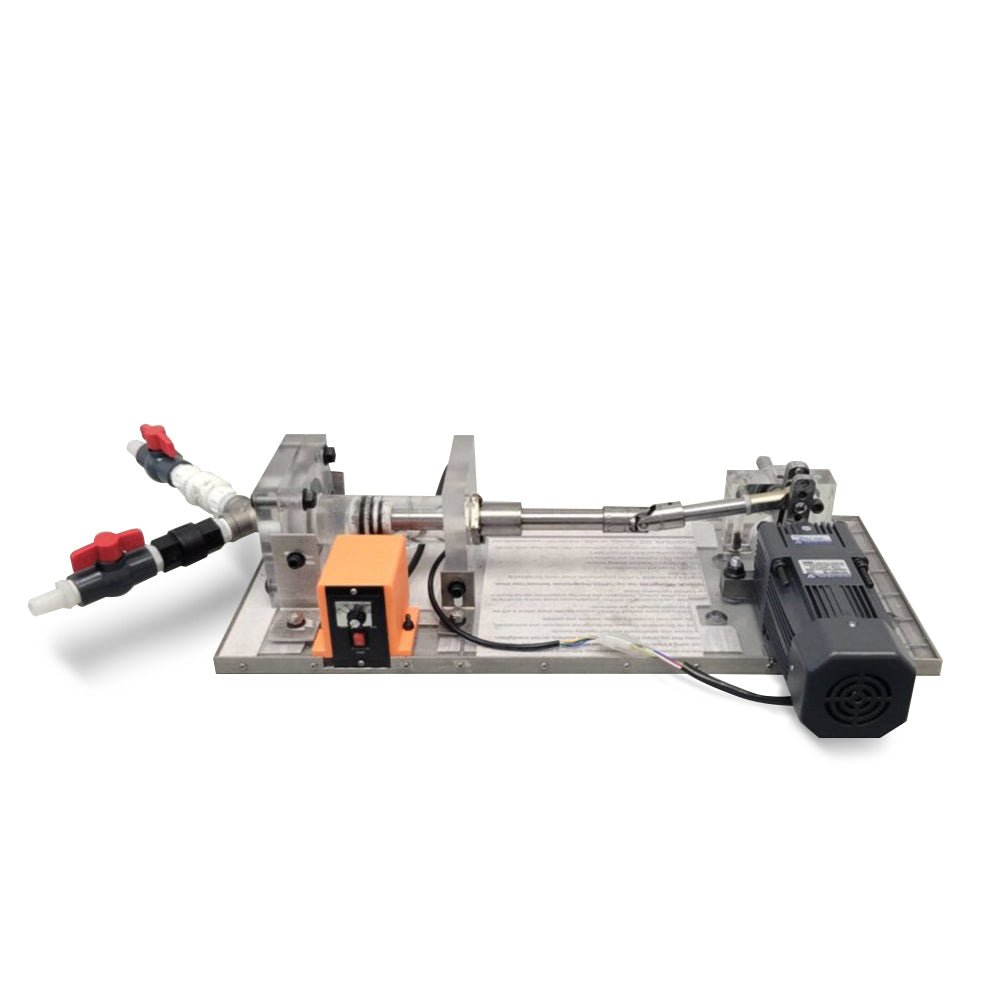

Heart Pump(V5) View

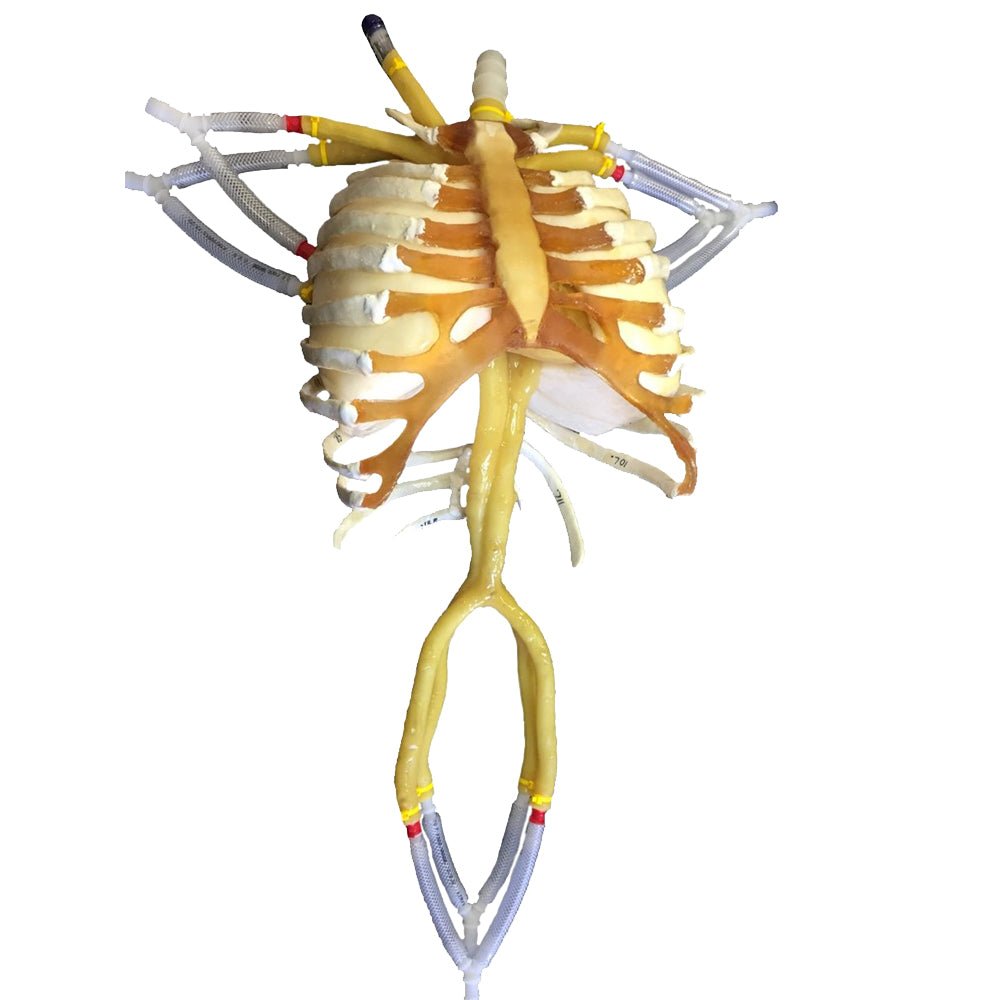

Heart connections design

Minimum opening of Vein/Arteries

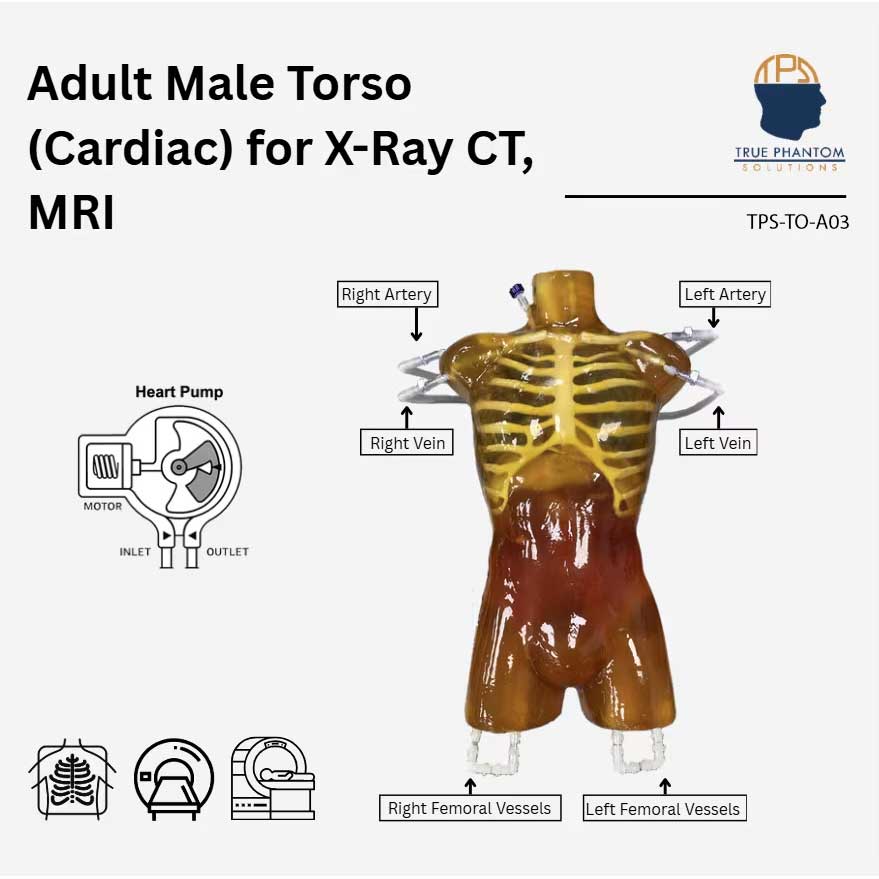

Heart connections in Torso

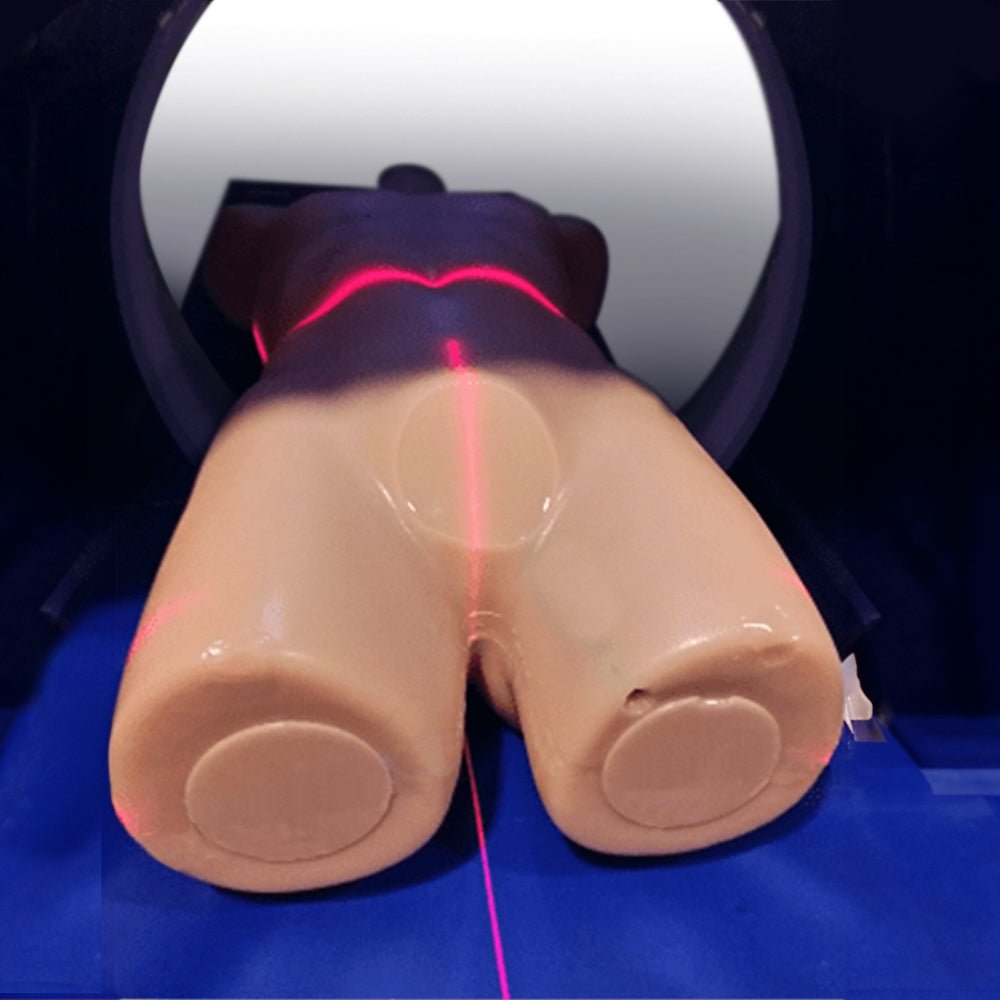

CT Scans of the Torso

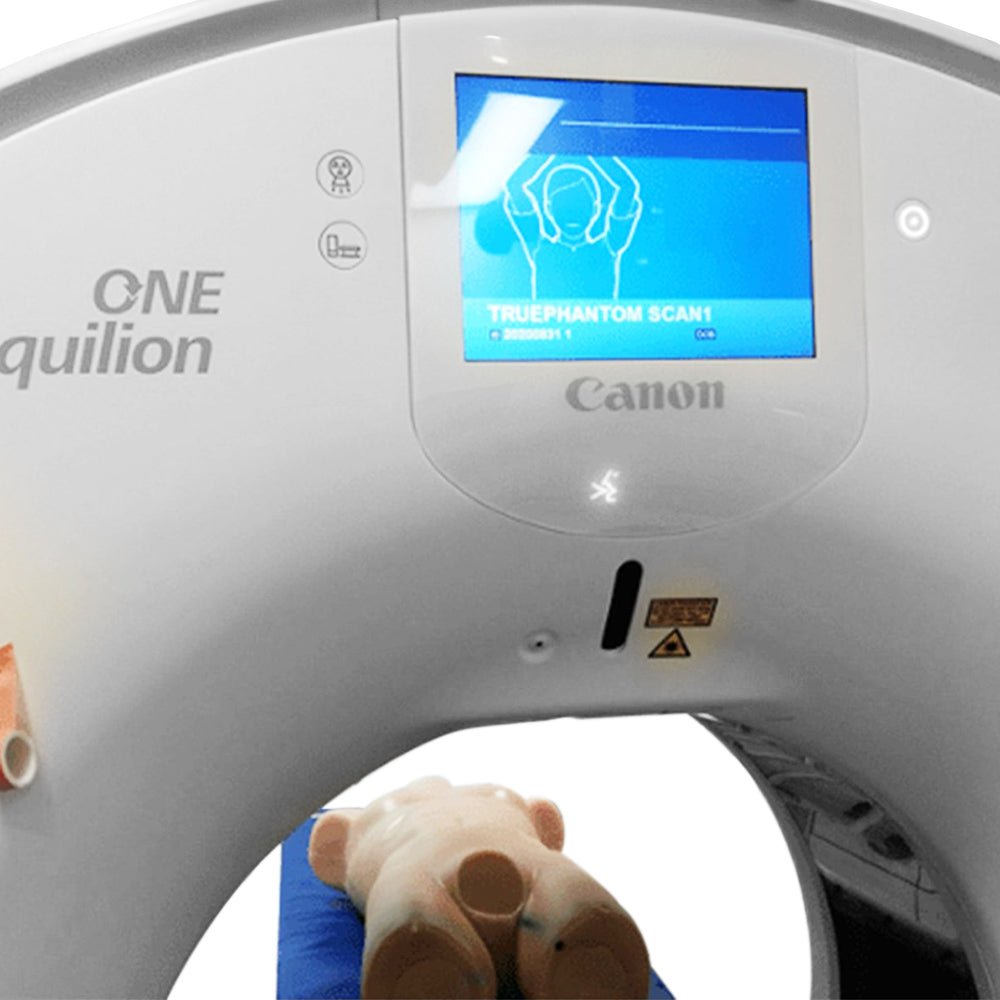

*/ These scans were obtained from a customized ultrasound & X-RAY CT Torso that were captured by a CANON CT Scanner – One Aquilion (Model TSX-305A). If you have any questions related to these, Contact Us /*

MRI Scans of the Heart

*/ These scans were obtained from the heart phantom placed in a water tank /*

Download a PDF with product details

Cardiac Adult Torso with Heart Pump for X-Ray CT and MRI

Product Size & Weight

Phantom:
  • Size: 34 x 18 x 10 in (approx.)
  • Weight: 88 lbs (approx.)
Heart Pump(V5):
  • Size: 28 x 8 x 10 in (approx.)
  • Weight: 39 lbs (approx.)

Shipping Dimensions and Weight

Size with Hard Carry Case:
  • Size: 47 x 26 x 18 in (approx.)
  • Weight: 144 Lbs (approx.)
Size of Pump Package:
  • Size: 36 x 14 x 10 in (approx.)
  • Weight: 90 Lbs (approx.)
*Entire shipment will be placed on a wooden pallet.

Tissue Properties

Type of Tissue Sound Velocity [m/s] Density [g/cm3] Attenuation Measured at 2.25 MHz [dB/cm] Hardness [Shore OO] T2 [ms] Speckles
Organs with Speckles (liver, kidneys, etc.) 1435 ± 10 0.99 1.0 ± 0.2 20 70 VARIABLE
Organs without Speckles (stomach, intestines, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 NO
Body Tissue 1410 ± 10 1.00 1.5 ± 0.2 40 55 LOW
Cortical Bone 3000 ± 30 2.31 6.4 ± 0.3 N/A N/A N/A
Trabecular Bone 2800 ± 50 2.03 21 ± 2 N/A N/A N/A

Thermal Properties of our Bone-Mimicking Material

Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/m K 1.040 MJ/m3 K 0.746 mm2/s 1.289 m K/W 0.978 J/g Deg Celsius 3070 m/s

HU Values of the Tissue Mimicking-Materials

Tissue Type HU Value (Average)
Body Tissue -25
Trabecular Bone 800
Cortical Bone 1300
Aorta 40
Vena Cava 40
Trachea 80 (Tissue Part), -1000 (Air Filled Part)
Lungs -850
Pancreas 110
Diaphragm 80
Mammary Fat Tissues -25
Mammary Gland Tissues 35
Cervix 50
Vaginal Canal 50
Tissue Type HU Value (Average)
Spleen 110
Kidneys 110
Bladder 35
Rectum Wall 100
Sigmoid Colon Wall 100
Heart 40
Liver 110
Gallbladder 35
Stomach -850
Large and Small Intestines 80 (Tissue Part), -1000 (Air Filled Part)
Ovaries 50
Uterus 50
