Adult Full Human Body Phantom (with Muscles) for X-Ray, CT Scan and Ultrasound

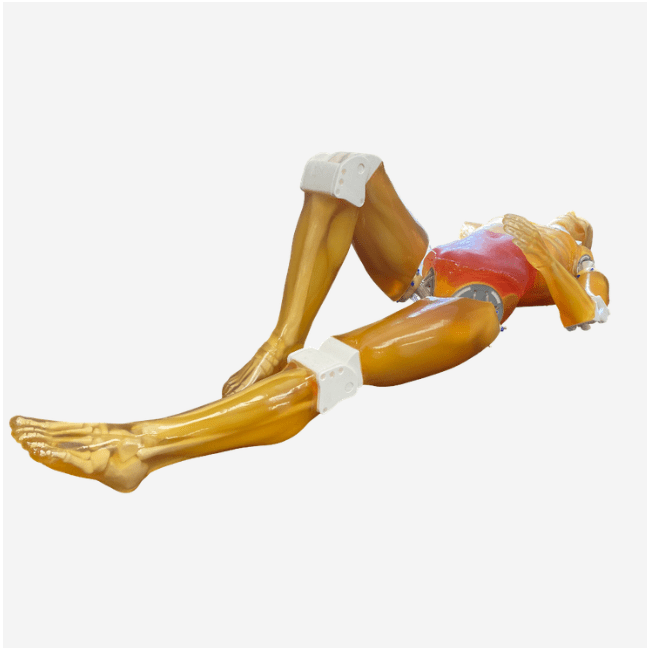

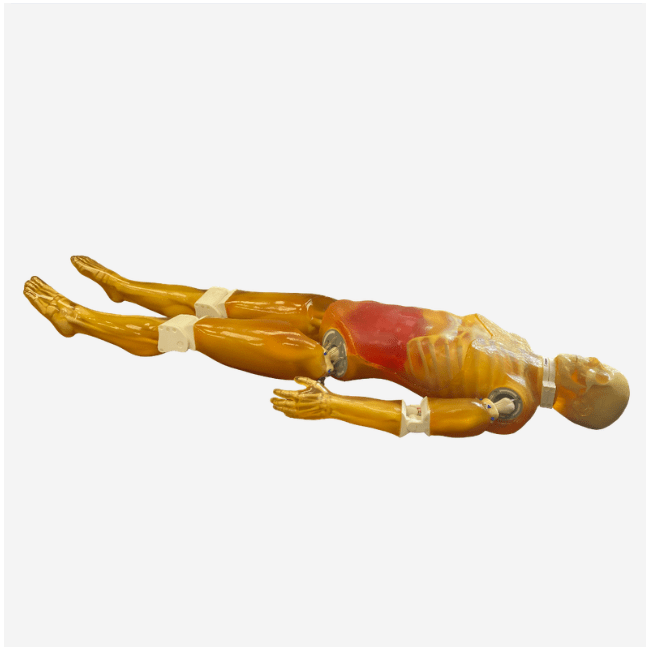

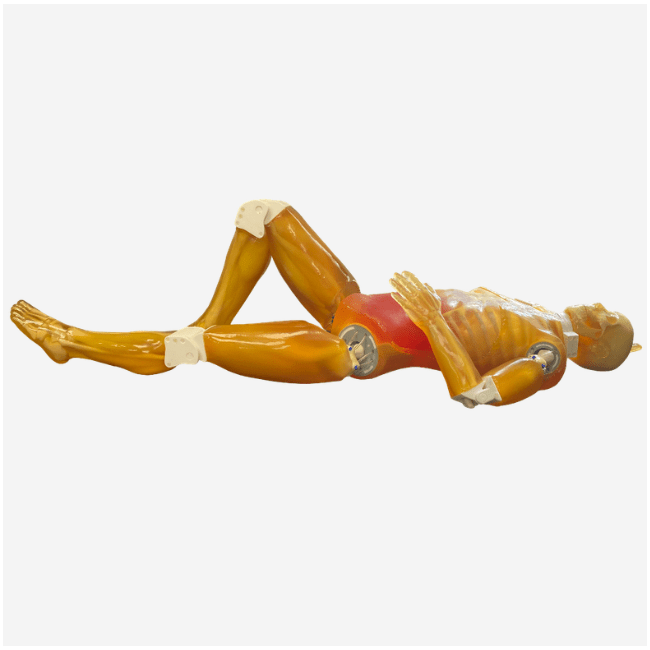

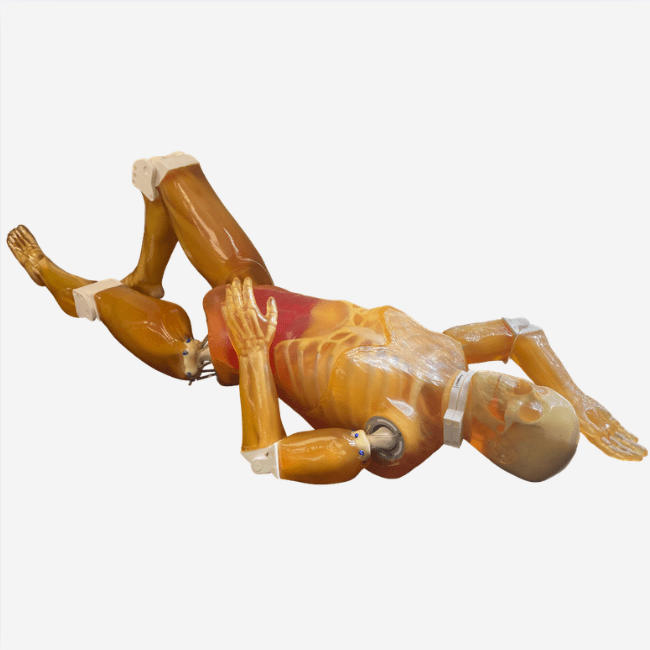

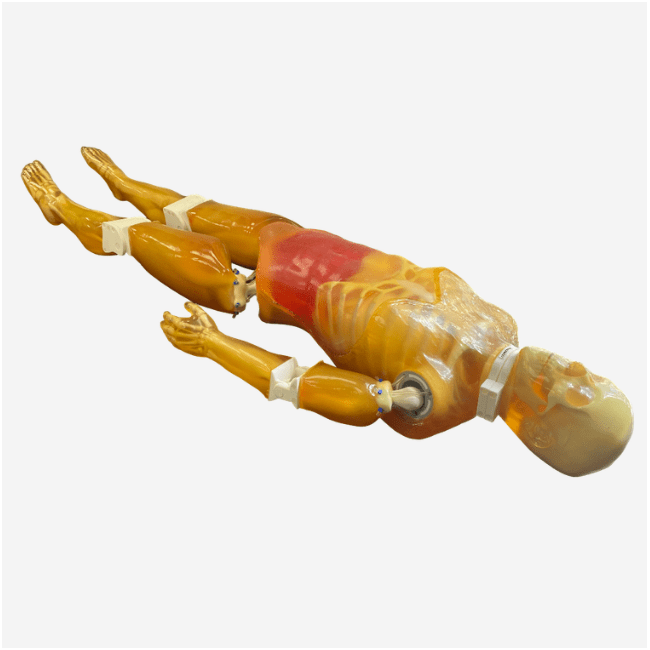

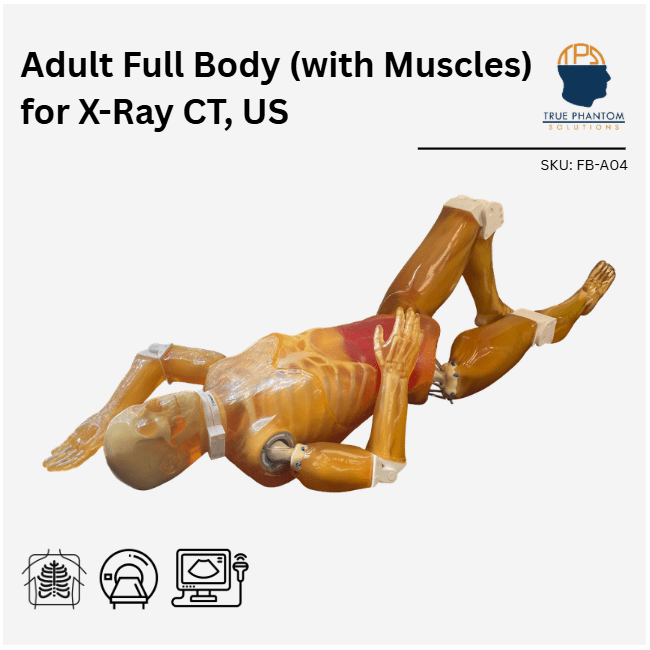

The Adult Full Body Phantom with Muscles is a versatile training product compatible with X-Ray/CT and Ultrasound. It is designed to mimic the major muscle structures in the arms and legs. The phantom is primarily used for providing hands-on experience with diagnostic imaging. The skeleton is made of individually cast bones with adjustable properties, and the phantom can be customized with various pathologies. It is available in transparent or skin-colored versions.

While it can be used for X-ray positioning techniques, its heavier weight may pose handling challenges.
If you require a phantom specifically for X-ray positioning training, we recommend the Adult Full Body for X-Ray Positioning and Imaging (TPS-FB-A05).

The Adult Full Body Phantom with Muscles is an X-Ray CT and US-compatible training product. Above other functionality listed below, this phantom was specifically enhanced to mimic the major muscle structure of arms and legs. The primary application of this phantom is hands-on experience with diagnostic imaging techniques and visual evaluation to find optimal scanning conditions.

The model of this phantom is based on an adult male body that weighs about 70 kg (154 lb) and measures 172 cm (69 in) in height.

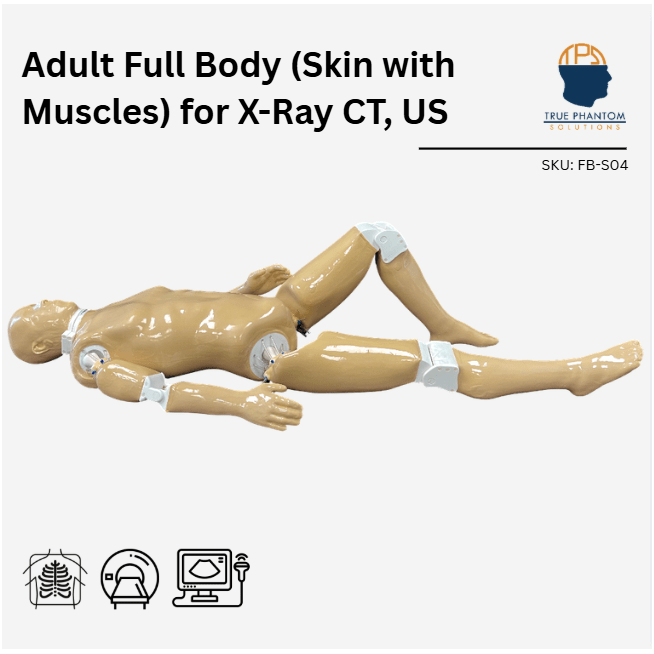

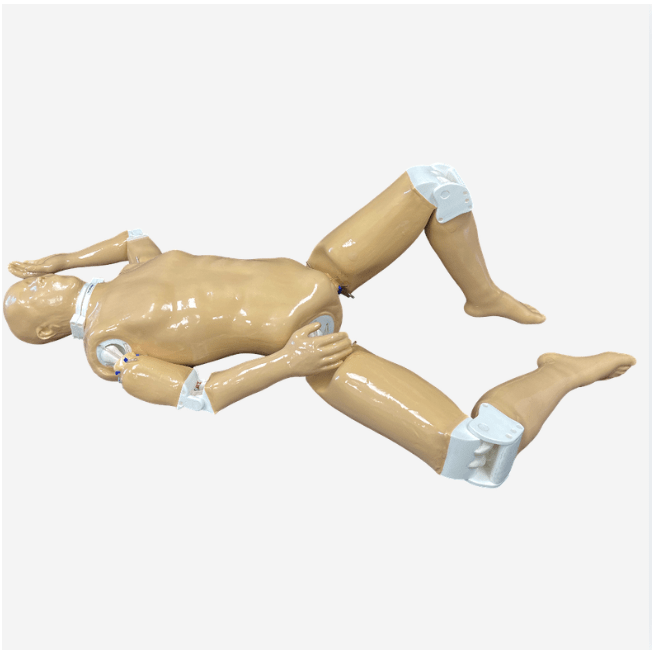

The skeleton is built from individually cast bones made from a patented synthetic material that has a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. Customizable with different pathologies (lesion, tumor, infection, abnormality) upon request. This positioning phantom can be ordered in a translucent or skin-colored version.

Anatomy

  • Full Human Body (10 Parts)
  • Realistic Body Tissue-Mimicking Material
  • Rotatable Shoulders (360° Around and 180° Sideways)
  • Movable Hip, Knee, and Elbow Joints
  • Detachable Head, Torso, and Limbs
  • Adult Head
    • Skull
    • Brain
    • Brain Tissue
    • Grey and White Matter
    • Air Cavities
    • Frontal Sinus with Air Gaps
  • Adult Torso
    • Spine
    • Ribcage
    • Shoulders
    • Clavicles
    • Pelvis
    • Trachea
    • Heart
    • Lungs with Bronchi (Air Ducts with Blood Vessels)
    • Diaphragm
    • Liver (with Ligaments & Bile Ducts)
    • Gallbladder
    • Stomach
    • Kidneys
    • Spleen
    • Pancreas
    • Large and Small Intestines
    • Bladder
    • Prostate
  • Adult Arms
    • Major Muscles
    • Humerus
    • Elbow Joints
    • Radius
    • Ulna
    • Wrist
    • Fingers
  • Adult Legs
    • Major Muscles
    • Femur
    • Knee Joints
    • Tibia
    • Fibula
    • Foot
    • Toes
  • Transparent or Skin-Mimicking Appearance
Your order will include:
  • Adult Full Body Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
Brochure
manual
Assembly Instructions
Phantom Dimensions and Weight:
  • Size: 69 In (approx.)
  • Weight: 155 Lbs (approx.)
Shipping Dimensions and Weight:
  • Size: 46 x 36 x 18 In (approx.)
  • Weight: 199 Lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

X-Ray Scans

*/ These X-Ray scans were obtained with a Control-X machine and a VXvue (DR plate) from our product, Adult Full Body (with Muscles) for X-Ray CT, MRI (TPS-FB-A02). These are served as an example to refer to the imaging quality of this phantom; the standard Full body phantom (TPS-FB-A01) will not have muscles in the arms and legs. If you have any questions related to these, please Contact Us /*

CT Scans

Ultrasound Scans

*/ These X-Ray scans, CT scans and MRI scans were obtained from,Adult Full Body (with Muscles) for X-Ray CT, MRI( TPS-FB-A02). These are served as an example to refer to the imaging quality of this phantom; the standard Full body phantom (TPS-FB-A01) will not have muscles in the arms and legs. If you have any questions related to these, please Contact Us /*

Design of the Phantom:

Front view - Upper

Front View - Mid

Front View - Legd

Top View

Animation

Disclaimer: The phantom displayed on this page is a synthetically fabricated training simulator. While it has been engineered to mimic the anatomy of an adult male for medical imaging, it is not meant to replace a live person and may have certain limitations in its capabilities. Unlike an actual human however, the phantom will not be harmed or deteriorated due to repeated radiation. It is designed for easy use by radiologists or students with minimal supervision. The phantom presents a safe alternative to using cadavers or volunteers. This makes it a sustainable, ethical choice for the early stages of research and education.

Please review the design, description, and properties carefully before purchasing the model. Only manufacturing defects will be covered under two years of the standard warranty. For more details, specific questions or concerns, please Contact Us.

Download a PDF with product details

Adult Full Human Body Phantom (with Muscles) for X-Ray, CT Scan and Ultrasound

Phantom Dimensions and Weight:
  • Size: 69 In (approx.)
  • Weight: 123 Lbs (approx.)
Shipping Dimensions and Weight:
  • Size: 48 x 36 x 25 In (approx.)
  • Weight: 220 Lbs (approx.)
Materials Used
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

Tissue Properties

Type of Tissue Sound Velocity[m/s] Density [g/cm3] Attenuation Measured at 2.25 MHz [dB/cm] Hardness [Shore OO] T2 [ms] Speckles
Organs with Speckles (liver, kidneys, etc.) 1435 ± 10 0.99 1.0 ± 0.2 20 70 VARIABLE
Organs without Speckles (stomach, intestines, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 NO
Body Tissue 1410 ± 10 1.00 1.2 ± 0.2 30 65 LOW
Tumor Feature (Optional) 1400 ± 10 1.01 1.2 ± 0.2 30 65 YES
Cortical Bone 3000 ± 30 2.31 6.4 ± 0.3 N/A N/A N/A
Trabecular Bone            2800 ± 50 2.03 21 ± 2 N/A N/A N/A
Brain Matter  1400 ± 10 0.99 1.0 ± 0.2 20 70 YES
Brain White Matter 1400 ± 10 1.01 1.3 ± 0.2 35 60 YES
Muscle Tissue 1400 ± 10 1.01 1.3 ± 0.2 35 60 YES

Thermal Properties of our Bone-Mimicking Material

Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s

HU Values of the Tissue Mimicking-Materials

HU Value (Average) Tissue Type
Body Tissue -25
Brain Tissue -25
Trabecular Bone 800
Cortical Bone 1300
Aorta 40
Vena Cava 40
Trachea 80 (Tissue Part), -1000 (Air Filled Part)
Lungs -850
Diaphragm 80
Pancreas 110
Tissue Type HU Value (Average)
Spleen 110
Kidneys 110
Bladder 35
Rectum Wall 100
Sigmoid Colon Wall 100
Heart 40
Liver 110
Gallbladder 35
Stomach -850
Large and Small Intestines 80 (Tissue Part), -1000 (Air Filled Part)

X-ray Settings:

Anatomy  Skull Ribs/ Chest T Spine C spine L Spine Abdomen Pelvis Femur Tib/Fib Knee Foot Scap Y Humerus Hand/ Wrist
Projection AP LAT AP/ PA AP LAT AP AP LAT LAT AP AP LAT AP LAT AP AP PA/ Oblique LAT AP/ Oblique LAT
E.I. 375 286 412 412 782 165 448 862 862 650 584 892 551 342 690 293 631 257 556 155
D.I. -0.2 -1.4 0.6 0.6 2.6 -3.8 1 2.4 2.4 1.8 1.7 3.6 0.4 -1.6 1.4 -2.3 1 -2.9 0.5 -3.6
kVp 85 75 80 80 85 75 88 90 85 85 80 80 74 74 75 80 58 80 64 84
mAs 20 8 5 20 56 6.3 45 63 25 25 16 14 2.5 2.5 5.6 8 2 5.6 2 10
