Adult Full Human Body Phantom (with Muscles) for X-Ray, CT Scan and Ultrasound
0.0 lb
All pictures shown are for illustration purposes only. The actual product appearance may vary.
Adult Full Human Body Phantom (with Muscles) for X-Ray, CT Scan and Ultrasound
Item # TPS-FB-A04
$38,612.00
$39,400.00
You save $788.00
Ships in 12-16 weeks
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(

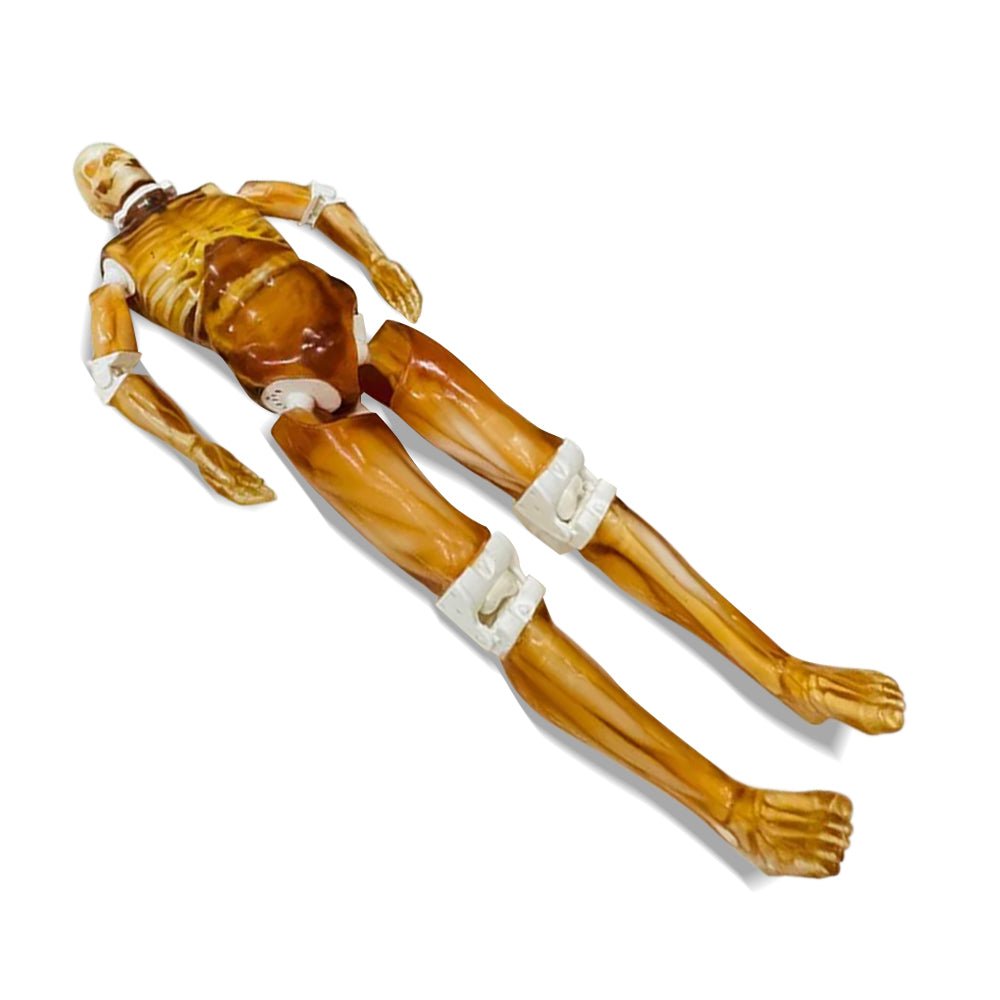

Adult Full Human Body Phantom (with Muscles) for X-Ray, CT Scan and Ultrasound

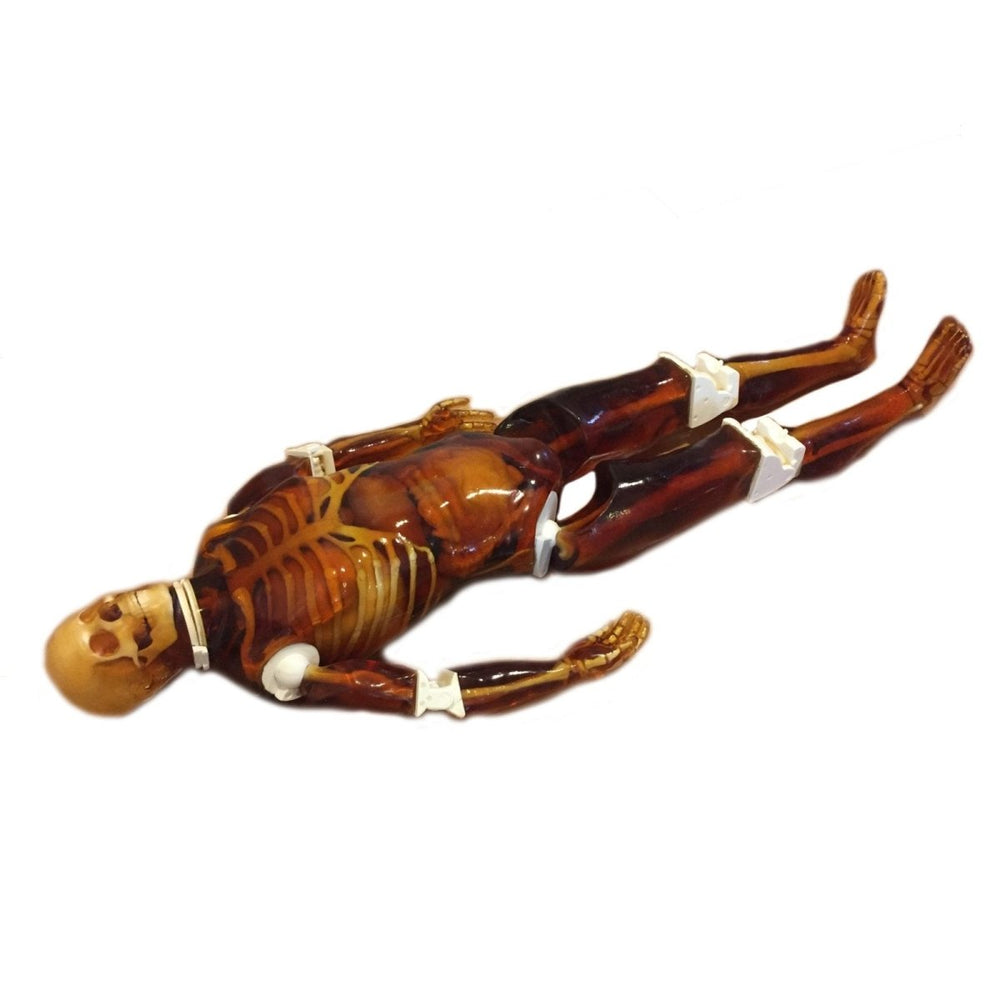

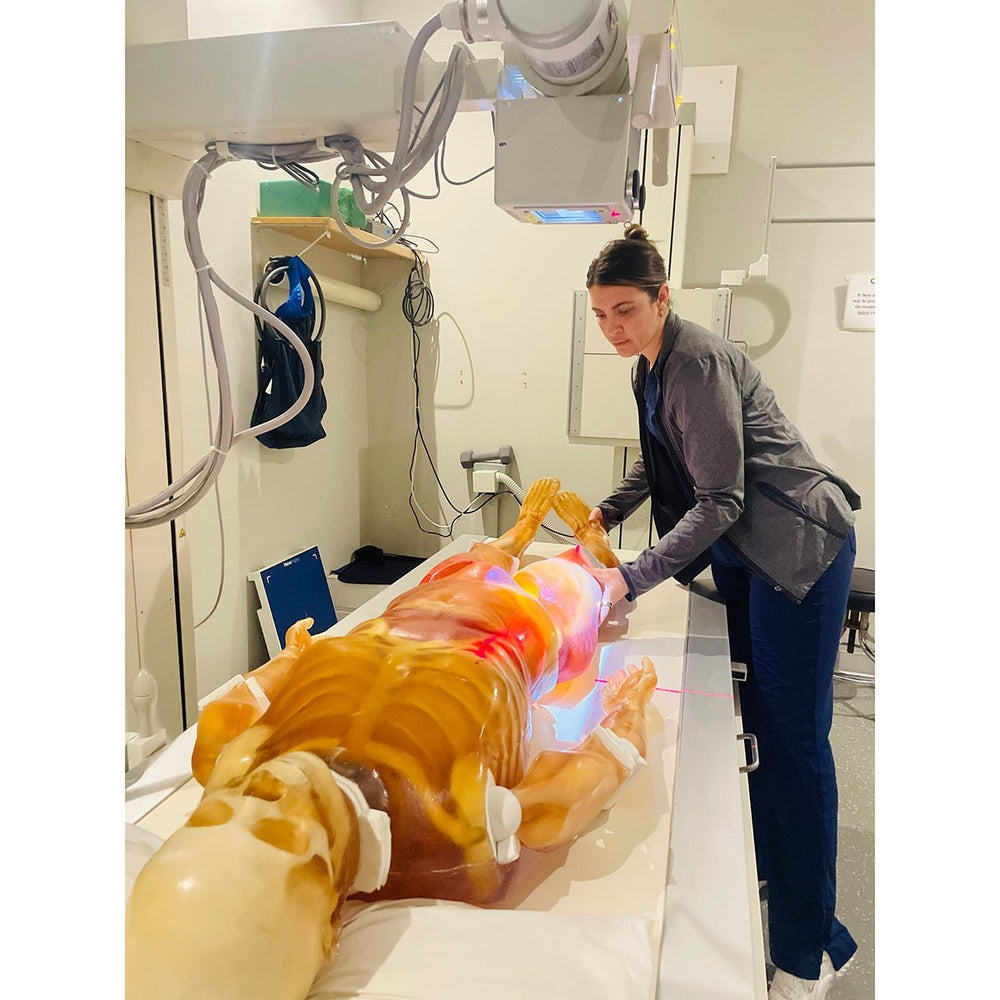

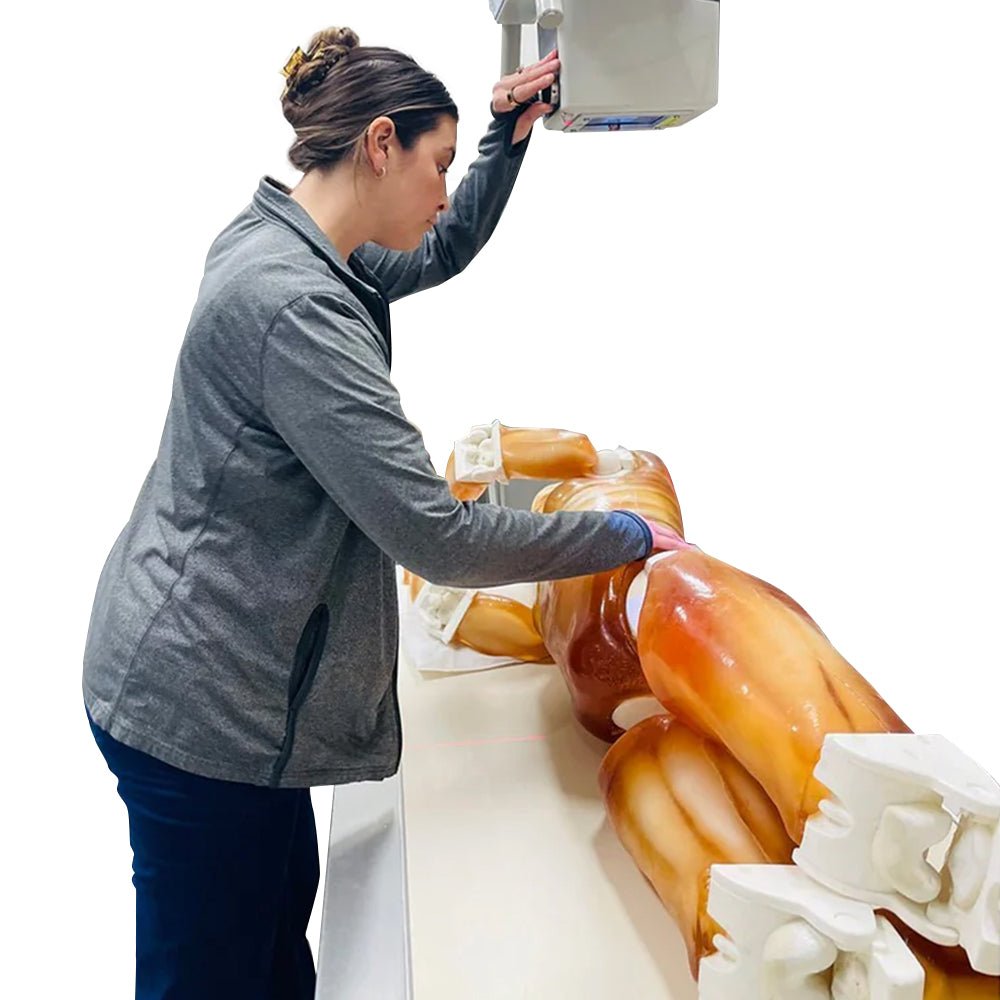

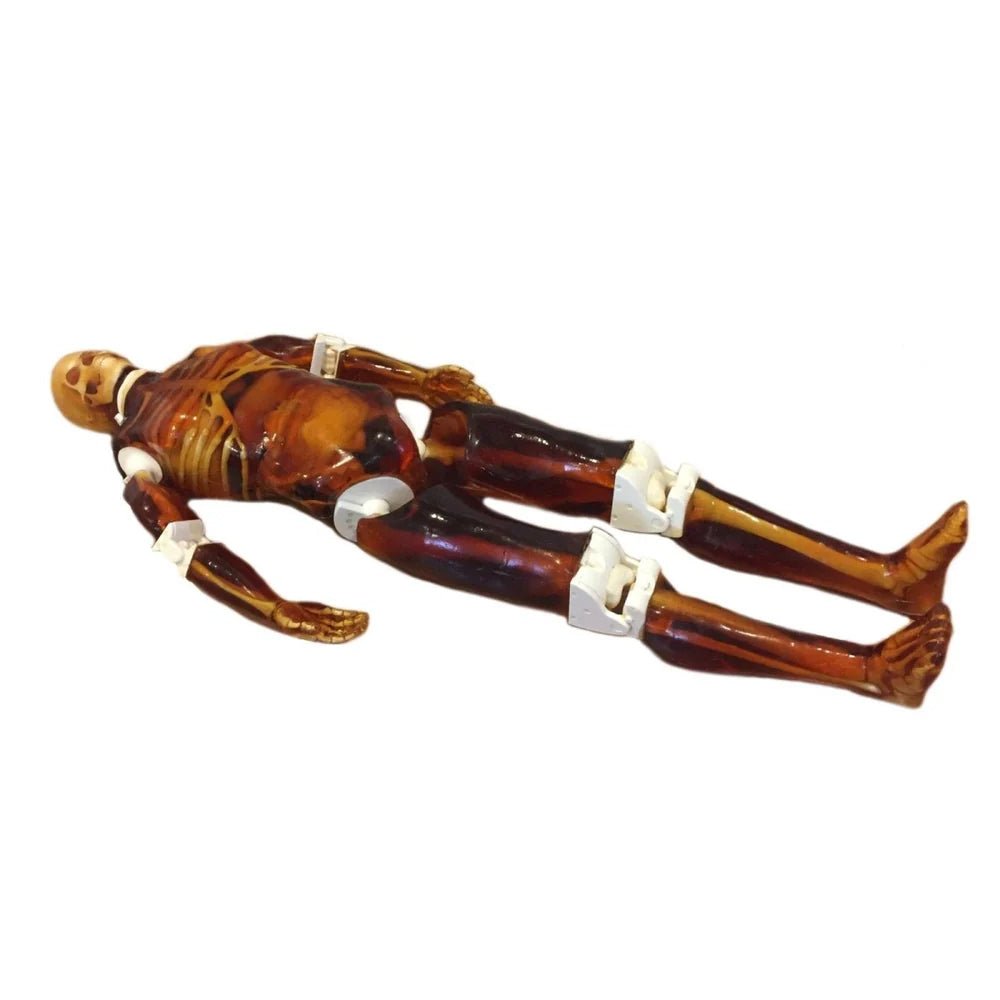

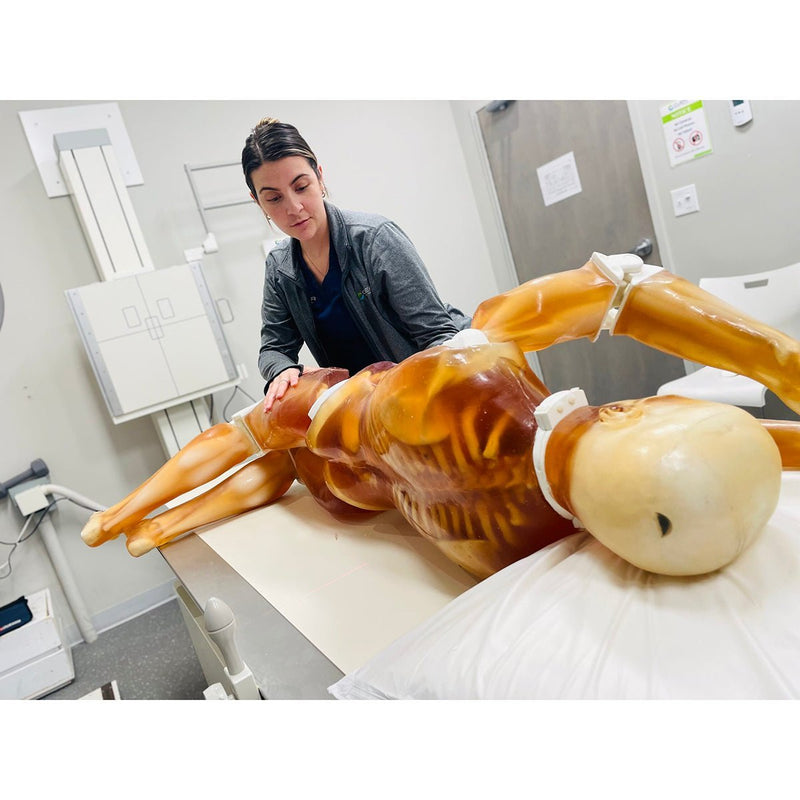

The Adult Full Body Phantom with Muscles is a versatile training product compatible with X-Ray/CT and Ultrasound. It
is designed to mimic the major muscle structures in the arms and legs. The phantom is primarily used for providing
hands-on experience with diagnostic imaging. The skeleton is made of individually cast bones with adjustable
properties, and the phantom can be customized with various pathologies. It is available in transparent or
skin-colored versions.
The Adult Full Body Phantom with Muscles is an X-Ray CT and US-compatible training product. Above other
functionality listed below, this phantom was specifically enhanced to mimic the major muscle structure of arms and
legs. The primary application of this phantom is hands-on experience with diagnostic imaging techniques and visual
evaluation to find optimal scanning conditions.
The model of this phantom is based on an adult male body that weighs about 70 kg (154 lb) and measures 172 cm (69
in) in height.
The skeleton is built from individually cast bones made from a patented synthetic material that has a realistic
three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular
project. Customizable with different pathologies (lesion, tumor, infection, abnormality) upon request. This
positioning phantom can be ordered in a translucent or skin-colored version.

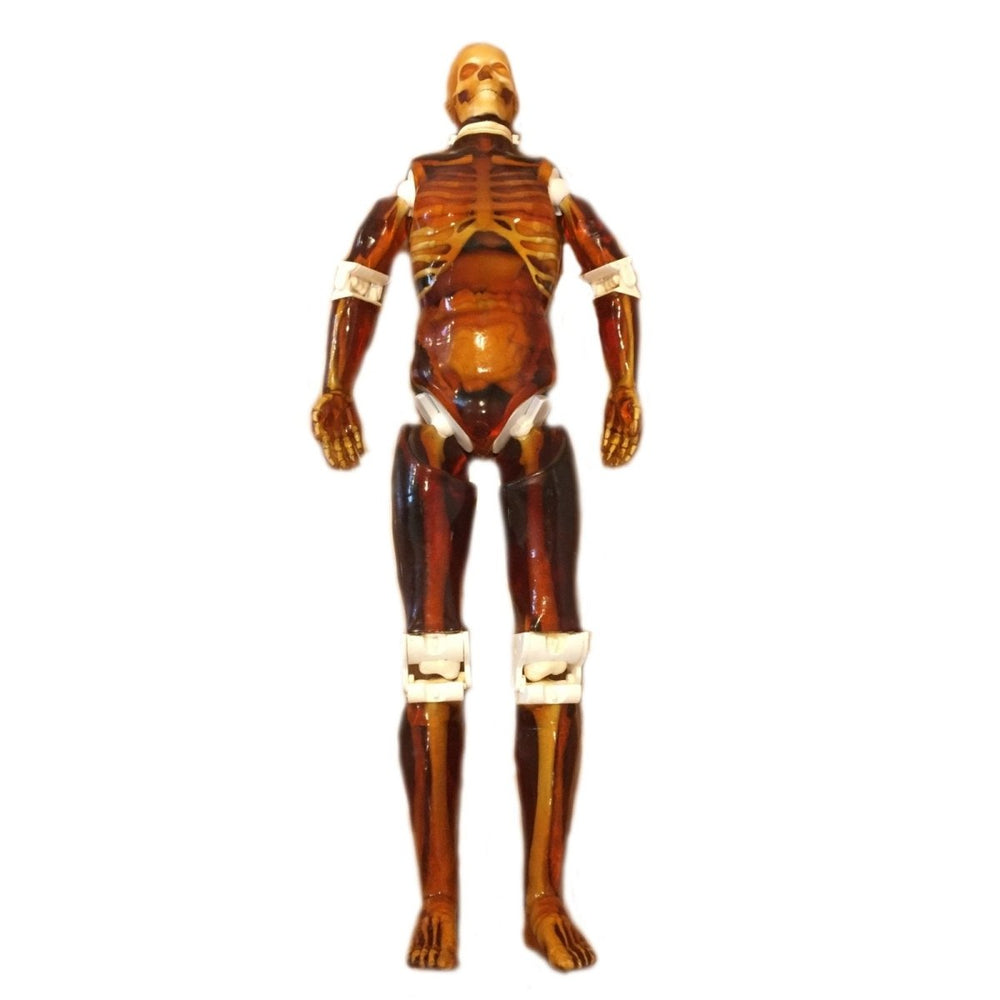

Anatomy
- Full Human Body (10 Parts)
- Realistic Body Tissue-Mimicking Material
- Rotatable Shoulders (360° Around and 180° Sideways)
- Movable Hip, Knee, and Elbow Joints
- Detachable Head, Torso, and Limbs
-

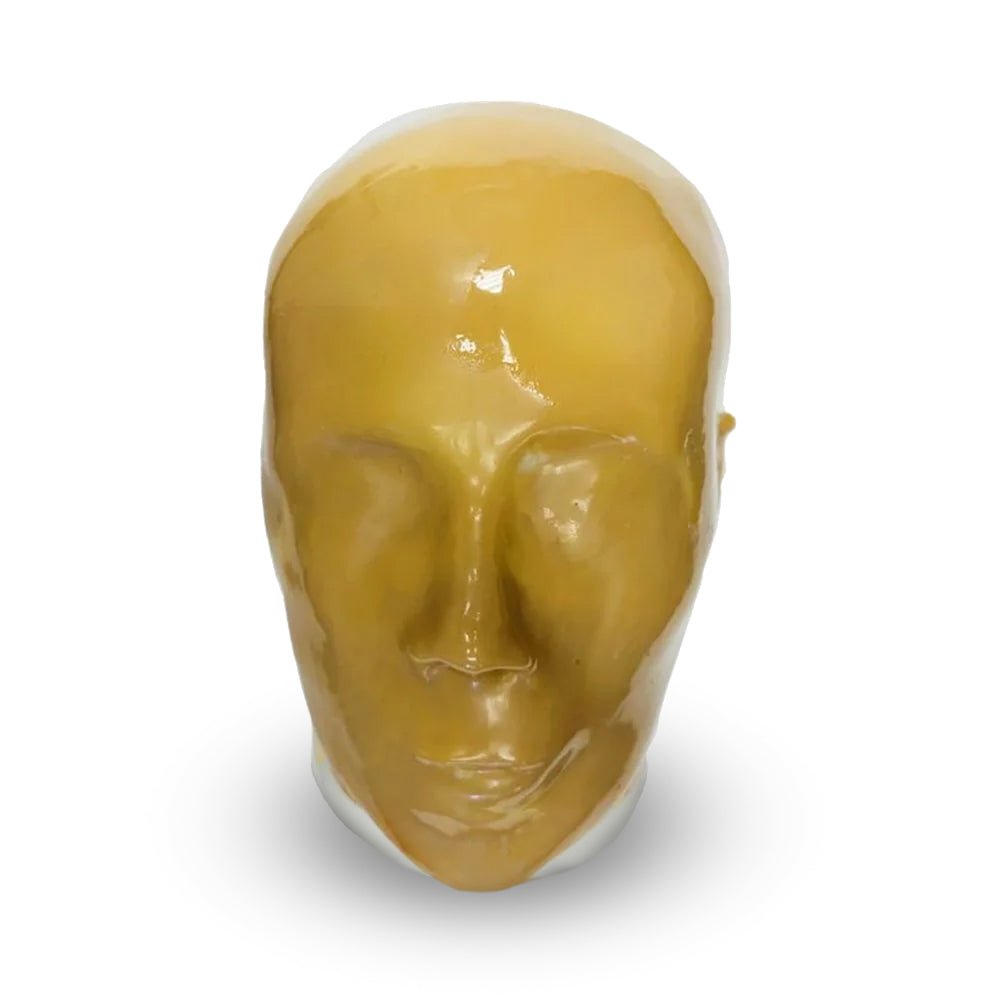

Adult Head
- Skull
- Brain
- Brain Tissue
- Grey and White Matter
- Air Cavities
- Frontal Sinus with Air Gaps
-
Adult Torso
- Spine
- Ribcage
- Shoulders
- Clavicles
- Pelvis
- Trachea
- Heart
- Lungs with Bronchi (Air Ducts with Blood Vessels)
- Diaphragm
- Liver (with Ligaments & Bile Ducts)
- Gallbladder
-
- Stomach
- Kidneys
- Spleen
- Pancreas
- Large and Small Intestines
- Bladder
- Prostate
-

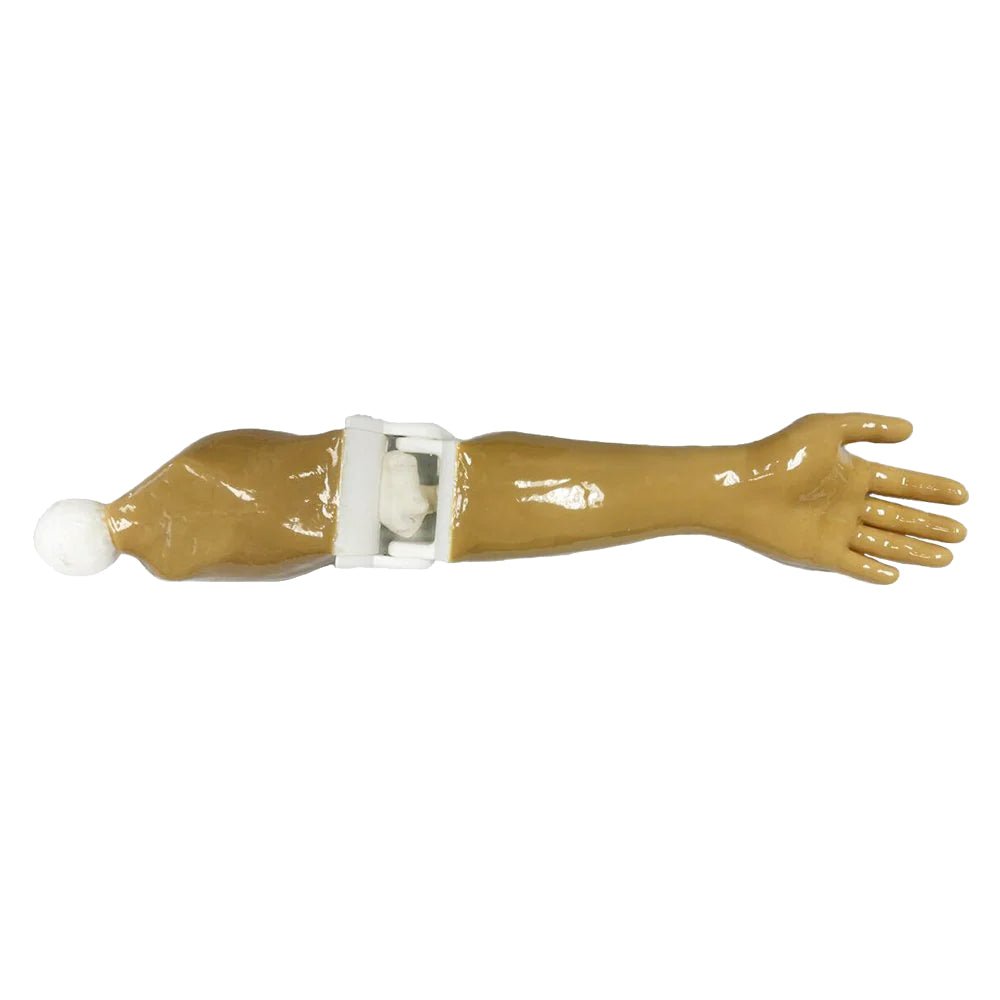

Adult Arms
- Major Muscles
- Humerus
- Elbow Joints
- Radius
- Ulna
- Wrist
- Fingers
-

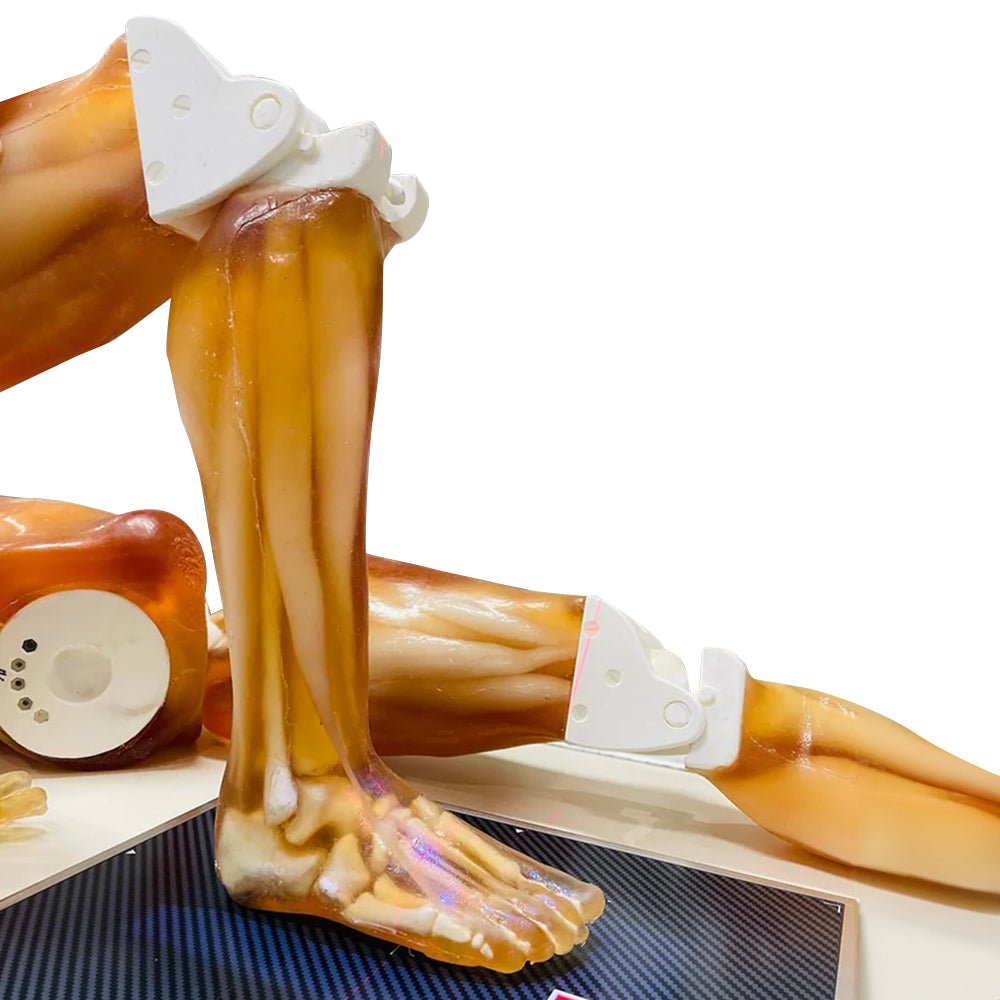

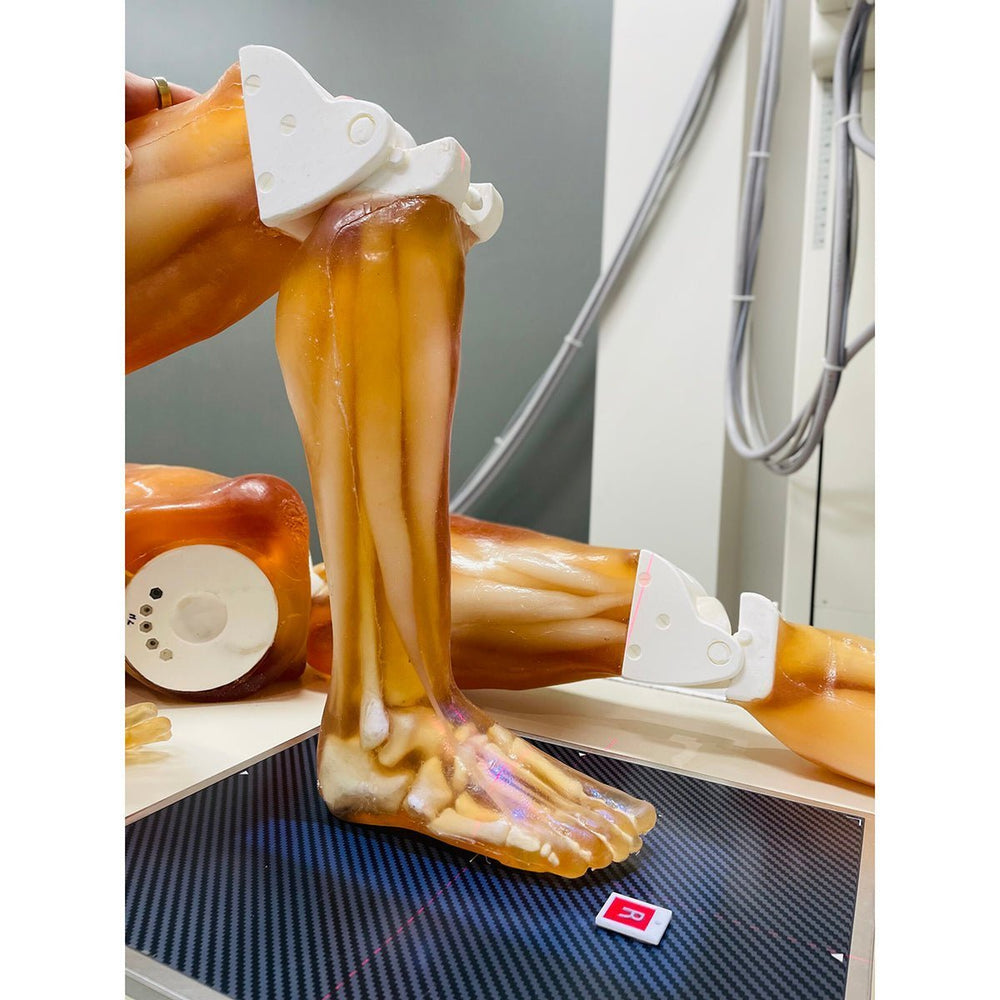

Adult Legs
- Major Muscles
- Femur
- Knee Joints
- Tibia
- Fibula
- Foot
- Toes

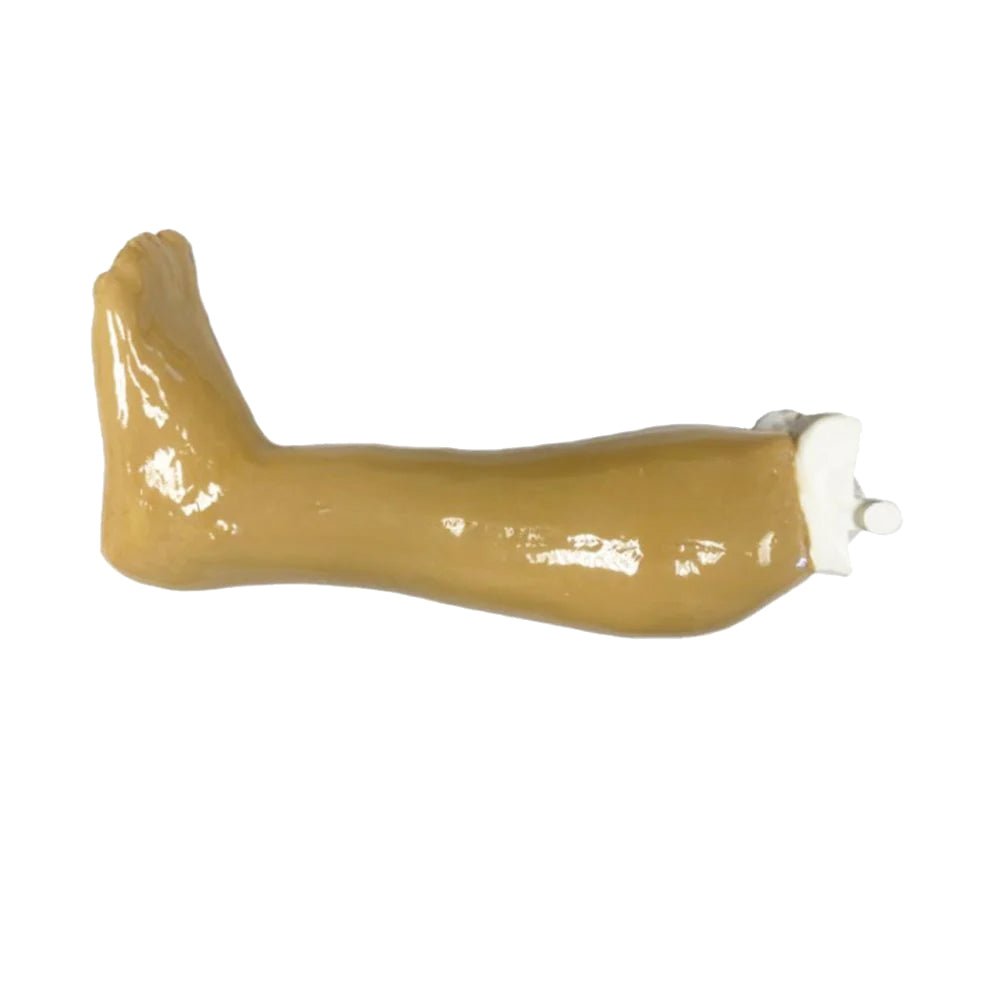

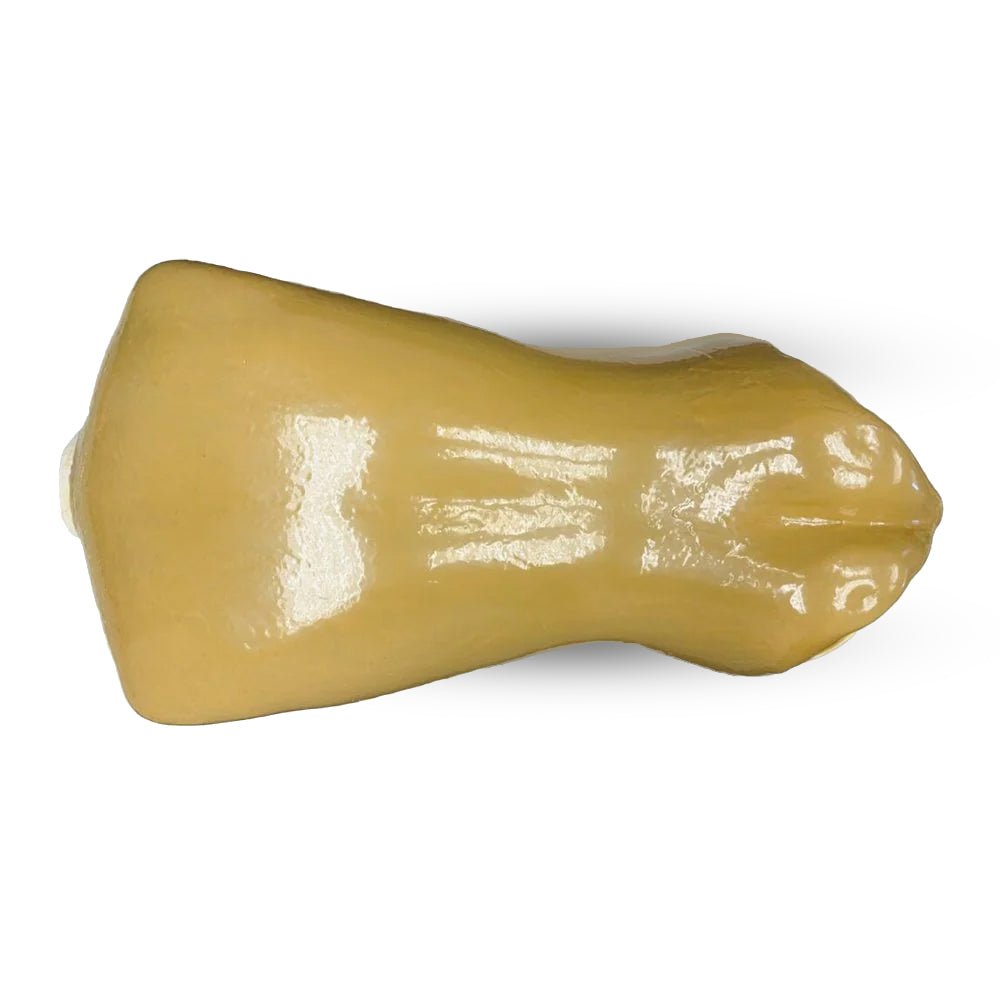

- Transparent or Skin-Mimicking Appearance
Your order will include:
- Adult Full Body Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Phantom Dimensions and Weight:
- Size: 69 In (approx.)
- Weight: 155 Lbs (approx.)
- Size: 46 x 36 x 18 In (approx.)
- Weight: 199 Lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

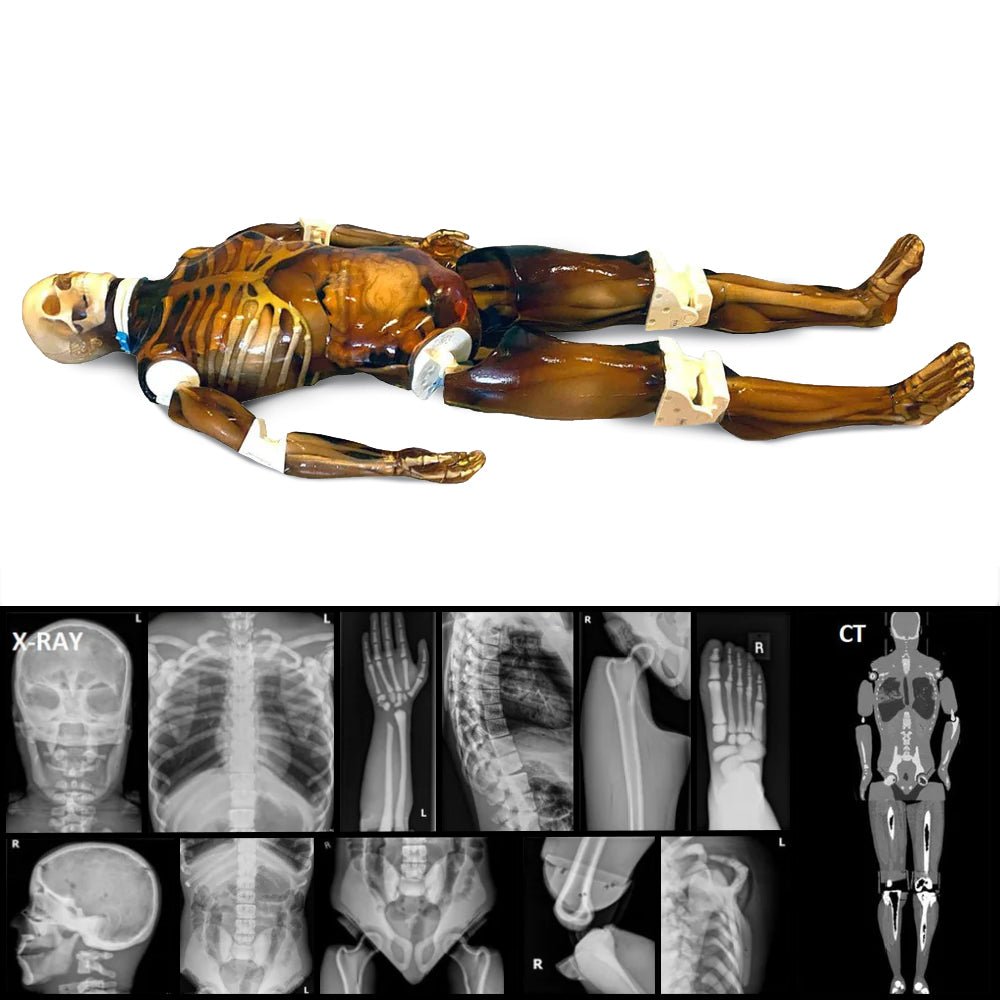

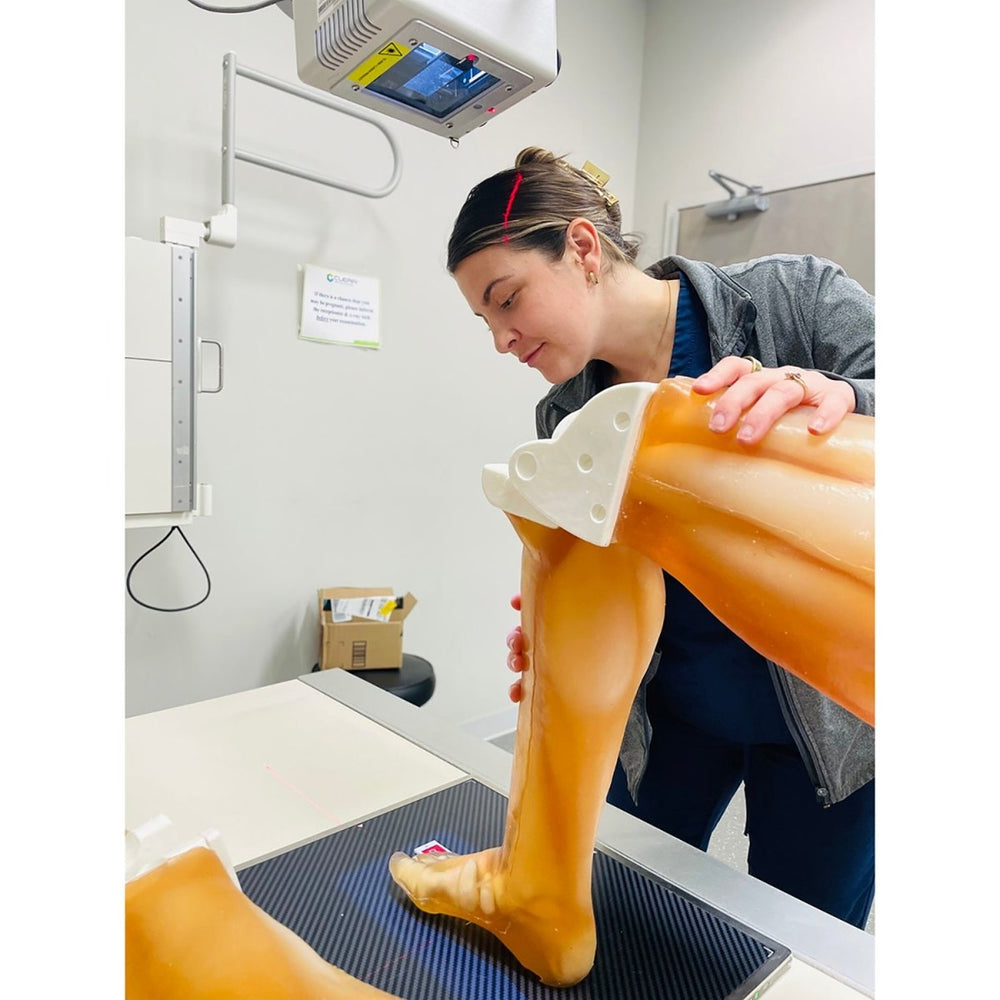

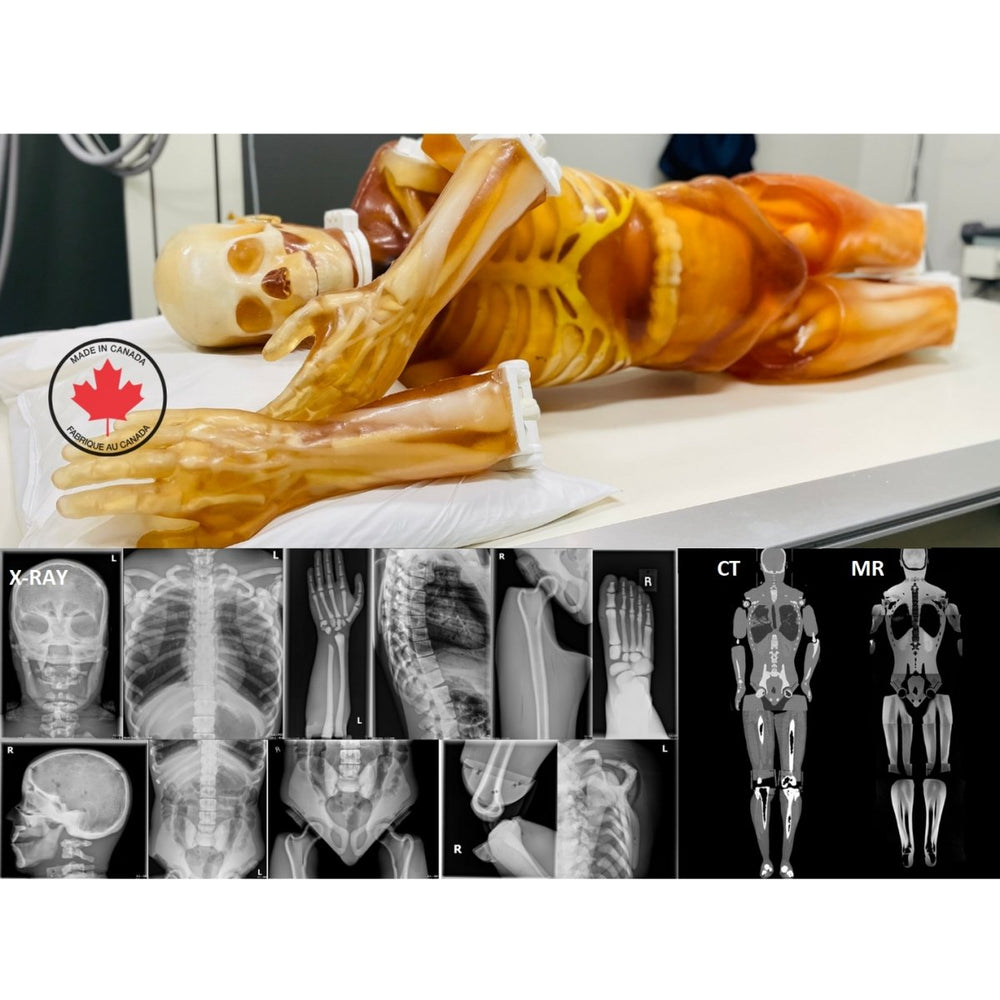

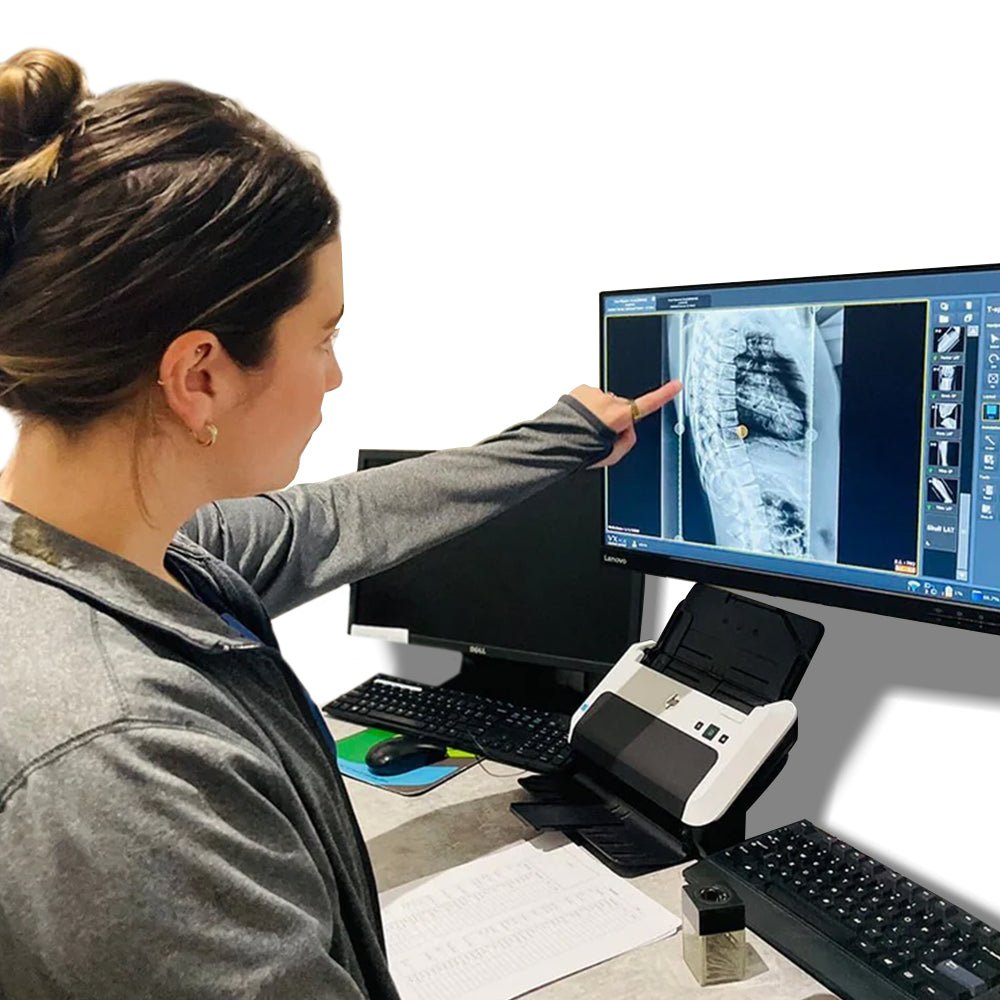

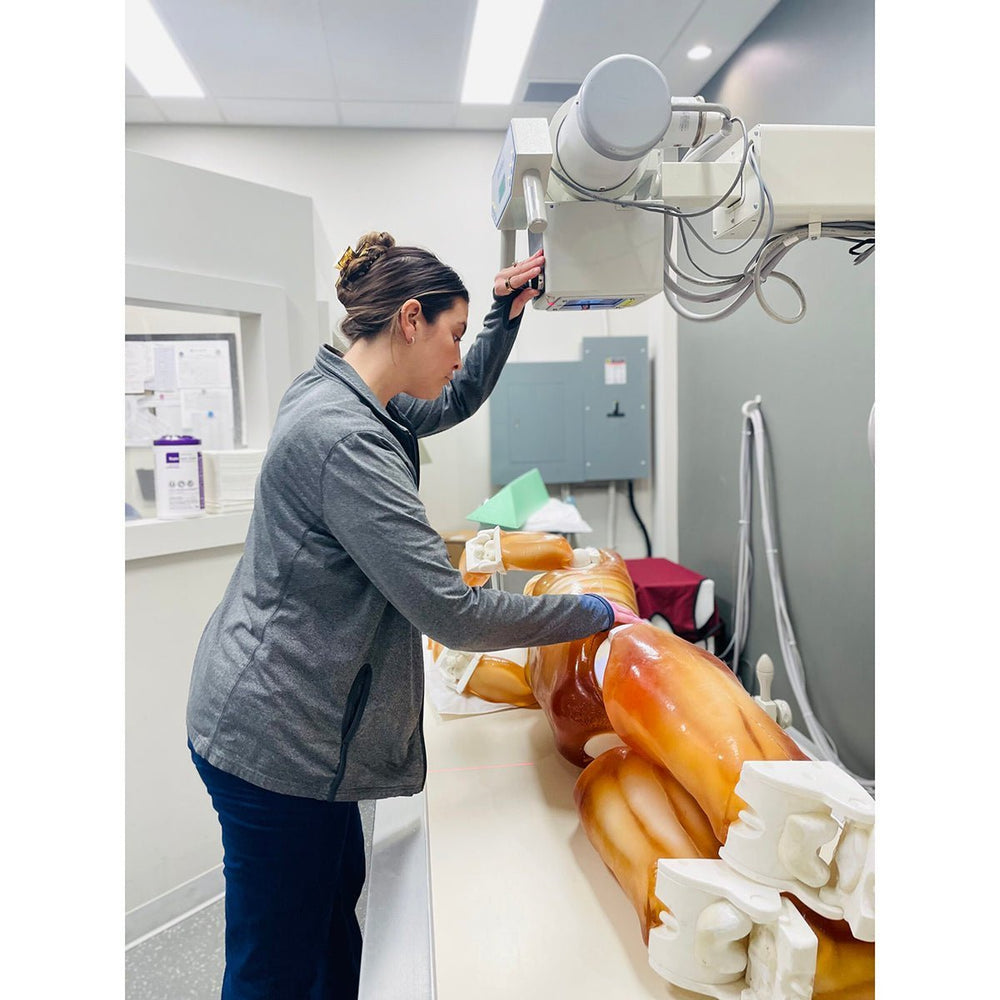

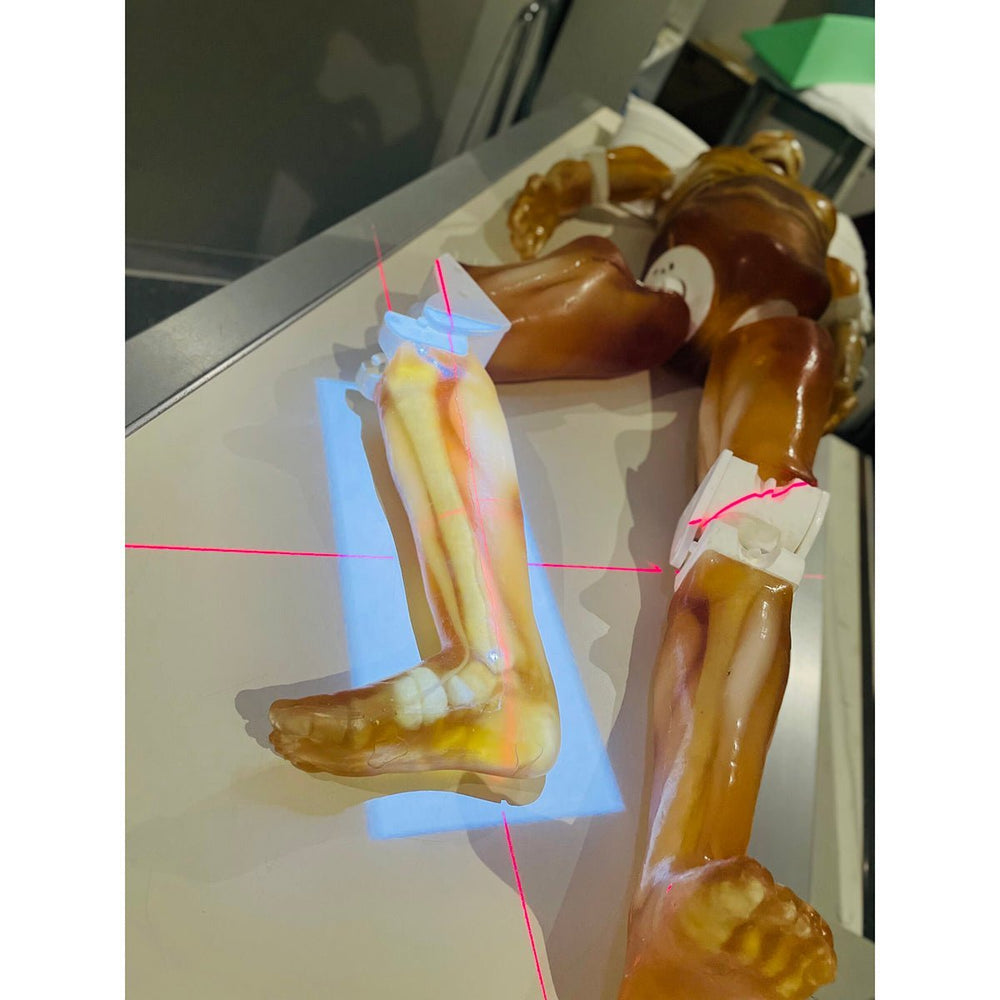

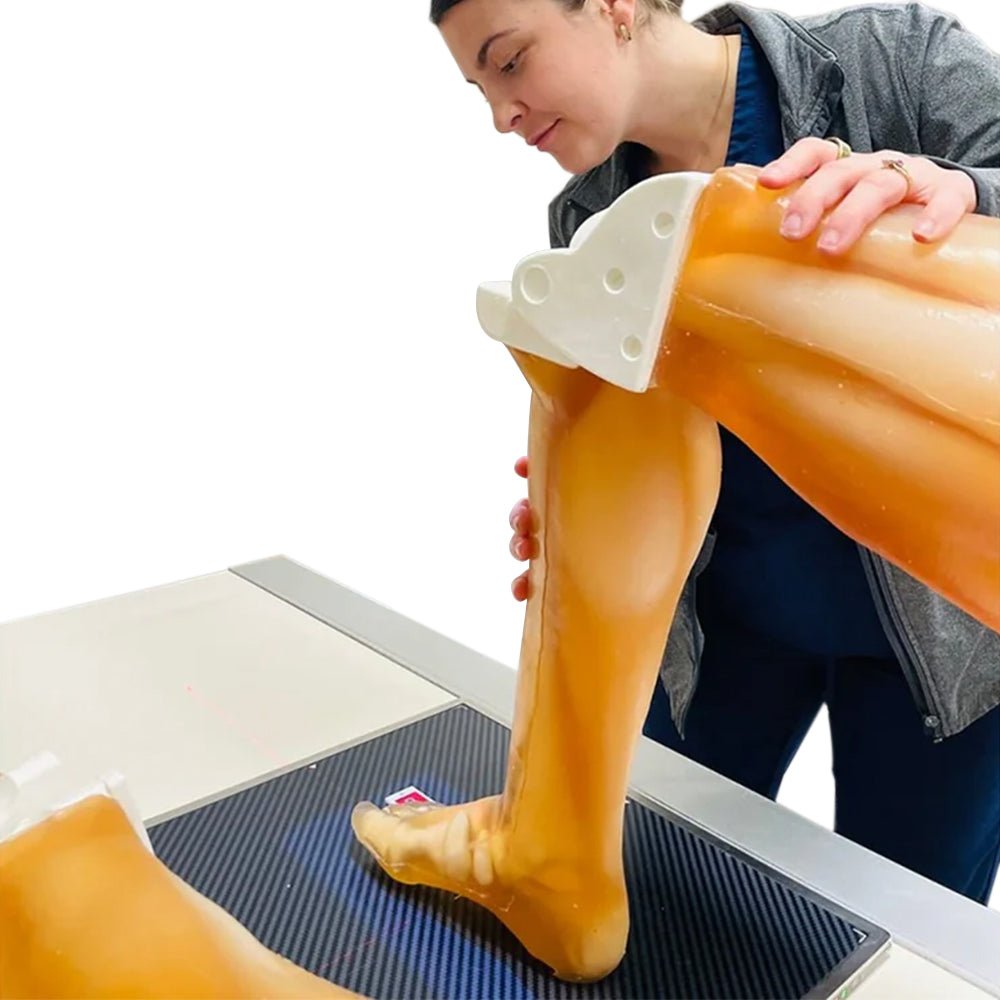

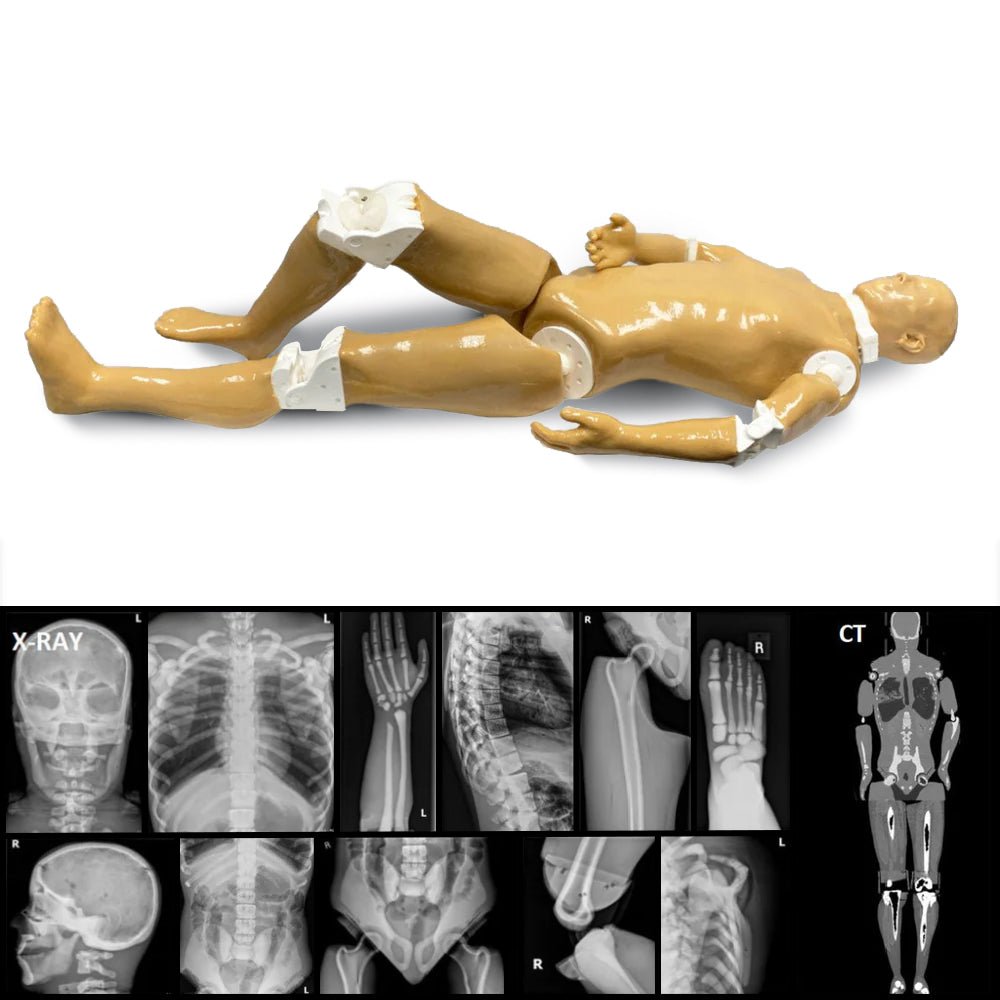

X-Ray Scans

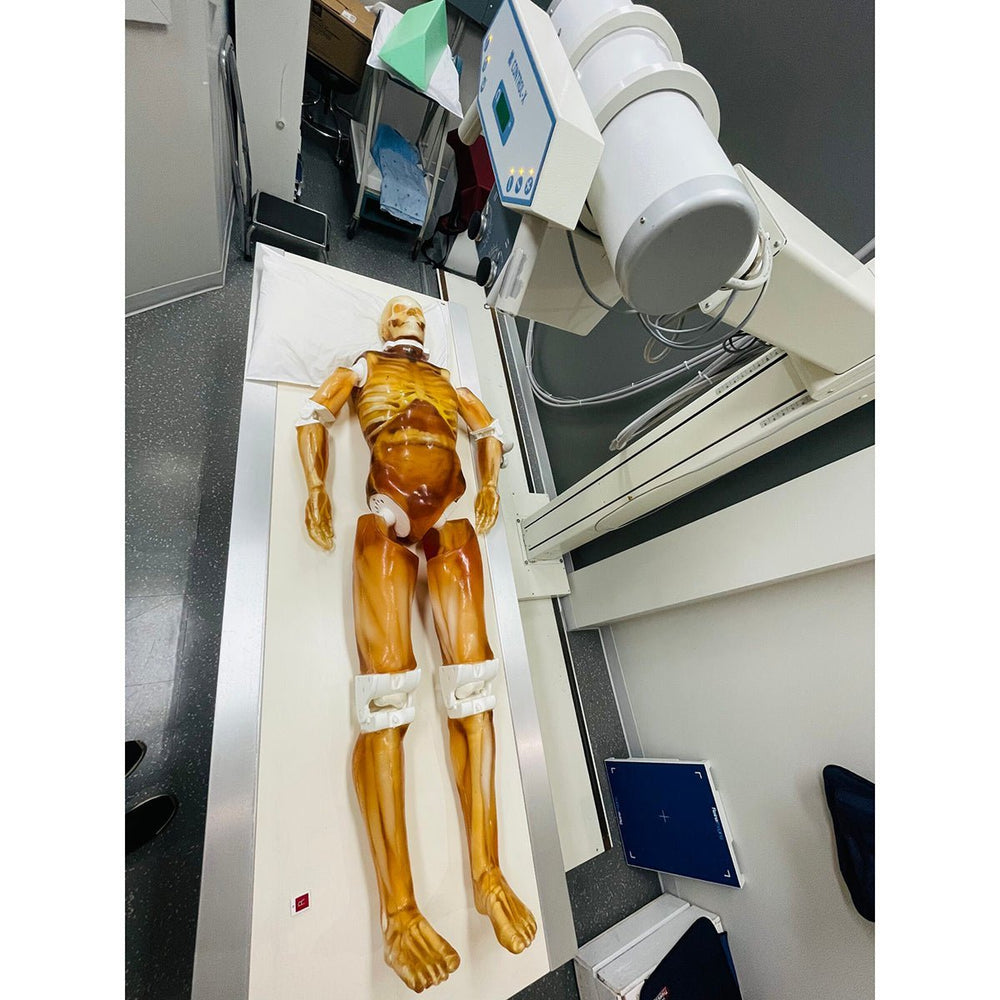

*/ These X-Ray scans were obtained with a Control-X machine and a VXvue (DR plate) from our product, Adult Full Body (with Muscles) for X-Ray CT, MRI (TPS-FB-A02). These are served as an example to refer to the imaging quality of this phantom; the standard Full body phantom (TPS-FB-A01) will not have muscles in the arms and legs. If you have any questions related to these, please Contact Us /*

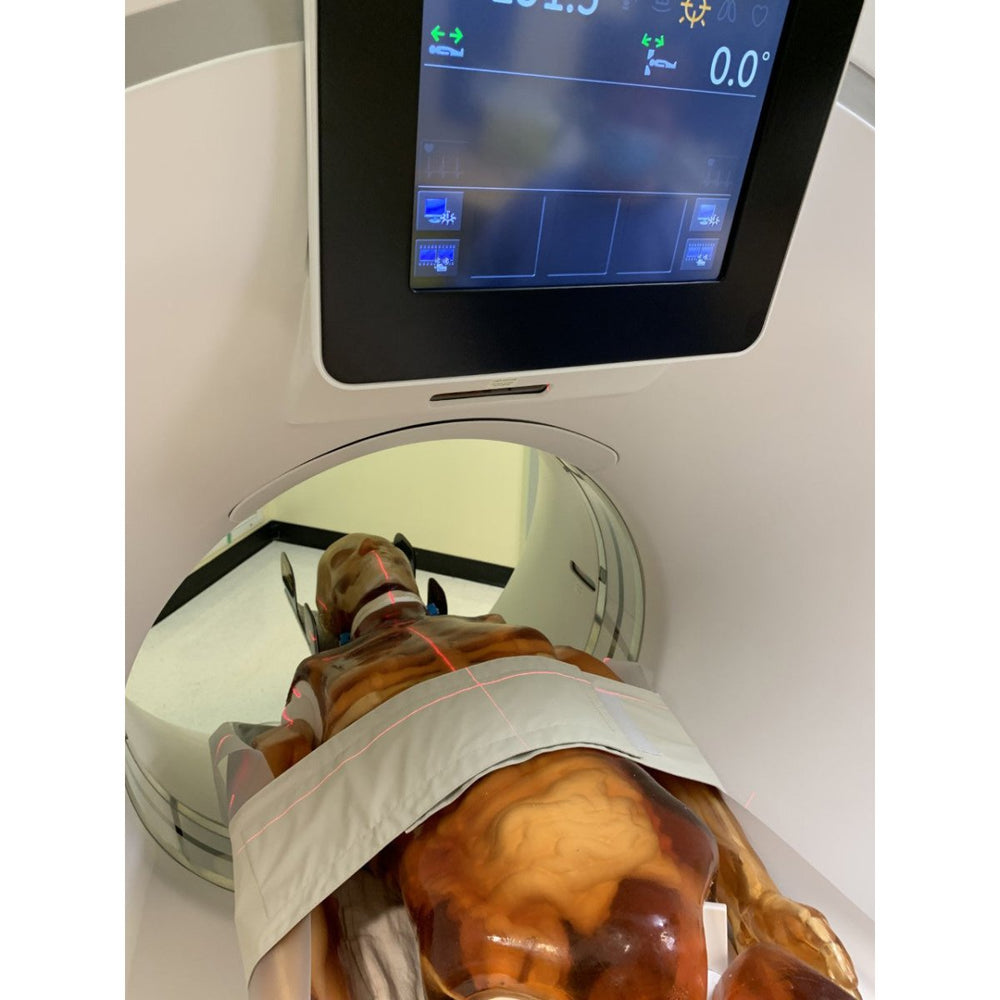

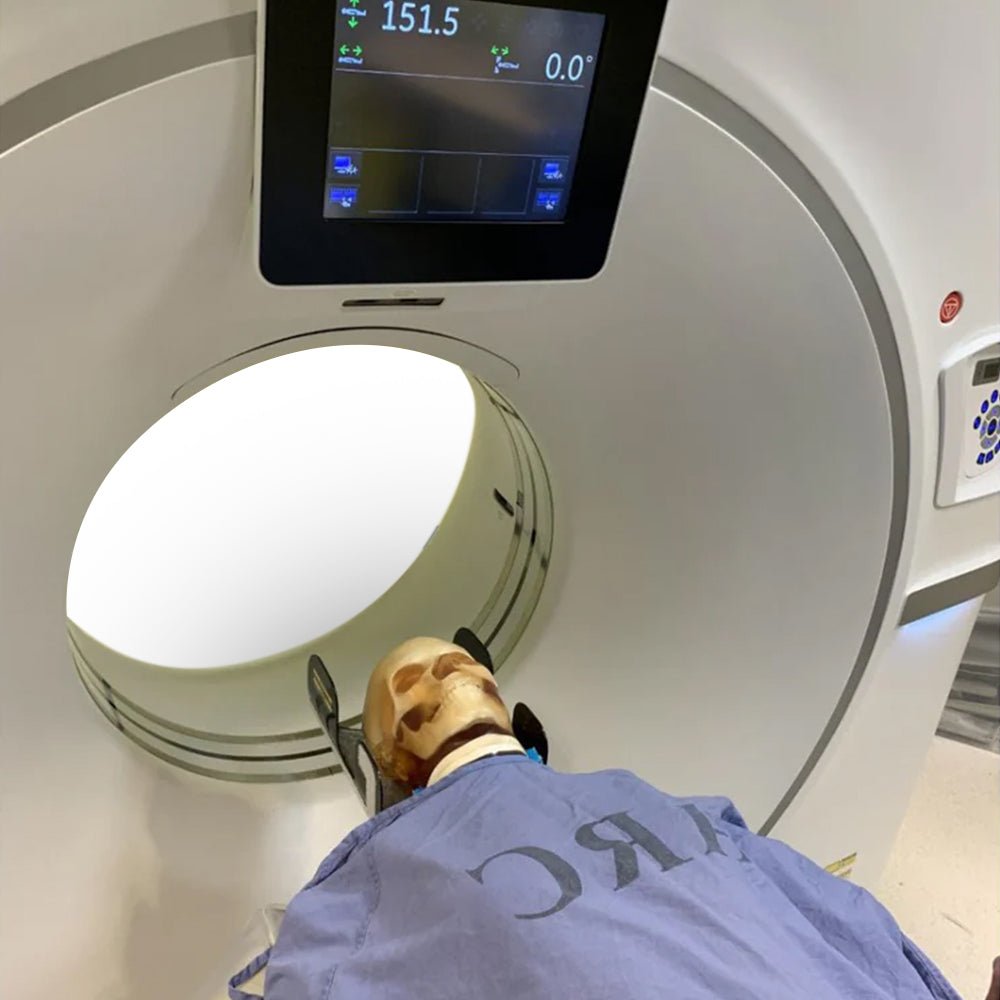

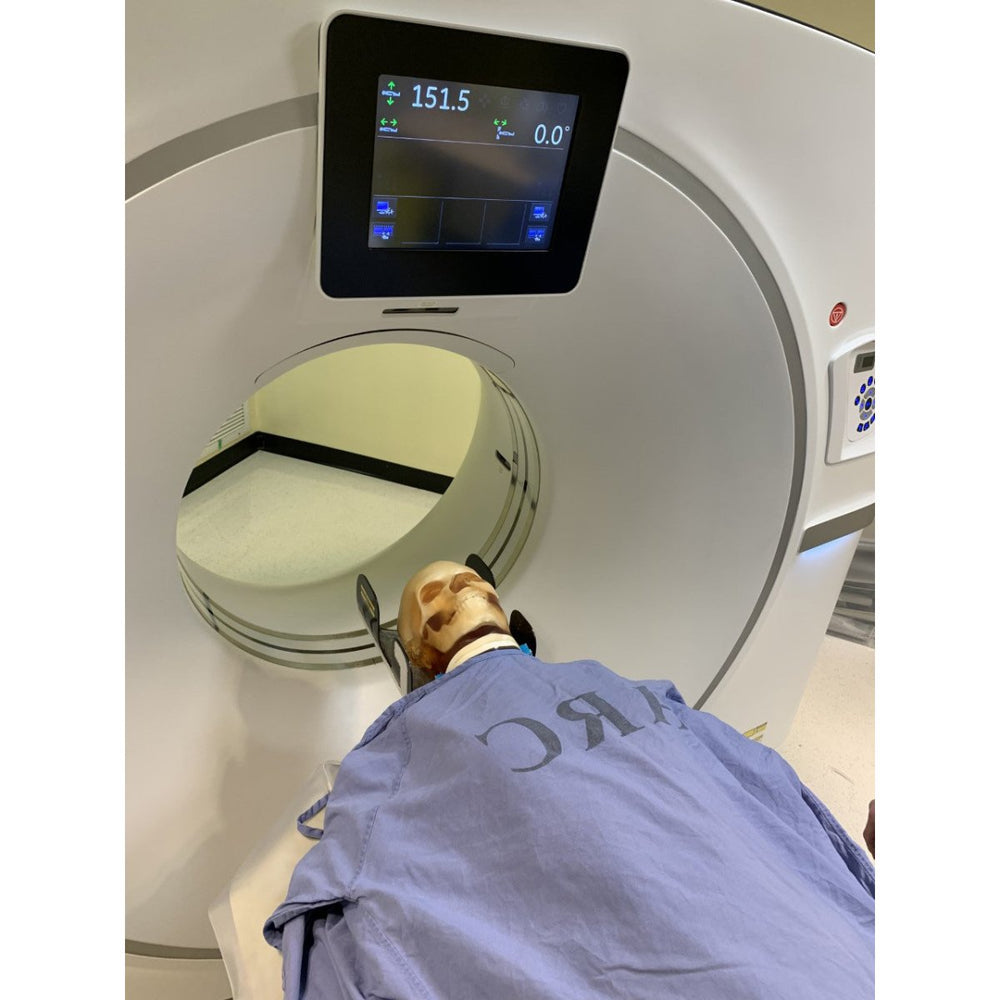

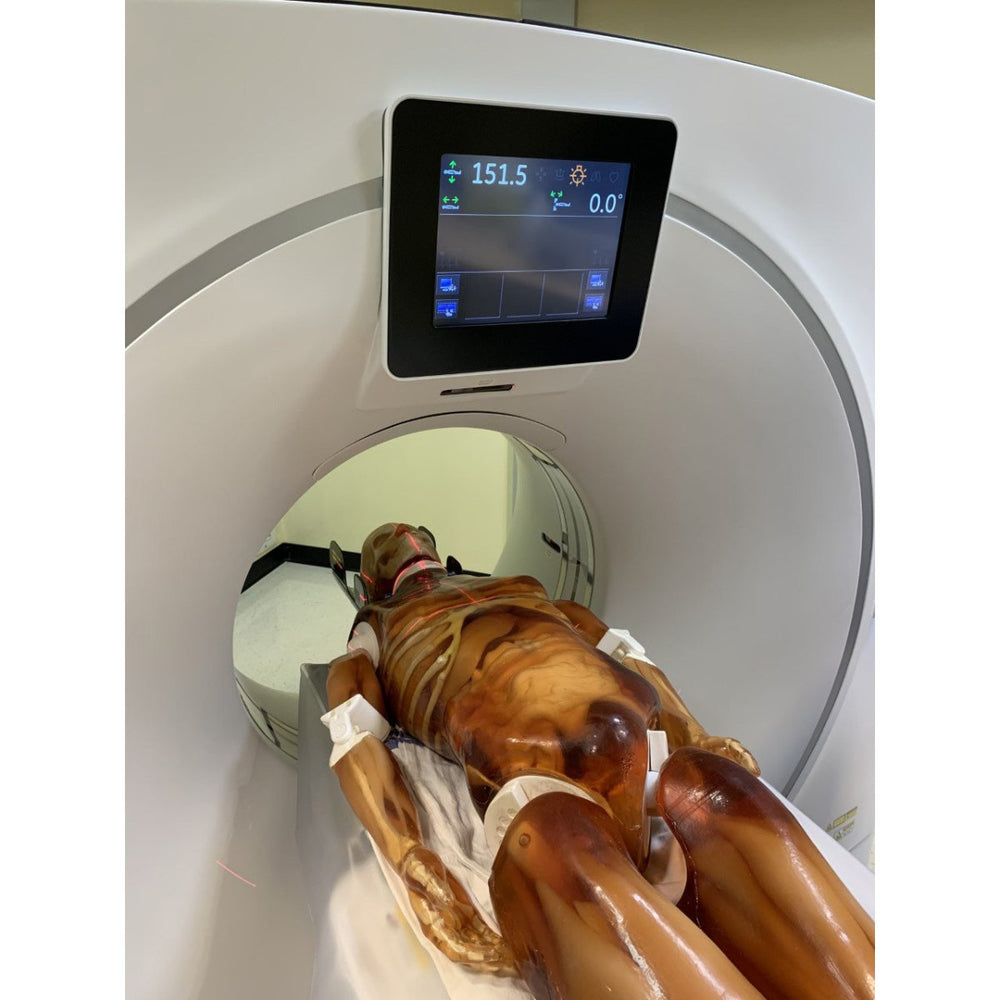

CT Scans

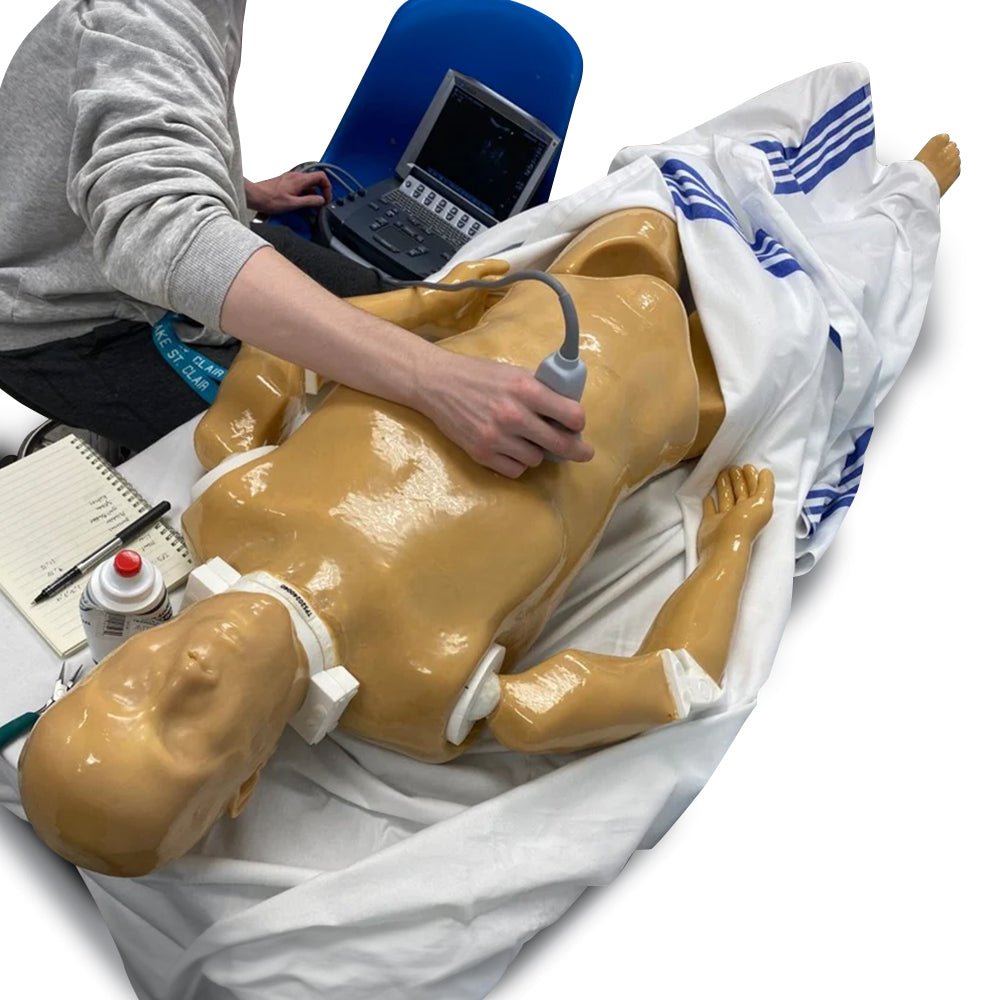

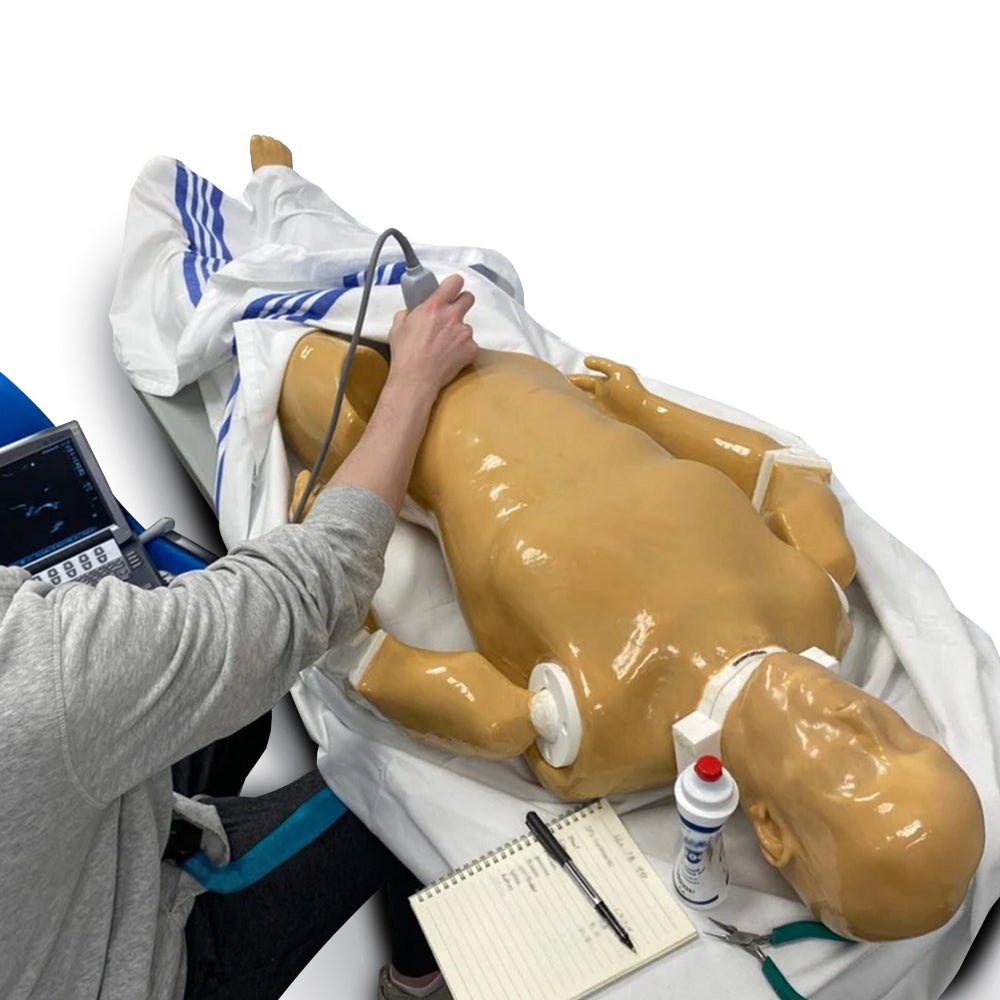

Ultrasound Scans
*/ These X-Ray scans, CT scans and MRI scans were obtained from,Adult Full Body (with Muscles) for X-Ray CT, MRI( TPS-FB-A02). These are served as an example to refer to the imaging quality of this phantom; the standard Full body phantom (TPS-FB-A01) will not have muscles in the arms and legs. If you have any questions related to these, please Contact Us /*
Design of the Phantom:
Front view - Upper
Front View - Mid
Front View - Legd
Top View
Animation
Disclaimer:
The phantom displayed on this page is a synthetically fabricated training simulator. While it has been engineered to
mimic the anatomy of an adult male for medical imaging, it is not meant to replace a live person and may have
certain limitations in its capabilities.
Unlike an actual human however, the phantom will not be harmed or deteriorated due to repeated radiation. It is
designed for easy use by radiologists or students with minimal supervision. The phantom presents a safe alternative
to using cadavers or volunteers. This makes it a sustainable, ethical choice for the early stages of research and
education.
Please review the design, description, and properties
carefully before purchasing the model. Only manufacturing defects will be covered under two years of the standard
warranty.
For more details, specific questions or
concerns, please Contact Us.
Adult Full Human Body Phantom (with Muscles) for X-Ray, CT Scan and Ultrasound
Phantom Dimensions and Weight:- Size: 69 In (approx.)
- Weight: 155 Lbs (approx.)
- Size: 46 x 36 x 18 In (approx.)
- Weight: 199 Lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
| Anatomy | Projection | E.I. | D.I. | kVp | mAs |
|---|---|---|---|---|---|
| Skull | AP | 375 | -0.2 | 85 | 20 |
| Lateral | 286 | -1.4 | 75 | 8 | |
| Ribs/Chest | AP/PA | 412 | 0.6 | 80 | 5 |
| Thoracic Spine | AP | 412 | 0.6 | 80 | 20 |
| Lateral | 782 | 2.6 | 85 | 56 | |
| C spine | AP | 165 | -3.8 | 75 | 6.3 |
| Lumbar Spine | AP | 448 | 1 | 88 | 45 |
| Lateral | 862 | 2.4 | 90 | 63 | |
| Abdomen | Lateral | 862 | 2.4 | 85 | 25 |
| Pelvis | AP | 650 | 1.8 | 85 | 25 |
| Femur | AP | 584 | 1.7 | 80 | 16 |
| Lateral | 892 | 3.6 | 80 | 14 | |
| Tib/Fib | AP | 551 | 0.4 | 74 | 2.5 |
| Lateral | 342 | -1.6 | 74 | 2.5 | |
| Knee | AP | 690 | 1.4 | 75 | 5.6 |
| AP | 293 | -2.3 | 80 | 8 | |
| Foot | PA/Oblique | 631 | 1 | 58 | 2 |
| ScapY | Lateral | 257 | -2.9 | 80 | 5.6 |
| Humerus | AP/Oblique | 556 | 0.5 | 64 | 2 |
| Hand/Wrist | Lateral | 155 | -3.6 | 84 | 10 |
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature (Optional) | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Brain White Matter | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
| Muscle Tissue | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| S.No. | Tissue Type | HU Value (Average) |
|---|---|---|
| 1 | Body Tissue | -25 |
| 2 | Brain Tissue | -25 |
| 3 | Trabecular Bone | 800 |
| 4 | Cortical Bone | 1300 |
| 5 | Aorta | 40 |
| 6 | Vena Cava | 40 |
| 7 | Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| 8 | Pancreas | 110 |
| 9 | Spleen | 110 |
| 10 | Kidneys | 110 |
| 11 | Bladder | 35 |
| 12 | Rectum Wall | 100 |
| 13 | Sigmoid Colon Wall | 100 |
| 14 | Heart | 40 |
| 15 | Liver | 110 |
| 16 | Gallbladder | 35 |
