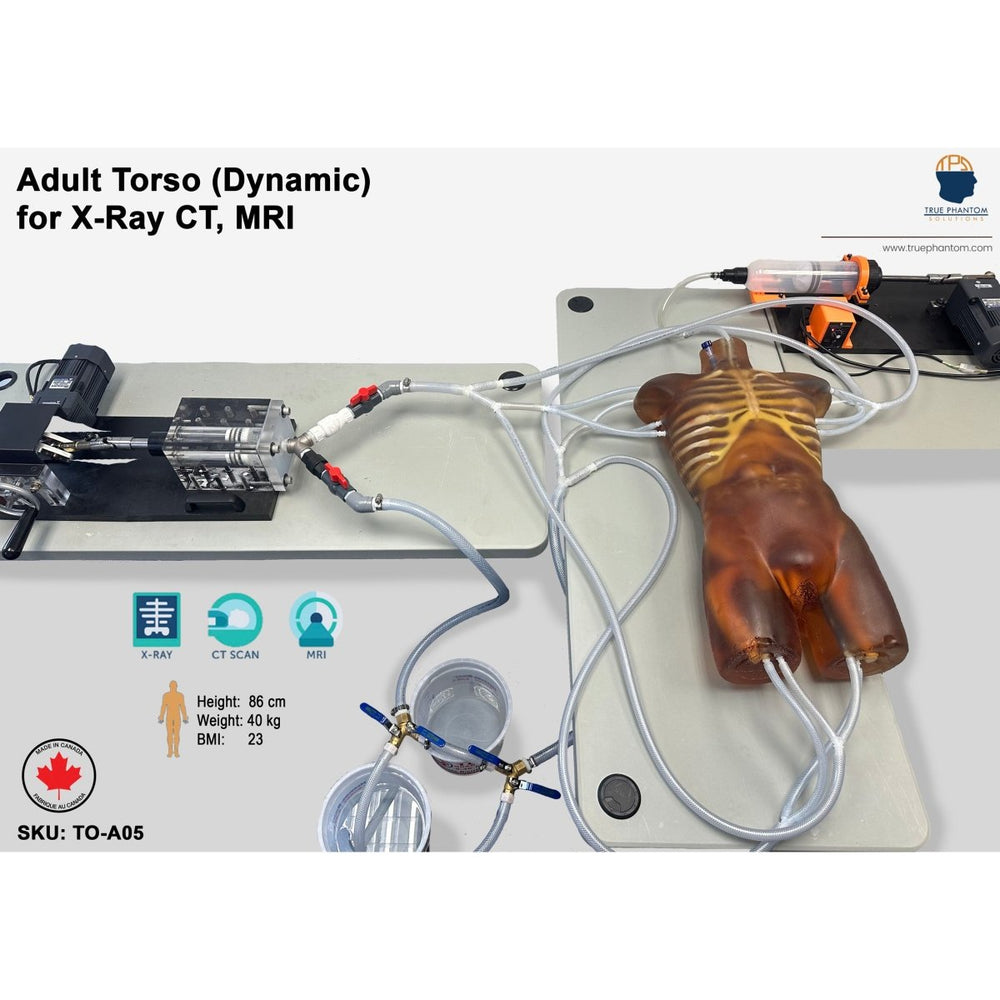

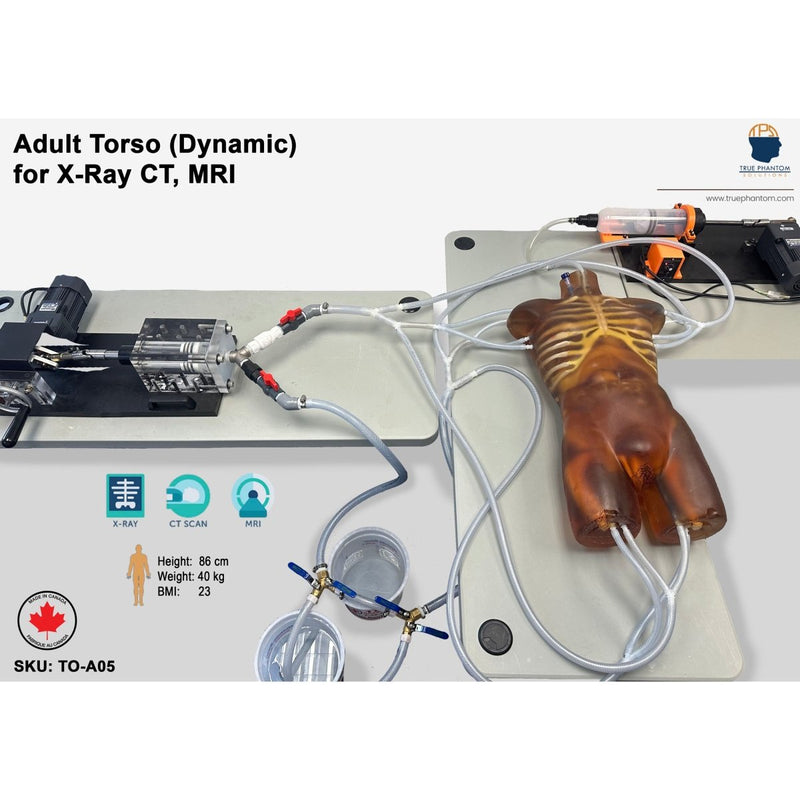

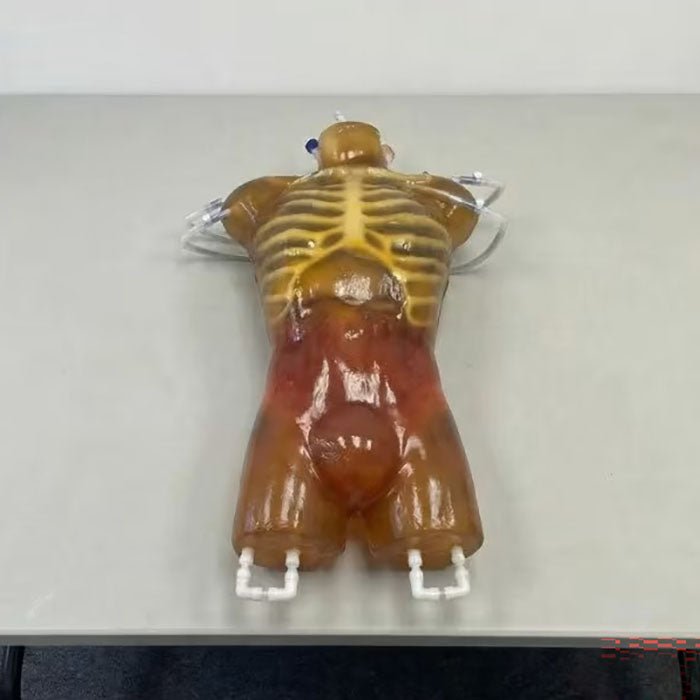

Dynamic Adult Male Torso for X-Ray CT and MRI
0.0 lb
All pictures shown are for illustration purposes only. The actual product appearance may vary.
Dynamic Adult Male Torso for X-Ray CT and MRI
Item # TPS-TO-A05-TR
$56,140.00
Ships in 20-28 weeks
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Dynamic Adult Male Torso for X-Ray CT and MRI

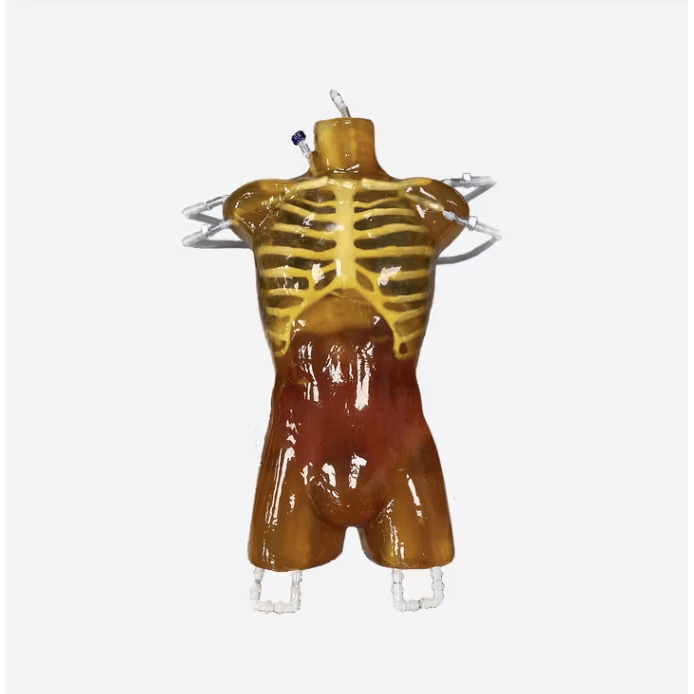

The Adult Male Torso (Dynamic) phantom is a lifelike simulator compatible with MRI and X-Ray/CT. The skeleton features a realistic three-layered structure and inner porosity. The phantom includes a realistic heart with a TPS heart pump and breathable lungs with a TPS lung pump
Adult Male Torso (Dynamic) with a beating heart and breathable lungs is a lifelike, anatomically realistic, from neck to pelvic area phantom/simulator with all the essential organs present inside. This phantom is compatible with MRI and X-Ray/CT, and it is an ideal tool for applications such as angiography. The organs are made from realistic urethane-based tissue-mimicking materials, and the bones are made from a patented ceramic-reinforced epoxy-based composite material. The skeleton is assembled from individually cast bones with vertebrae that have a realistic three-layered structure and inner porosity. This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
The design of this phantom includes a realistic heart with all major heart vessels and internal heart chambers. The TPS heart pump can be included with this phantom, and it enables the realistic heartbeat and motion of heart walls. The TPS lung pump can also be included to provide lifelike breathing motion in the torso.
Anatomy
- Complete Spine
- Complete Ribcage
- Shoulders and Clavicles
- Pelvis
- Partial Femoral Bones
- Trachea
- Realistic Beating Heart with:
- Right Ventricle:
- Moderator Band that runs from the anterior wall to the septum bridge
- Volume: 60 ml
- Left Ventricle:
- Papillary muscles to the anterior and posterior walls
- Volume: 63 ml
- Right Ventricle:
- Appendage Feature
- Aorta
- Jugular vessels
- Pulmonic and Pulmonary Veins attached to LA
- Flexible Valvular Structures
- SVC
- IVC
- Inflatable Breathing Lungs
- Diaphragm
- Liver
- Ligaments
- Bile Ducts
- Gallbladder
- Stomach
- Kidneys
- Spleen
- Pancreas
- Large and Small Intestines
- Bladder
- Prostate
Beating Heart Features:
- Beating heart model with the cyclic motion of the heart walls
- Water-fillable chambers with minimal air pockets
- Access to intravenous catheter insertion
- 0-240 BPM (Pulsatility)
- Two 0-6L/min Outputs (Systole/Diastole)
- Variable Pulse Length (0-500ms)
- Arterial Pressure (Output up to 430 mmHg)
- Two 3/8″ CPC (HFCD17812) valved couplings (Inlet/Outlet)
- Intuitive user-friendly user interface + touchscreen display
Breathable Lung Features:
- Enabling breathing capability by modifying static lungs to dynamic inflatable lungs
- Realistic cyclic respiratory motion
- Supports up to 60 breathing cycles per minute
- Allows volume adjustments in 1 mL increments
- Provides approximately 1 liter of total air volume
- Intuitive user-friendly user interface + touchscreen display
Included In Order:
- Adult Torso (Dynamic) Phantom
- Heart Pump (V5)
- Lung Pump
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Materials Used:
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Product Size & Weight
Phantom:- Size: 34 x 18 x 10 in (approx.)
- Weight: 88 lbs (approx.)
- Size: 28 x 8 x 10 in (approx.)
- Weight: 39 lbs (approx.)
- Size: 36 x 12 x 8 in (approx.)
- Weight: 48 lbs (approx.)
Shipiment Size & Weight
- Size with Hard Carry Case: 46 x 36 x 17 Inches, Weight: 142 Lbs (approx.)
- Size of Heart Pump Package: 36 x 14 x 10 Inches, Weight: 90 Lbs (approx.)
- Size of Lung Pump Package: 49 x 17 x 13 Inches, Weight: 62.5 Lbs (approx.)
* Entire shipment will be placed on a wooden pallet.
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

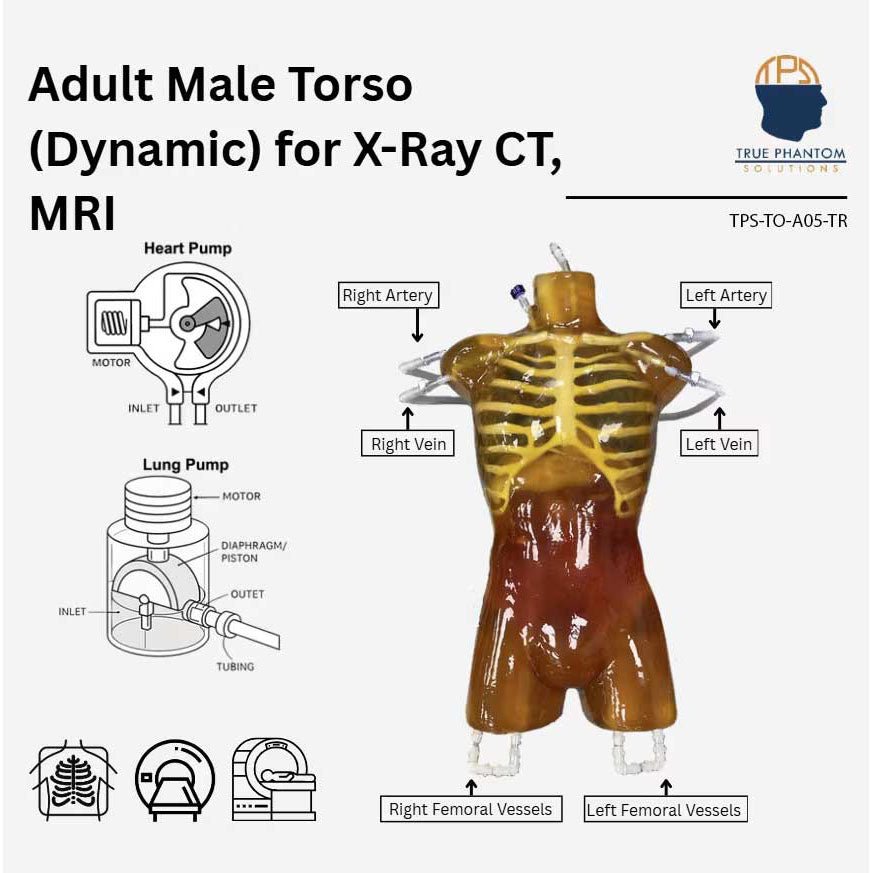

Design of the Phantom:

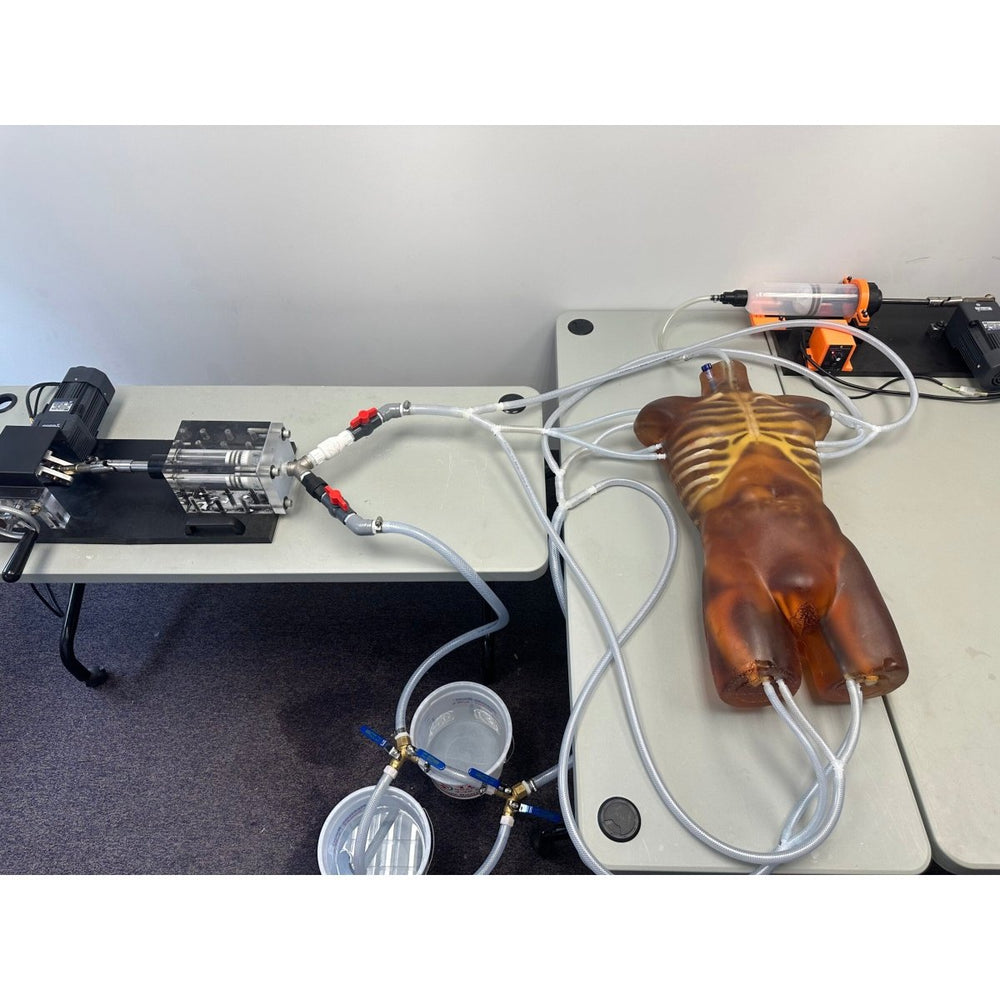

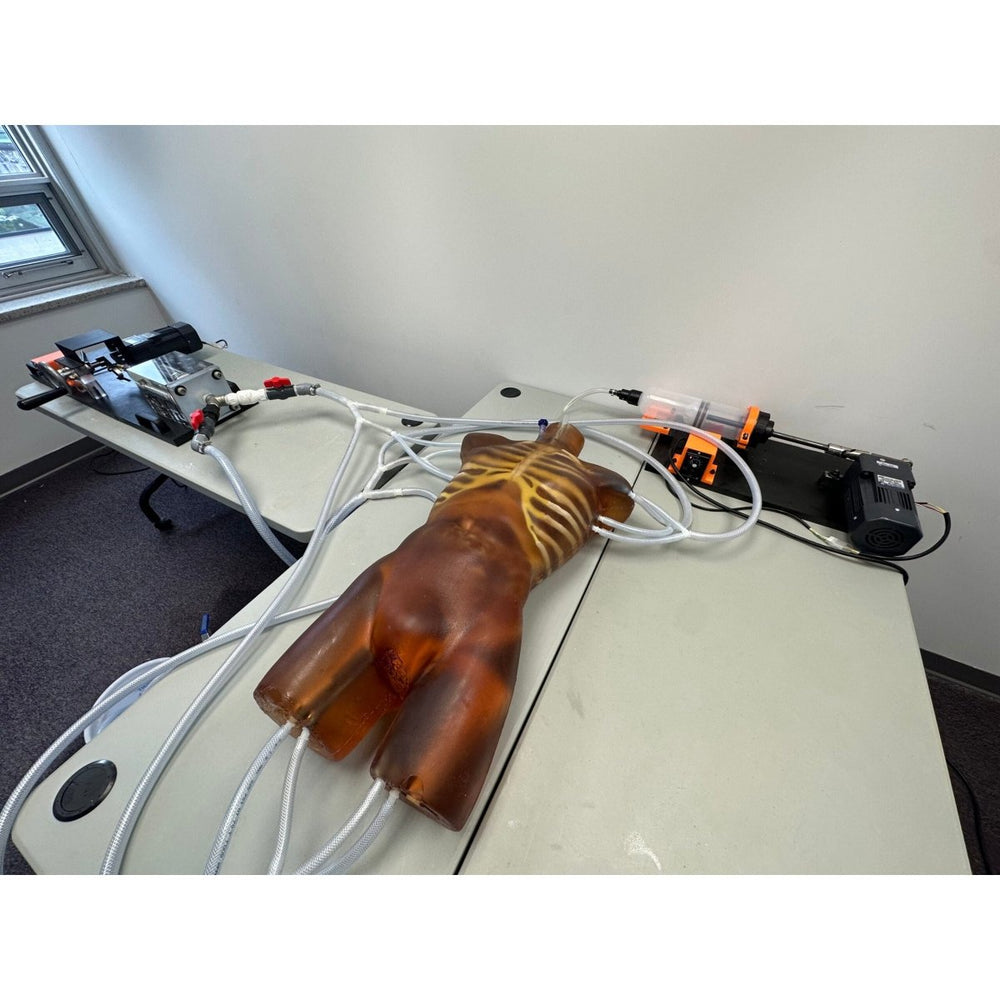

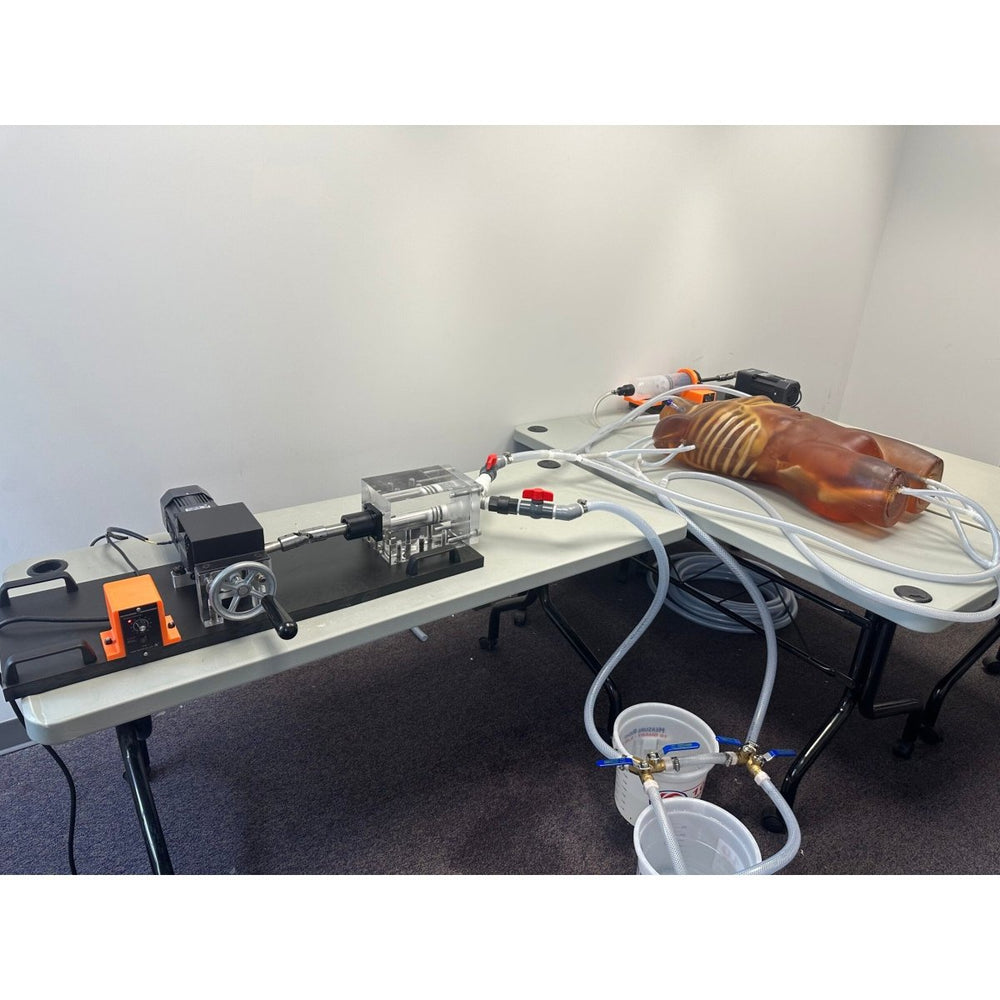

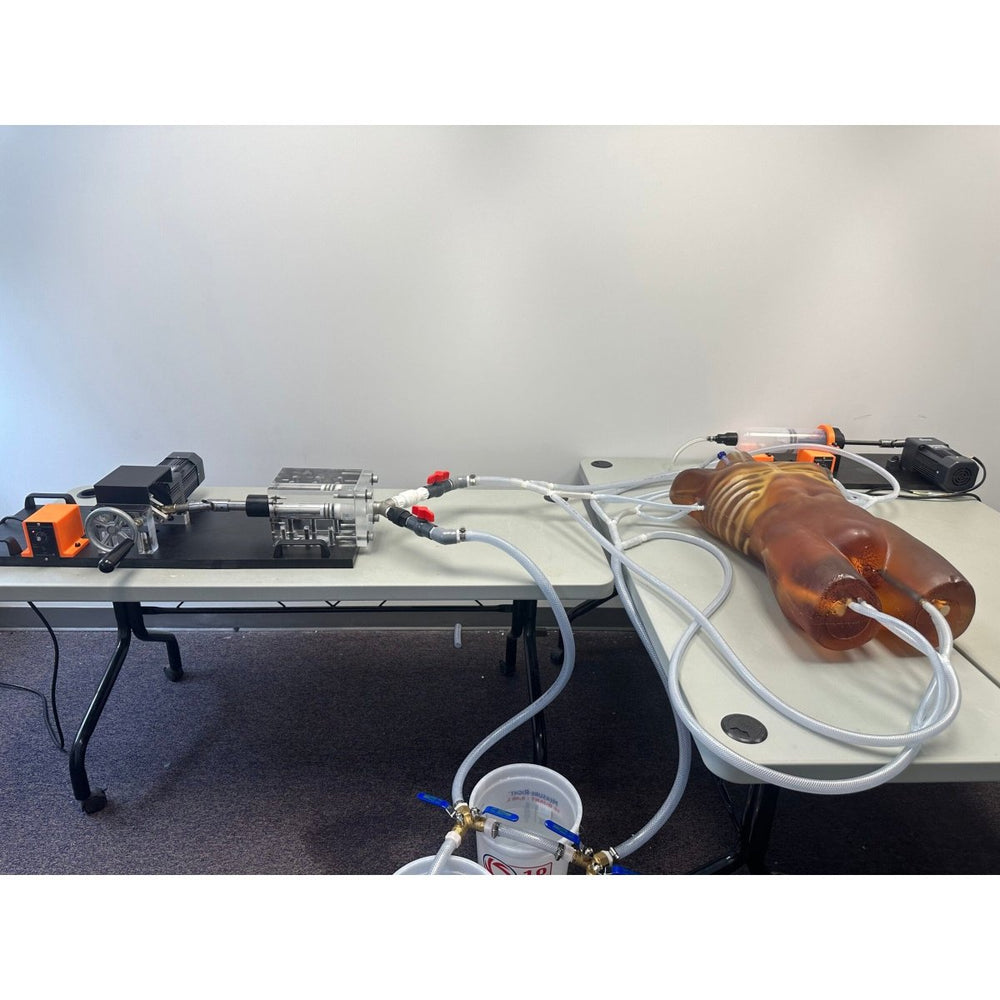

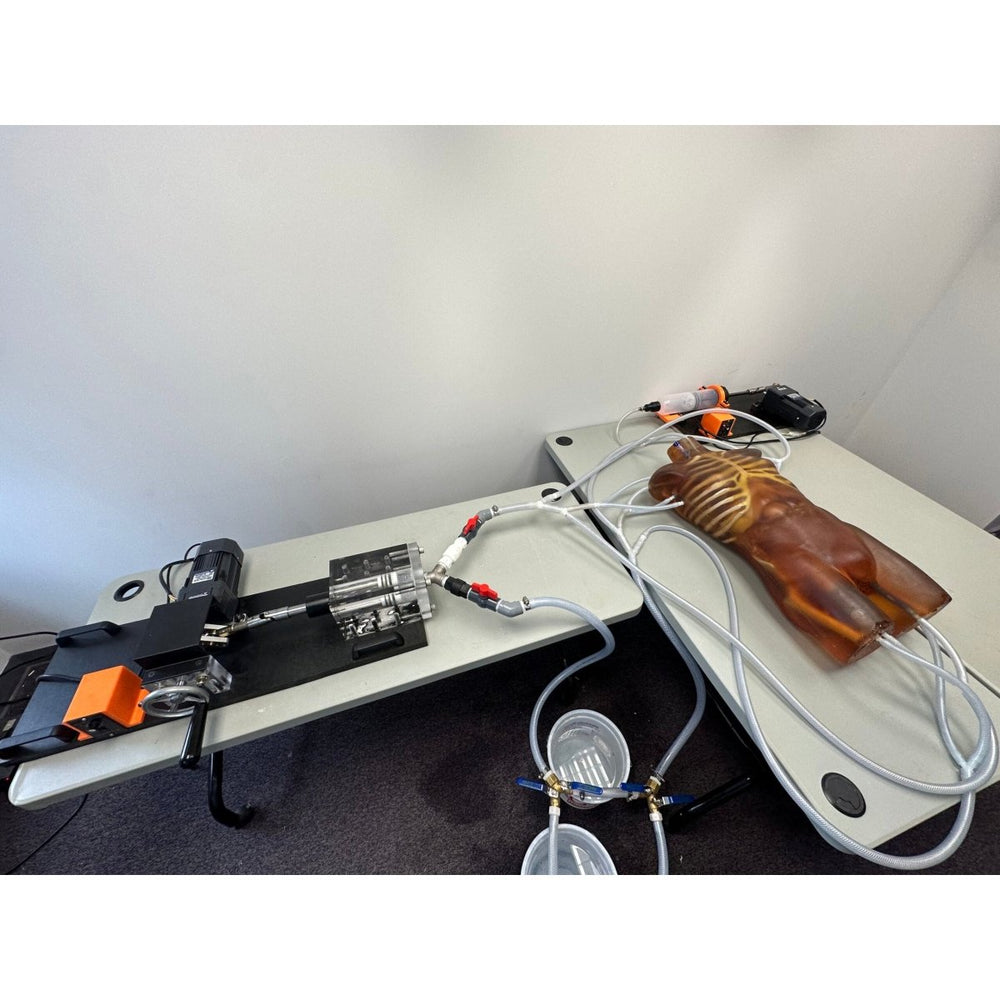

Heart and Lung connections

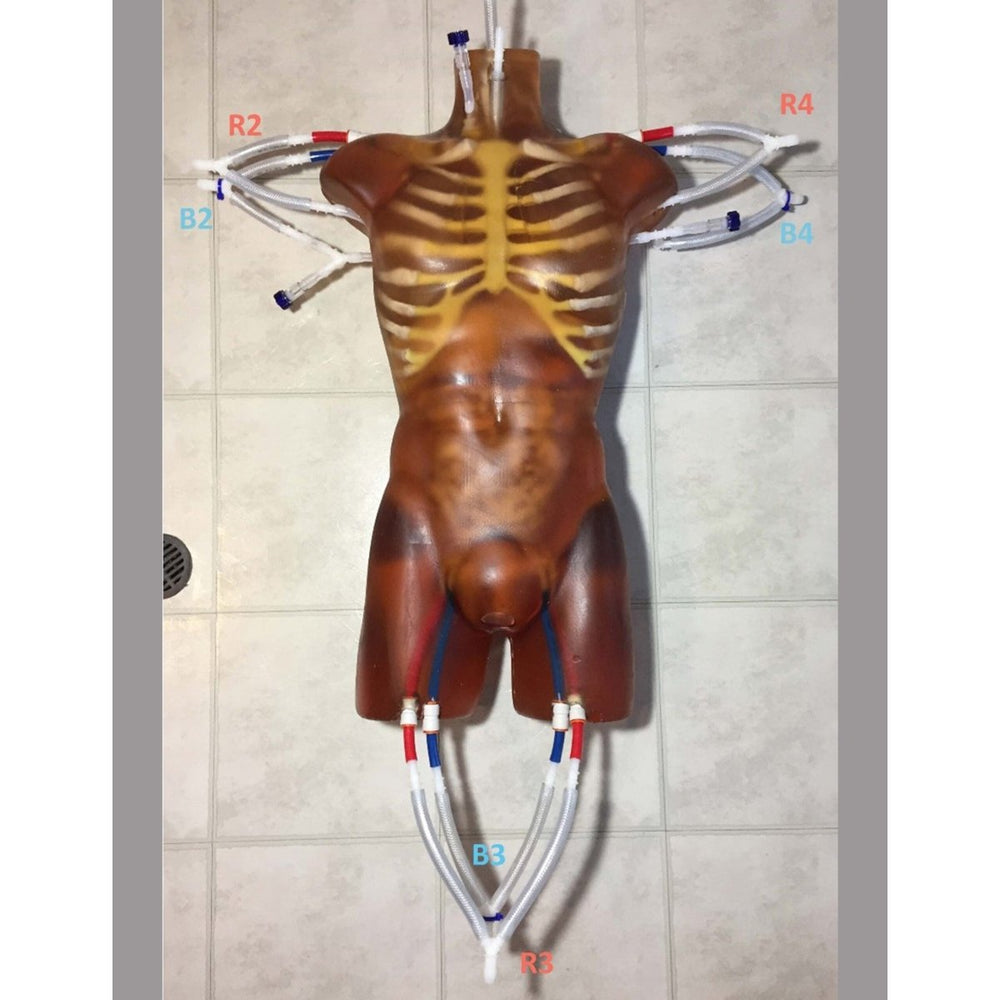

Heart connections in Torso

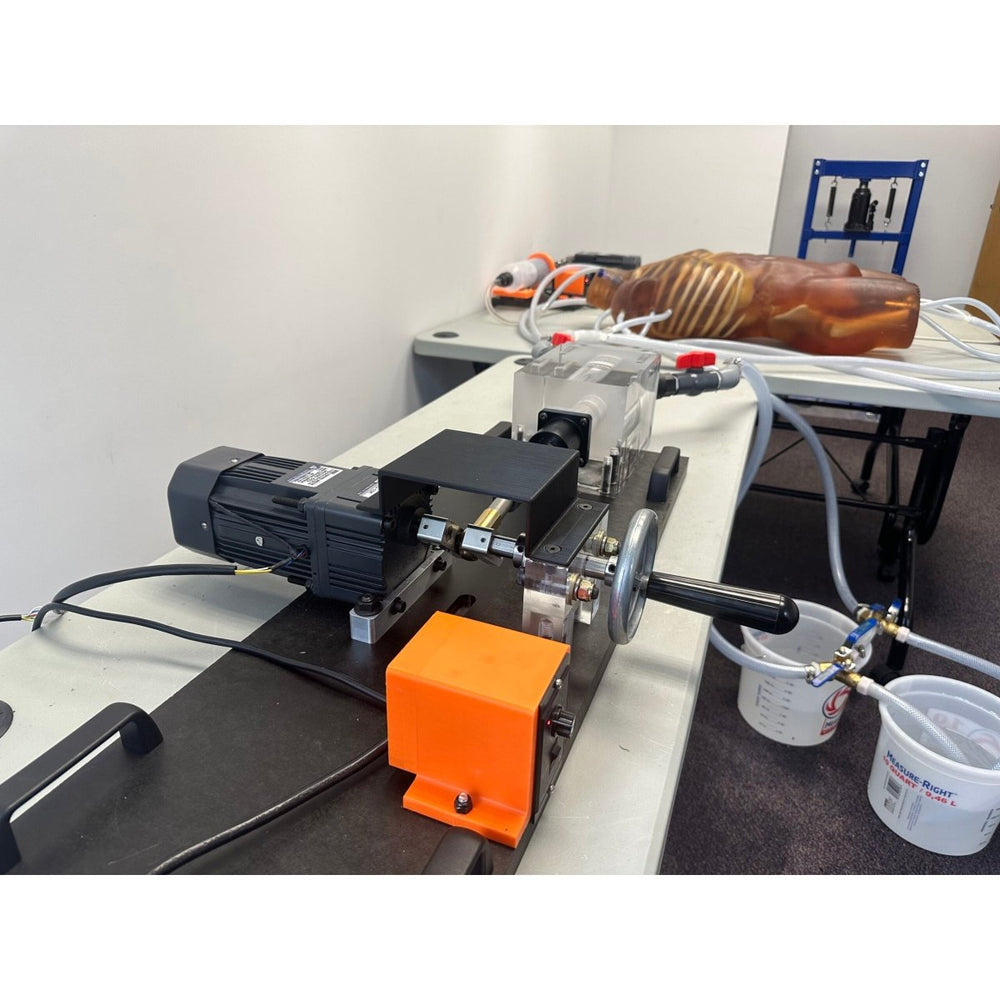

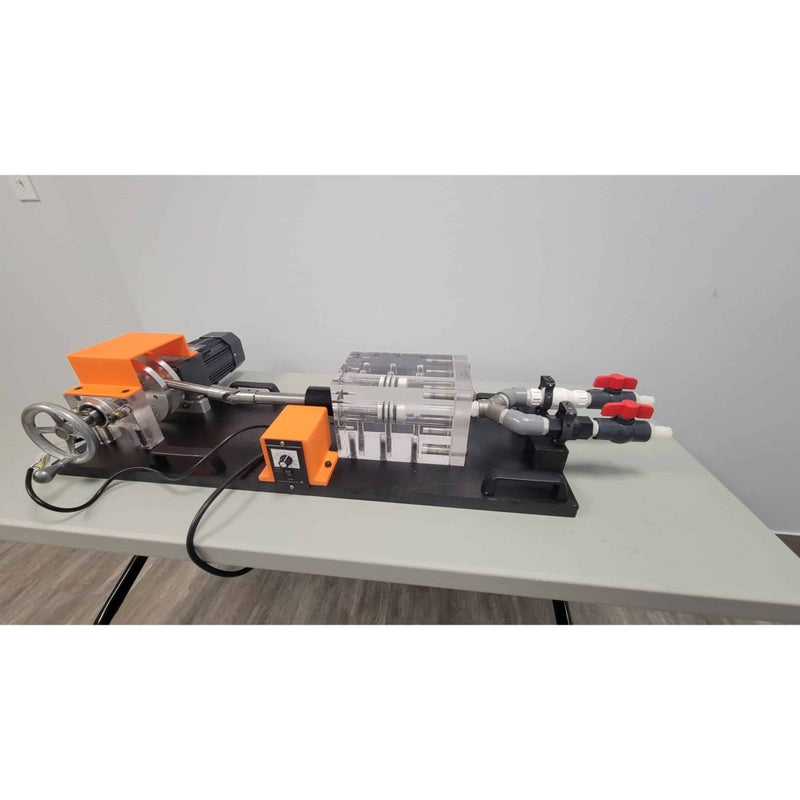

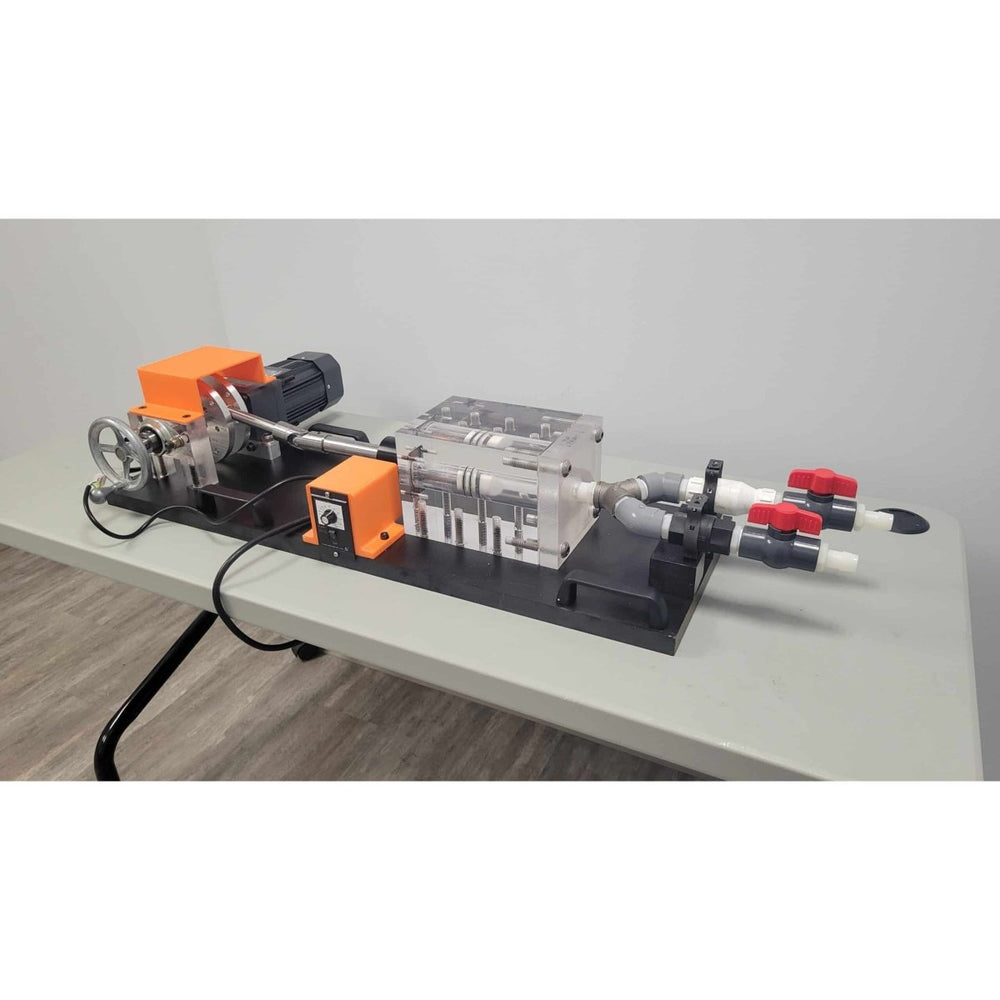

Heart Pump

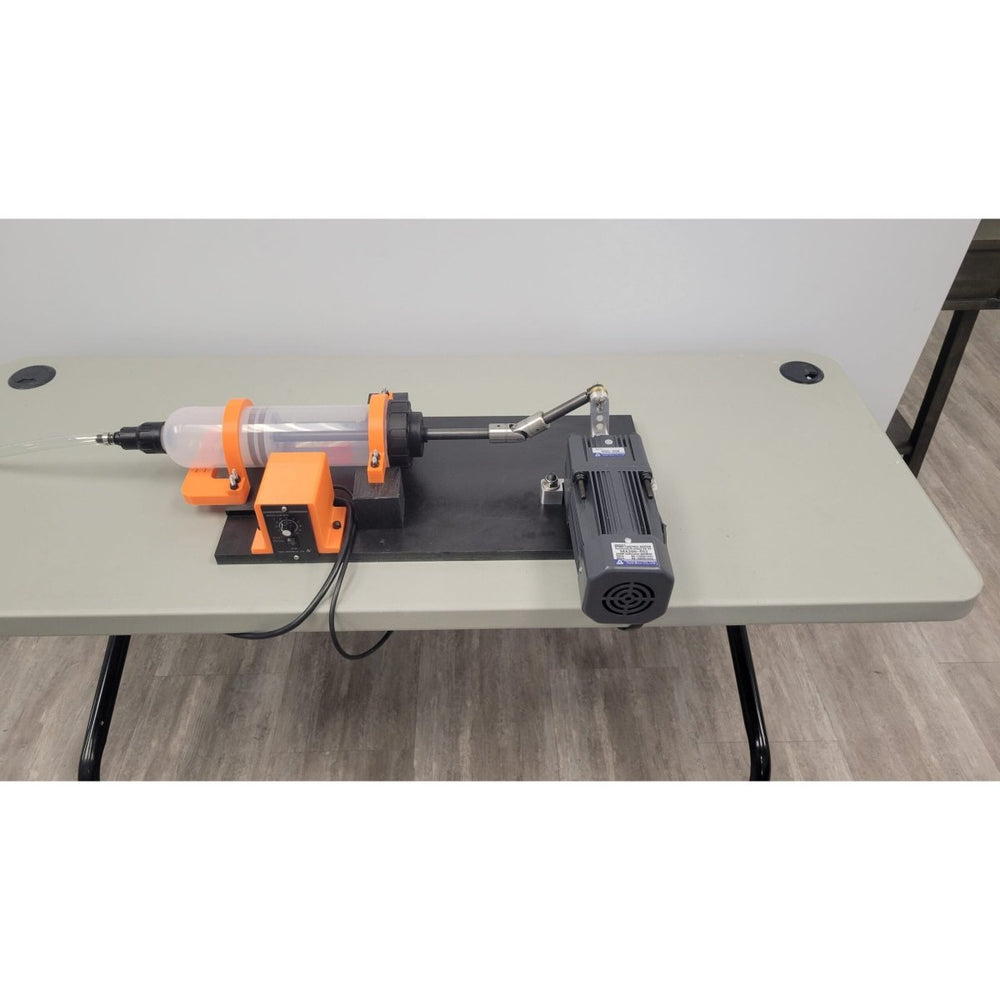

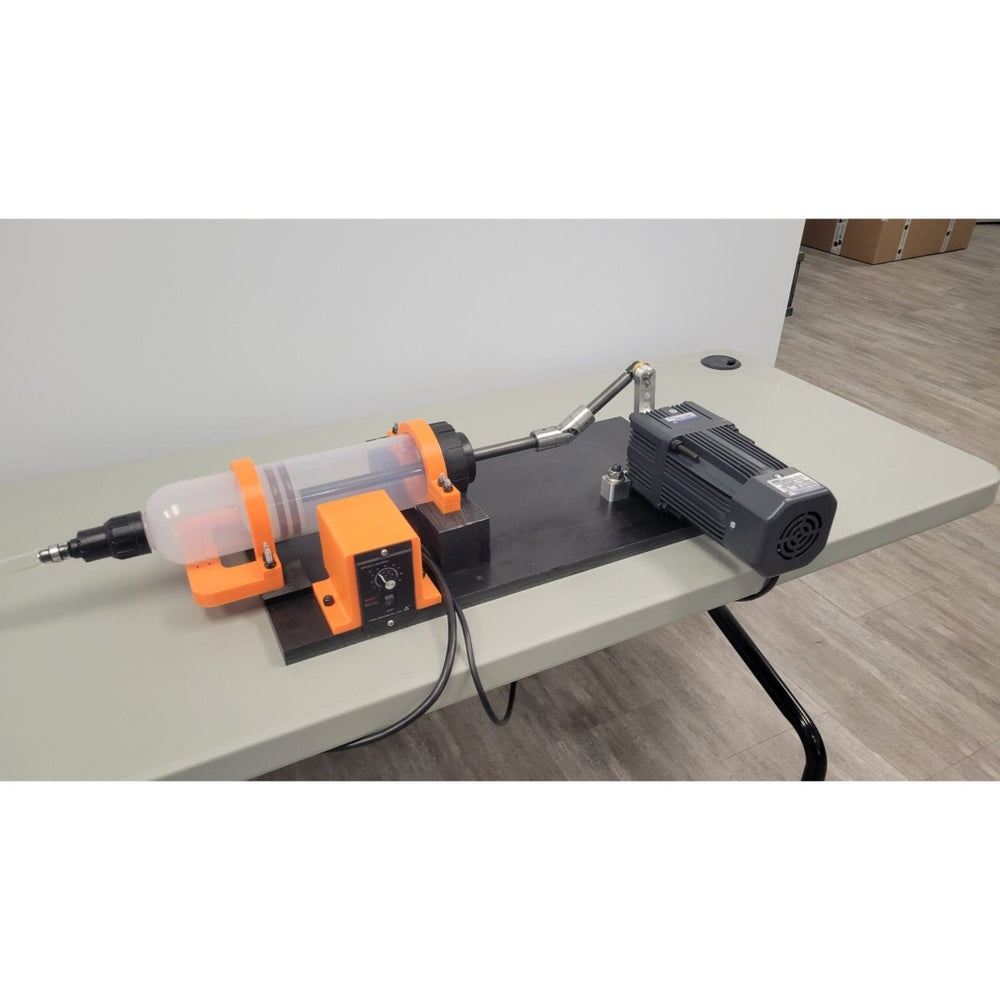

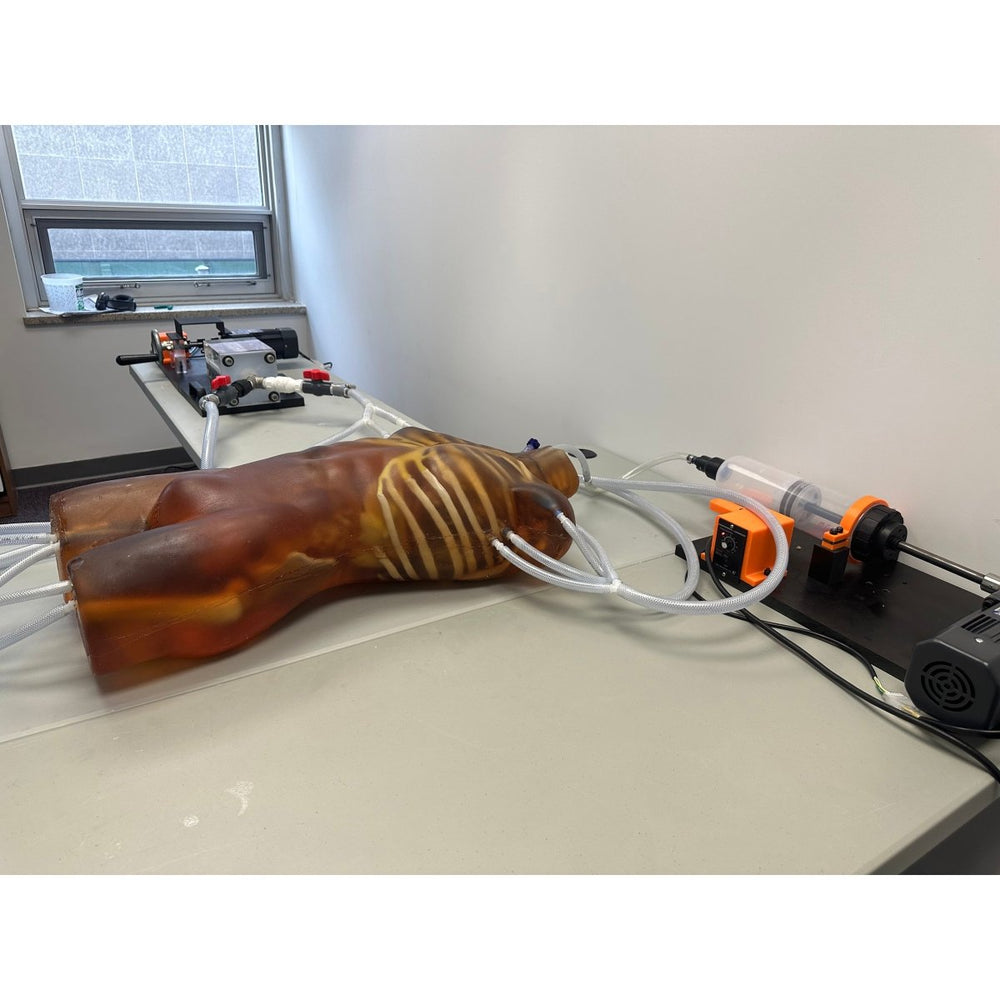

Lung Pump
MRI Scans of the Heart
*/ These scans were obtained from the heart phantom placed in a water tank /*
CT Scans of the Torso
*/ These scans were obtained from a customized Ultrasound & X-Ray CT Torso that were captured by a CANON CT Scanner – One Aquilion (Model TSX-305A). If you have any questions related to these, please write us at info@truephantom.com/*
Dynamic Adult Male Torso for X-Ray CT and MRI
Product Size & Weight
Phantom:- Size: 34 x 18 x 10 in (approx.)
- Weight: 88 lbs (approx.)
- Size: 28 x 8 x 10 (approx.)
- Weight: 39 lbs (approx.)
Shipping Dimensions and Weight
Size with Hard Carry Case:- Size: 47 x 26 x 18 in (approx.)
- Weight: 144 Lbs (approx.)
- Size: 36 x 14 x 10 in (approx.)
- Weight: 90 Lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Tissue Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 35 | 65 | LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Thermal Properties of our Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/m K | 1.040 MJ/m3 K | 0.746 mm2/s | 1.289 m K/W | 0.978 J/g Deg Celsius | 3070 m/s |
HU Values of the Tissue Mimicking-Materials
| Tissue Type | HU Value (Average) |
|---|---|
| Body Tissue | -25 |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| Lungs | -850 |
| Pancreas | 110 |
| Spleen | 110 |
| Stomach | -850 |
| Tissue Type | HU Value (Average) |
|---|---|
| Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
| Diaphragm | 80 |
| Large and Small Intestines | 80 (Tissue Part), -1000 (Air Filled Part) |
