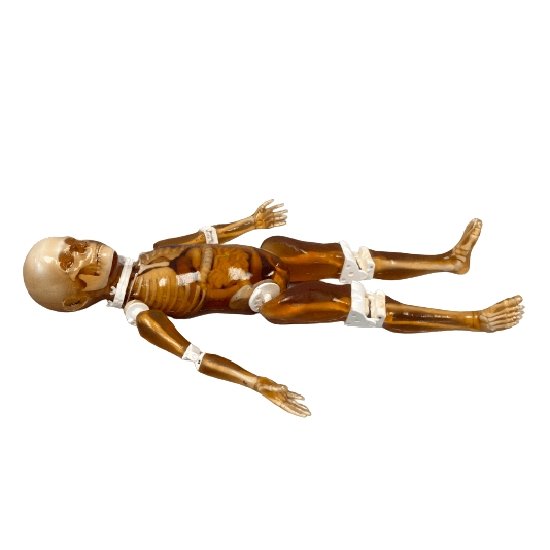

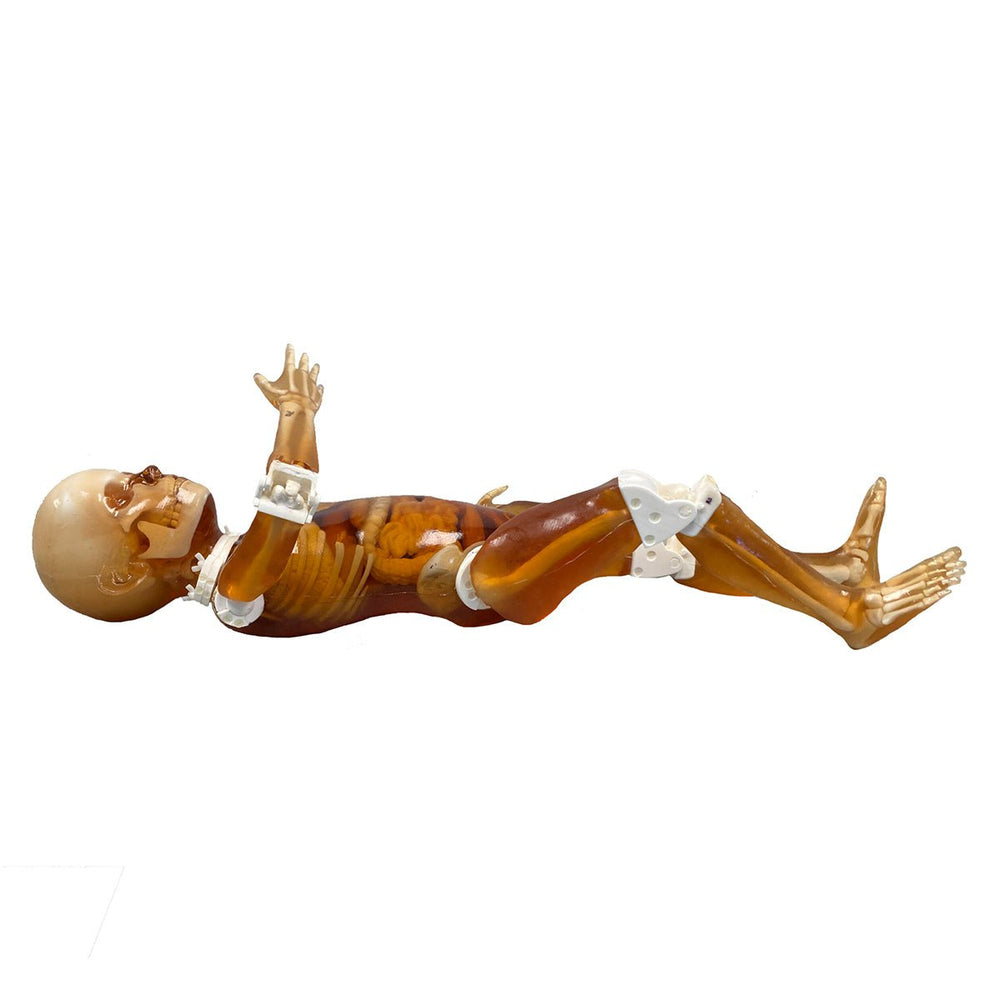

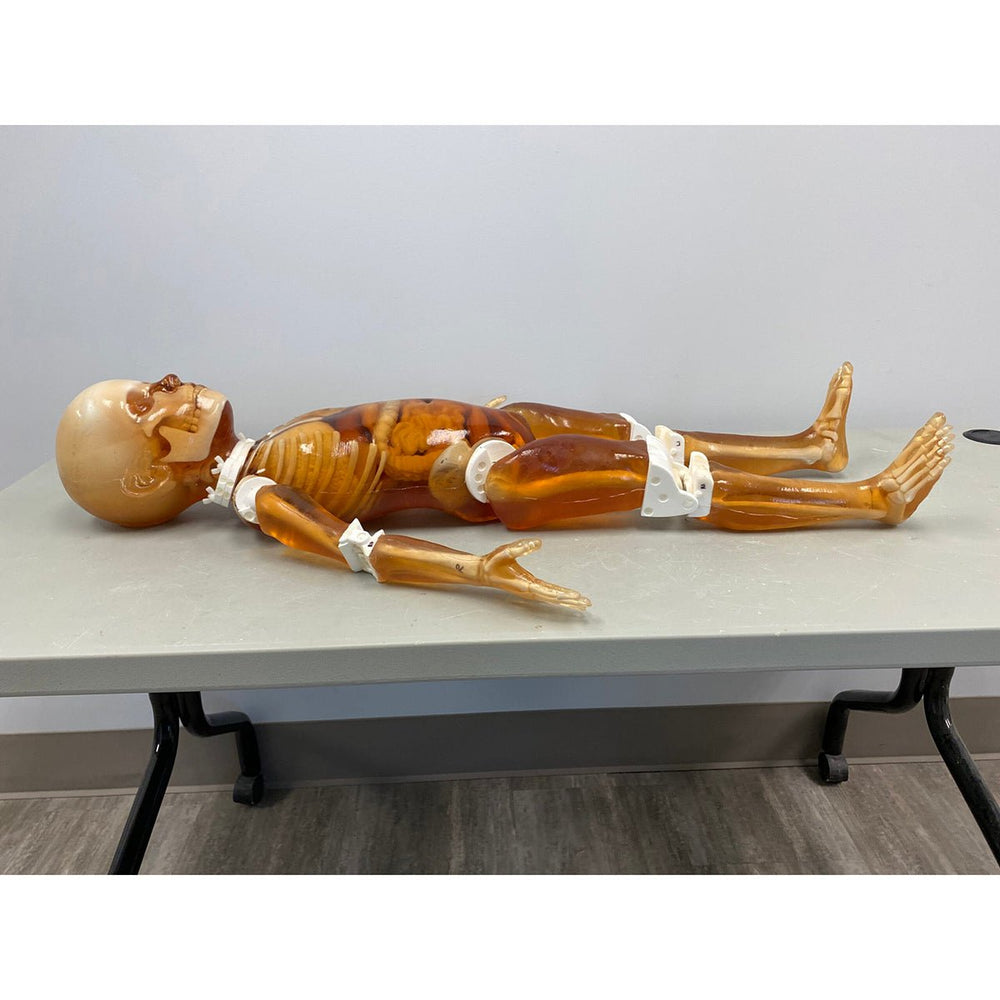

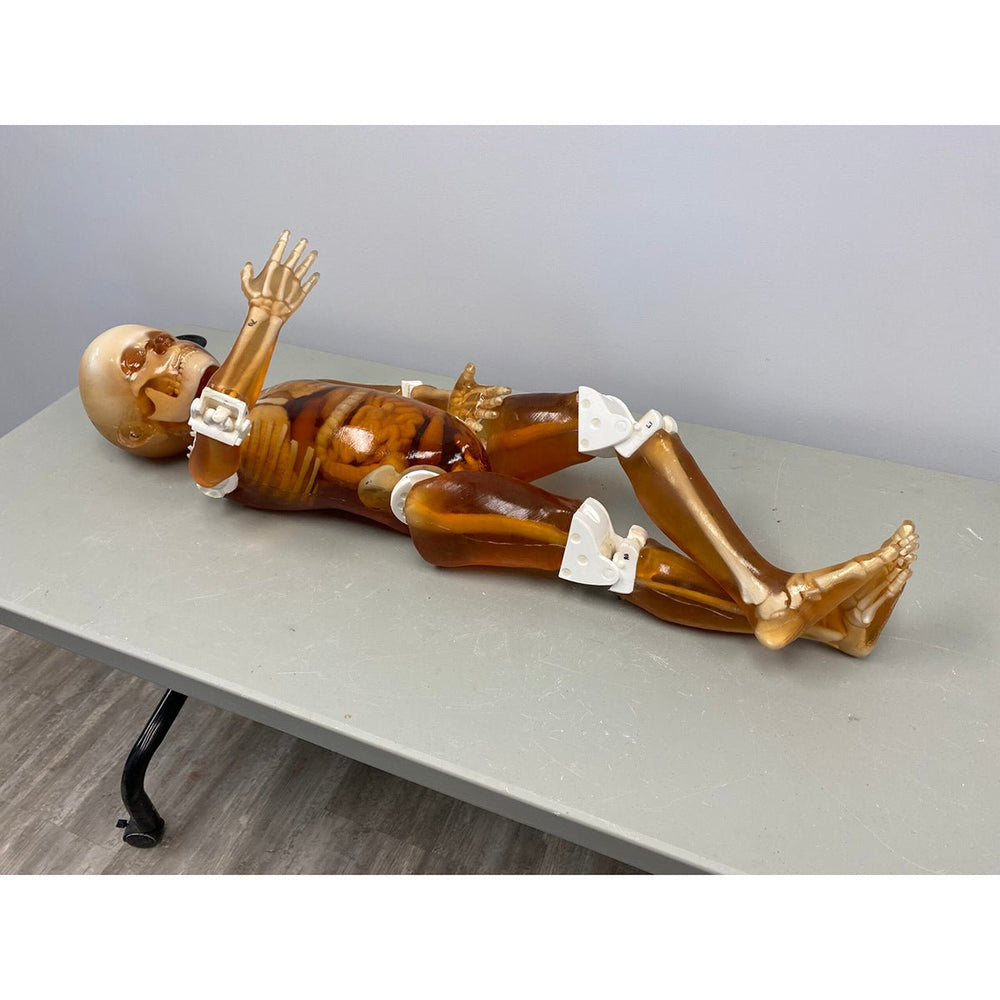

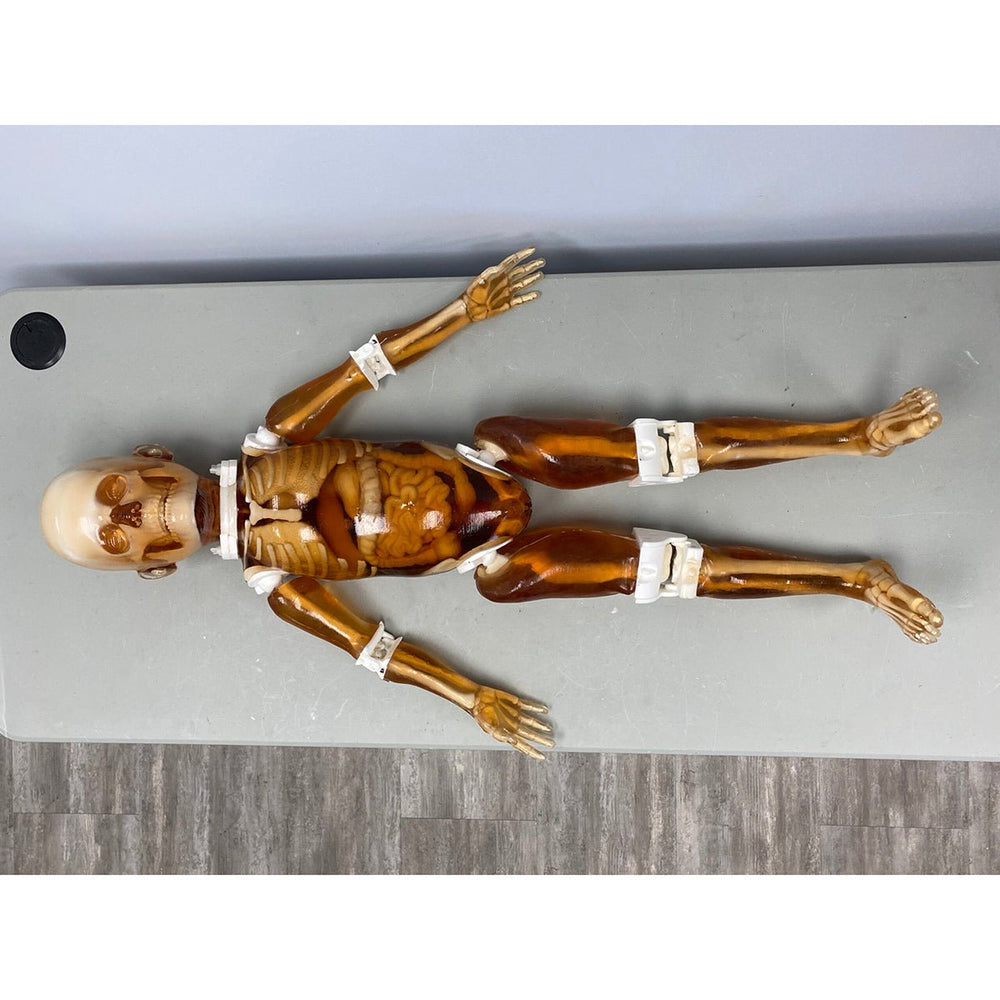

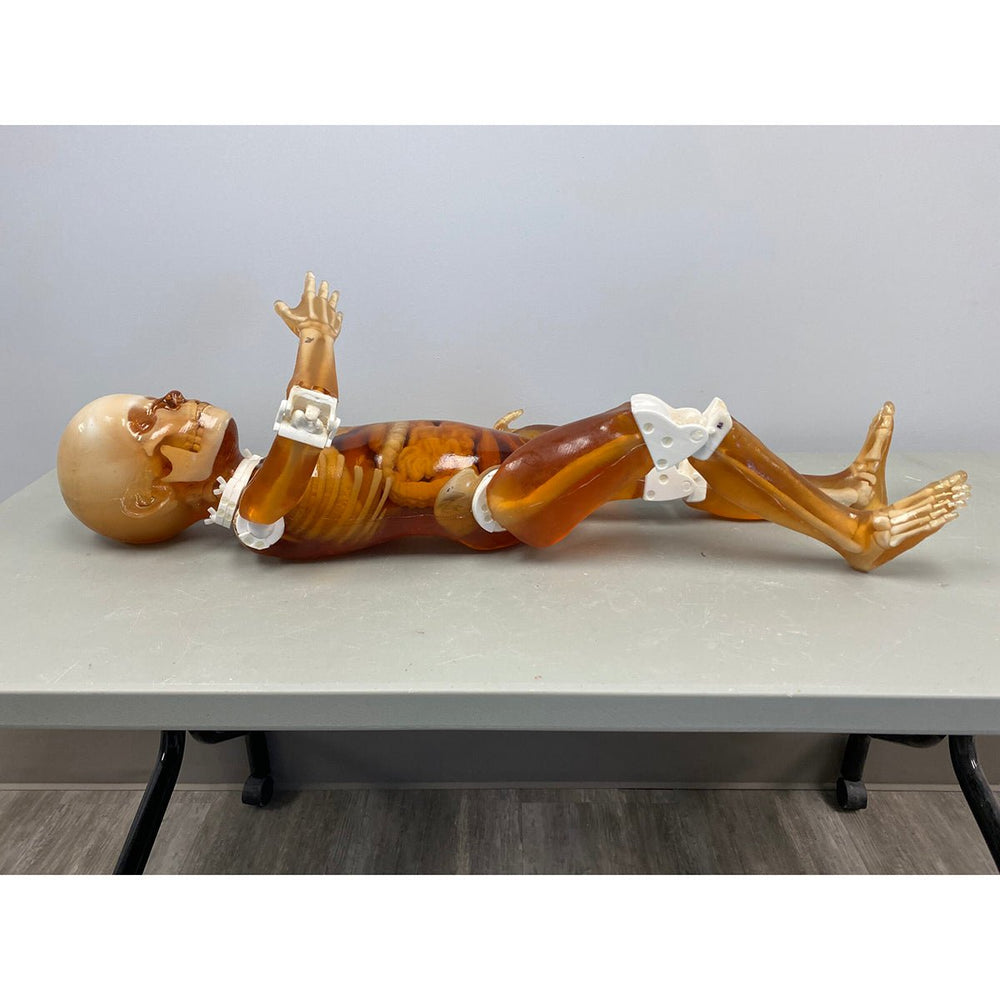

Pediatric Full Human Body Phantom for X-Ray CT & MRI Training

4-Year old Pediatric Full Body Phantom is an X-RAY CT and MR compatible training product. It is primarily used to train various patient positioning techniques. Often purchased by medical schools & teaching hospitals to train their radiology students & other medical professionals.

The design of this phantom is based on the model of a 4-year-old child of 40″ (102 cm) in height. This phantom is a life-size, full-body anthropomorphic phantom with anatomically correct organs and bones constituted in 10 body parts. The phantom weighs about 20 kg. Other uses include visual evaluation in finding out optimal scanning conditions.

Design of the Phantom:

Perspective View
Lateral View
Front View
Top View
The Phantom consists of the following features:
  • Anatomically correct full-body divided into 10 parts as explained below.
  • Realistic body tissue-mimicking material, compatible with CT & MR imaging.
  • Useful to train/perform several patient positioning techniques under radiology.
  • Shoulders can be rotated 360 degrees round ways and 180 degrees sideways.
  • Movable Hip joints, knees, and elbows at respective degrees.
  • Detachable Head, Torso & limbs.
  • The bones have a realistic three-layered structure with inner porosity which can be adjusted
    according to the requirement of the particular project.
  • Customizable with different pathologies(lesion, tumor, infection, abnormality) upon request.
  • The phantom can be ordered in a transparent or skin-colored version.
Your order will include:
  • Full body divided into 10 parts
  • Design video
  • Manual
  • Hard carry case (Optional. Qty. 01)
Product Dimensions and Weight:
  • Height: 102 CMS (approx.)
  • Weight: 20 kgs (approx.)

Download:

Assembly Instructions
Manual
S.No. Tissue Type HU Value (average)
1 Body tissue: -25
2 Trabecular bone: 800
3 Cortical bone: 1300
4 Trachea: 80(Tissue part),
-1000(Air filled part)
5 Pancreas: 110
6 Spleen: 110
7 Kidneys: 110
8 Bladder 35
9 Rectum wall: 100
10 Sigmoid Colon Wall: 100
11 Heart: 40
12 Liver: 110
13 Gallbladder: 35
Type ofthe tissues: Soundvelocity [m/s] Density
[g/cm³]		 Hardness
[Shore 00]		 T2
[ms]		 Speckles Attenuation measured
at 2.25 MHz [dB/cm]
Cortical bone material used to fabricate the skull bone phantom 3000 ± 30 2.31 N/A N/A N/A 6.4 ± 0.3
Trabecular bone material used to fabricate the trabecular layer within the bone phantom 2800 ± 50 2.03 N/A N/A N/A 21 ± 2
Type of the tissues: Sound velocity [m/s] Density
[g/cm³]		 Hardness
[Shore 00]		 T2
[ms]		 Speckles Attenuation measured
at 2.25 MHz [dB/cm]
Brain tissue 1400 ± 10 0.99 20 70 YES 1.0 ± 0.2
Skin tissue 1400 ± 10 1.02 60 50 NO 1.7 ± 0.2
Thermal Conductivity: Volumetric Specific Heat Capacity: Thermal Diffusivity: Thermal Resistivity: Specific Heat: Speed of Sound:
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s

The phantom is divided into the following parts:

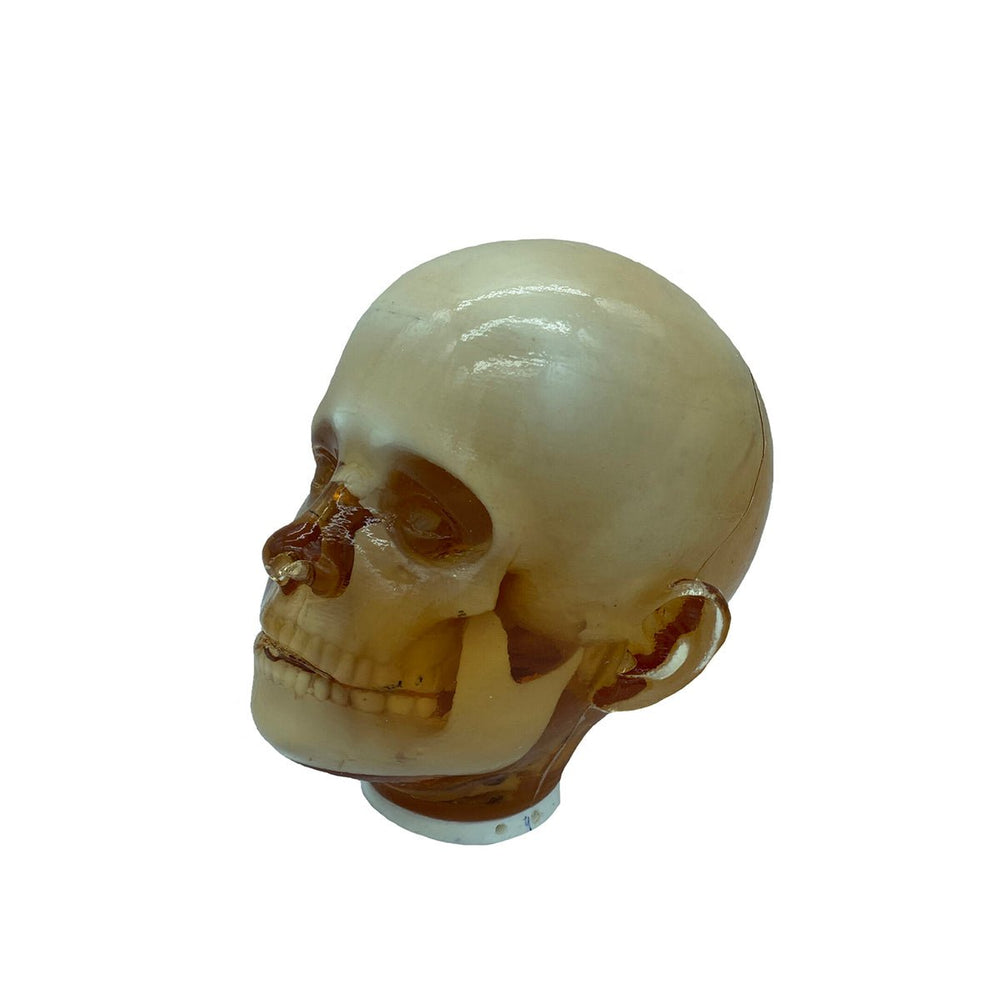

HEAD (HD-P01 – 1 Unit)

  • Anatomically correct realistic skull phantom
  • Realistic brain tissue
  • Gray matter (contrast x)
  • Cervical spine

ARMS (AR-P01 – 2 Units)

  • Arm (Humerus)
  • Elbow joints
  • Forearm (Radius, Ulna)
  • Hand (wrist with fingers)
  • Realistic skin-mimicking material surrounding the arm

LEGS (LG-P01 – 2 Units)

  • Thigh (Femur)
  • Knee joints
  • Leg (Tibia, Fibula)
  • Foot (Finger bones)
  • Realistic correct skin-mimicking material surrounding the arm

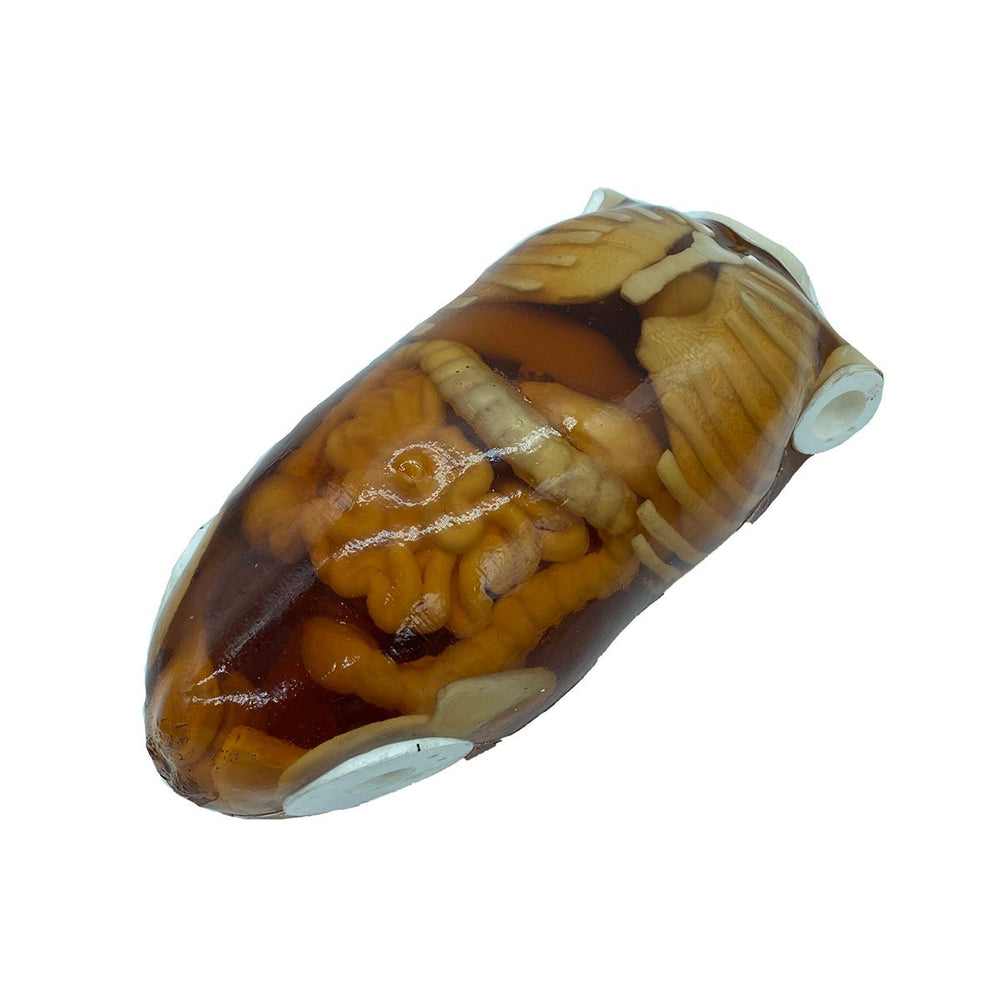

TORSO (TO-P01 – 1 Unit)

  • Bones include:
    • - Complete Spine
    • - Complete Ribcage
    • - Shoulder (Clavicle & Scapula)
    • - Pelvis
  • Thoracic organs include:
    • - Trachea and bronchi
    • - Anatomically correct Heart
    • - Lungs with lung vessels
  • Major abdominal organs include:
    • - Stomach
    • - Liver
    • - Kidneys
    • - Spleen
    • - Pancreas
    • - Bladder
    • - Gallbladder
    • - Large & small intestines
