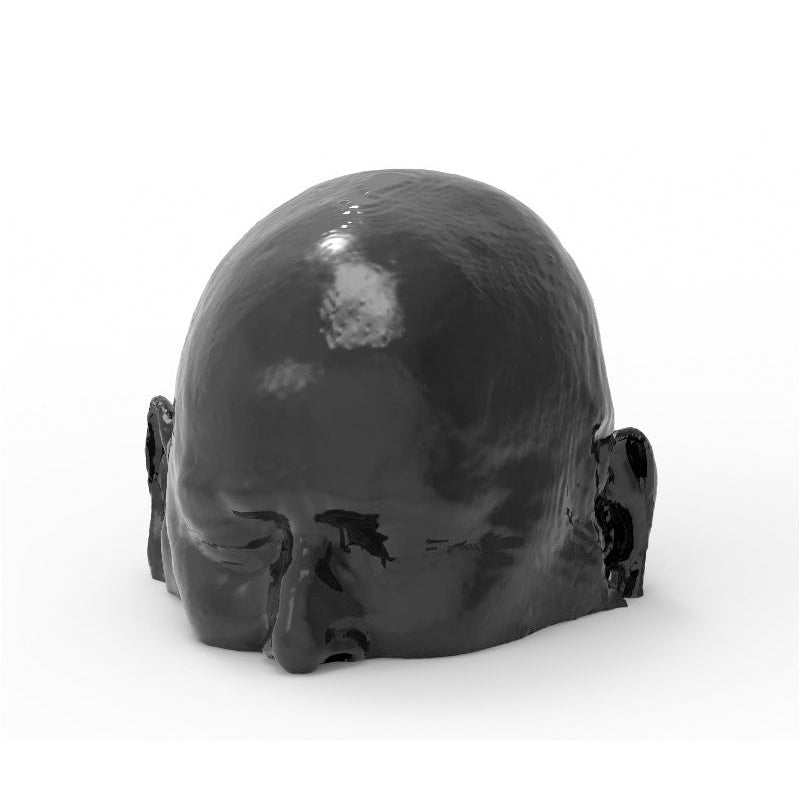

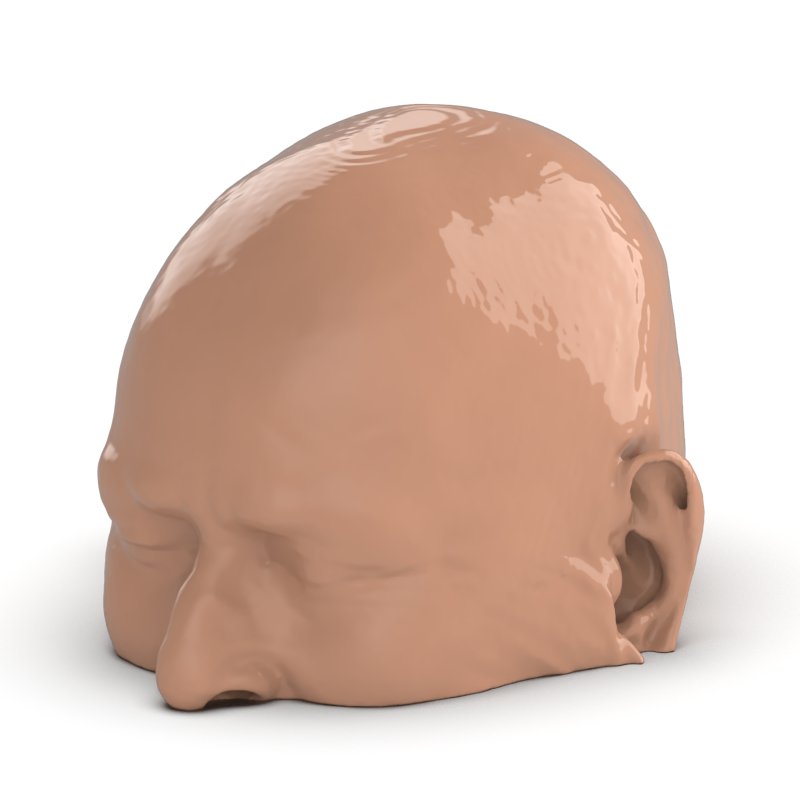

Head Phantom - CTA Aneurysm

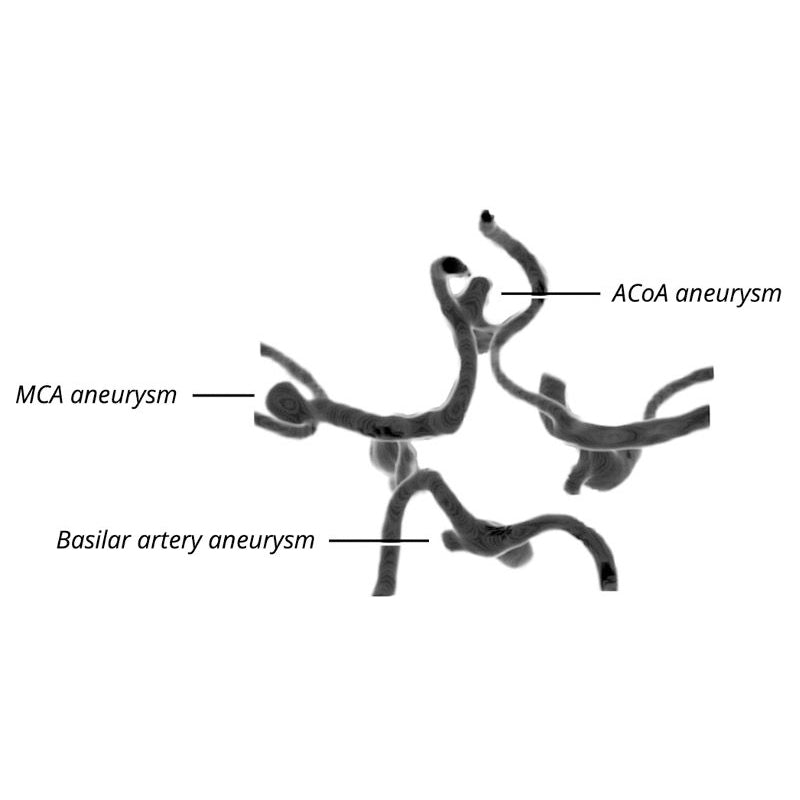

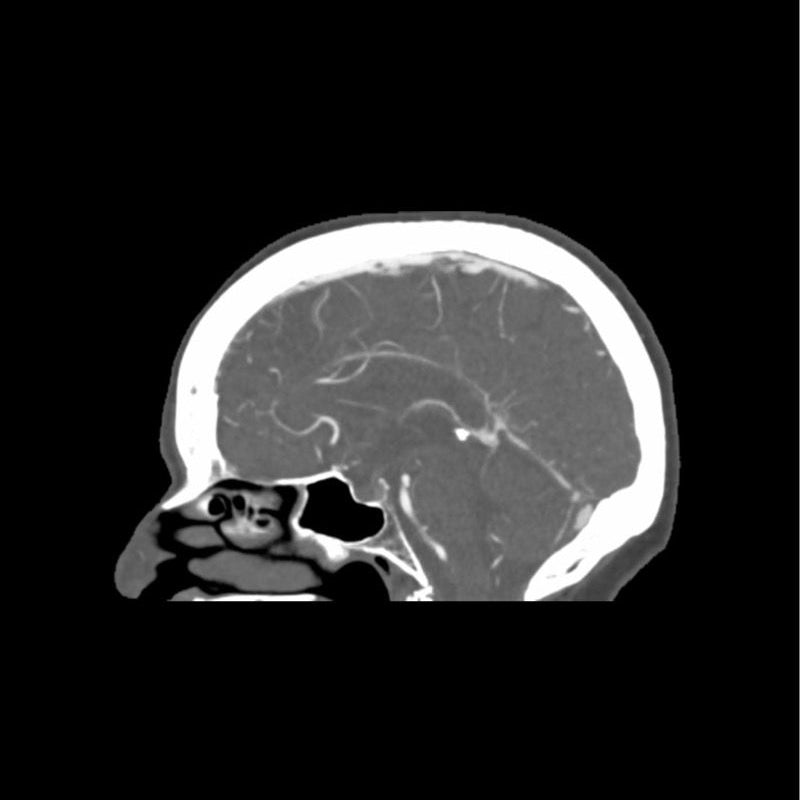

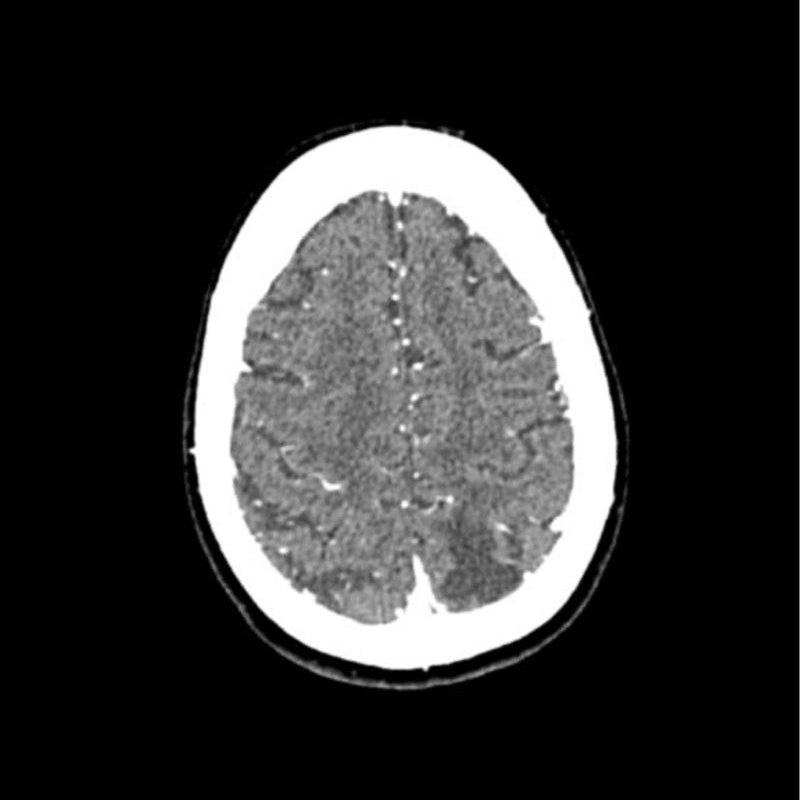

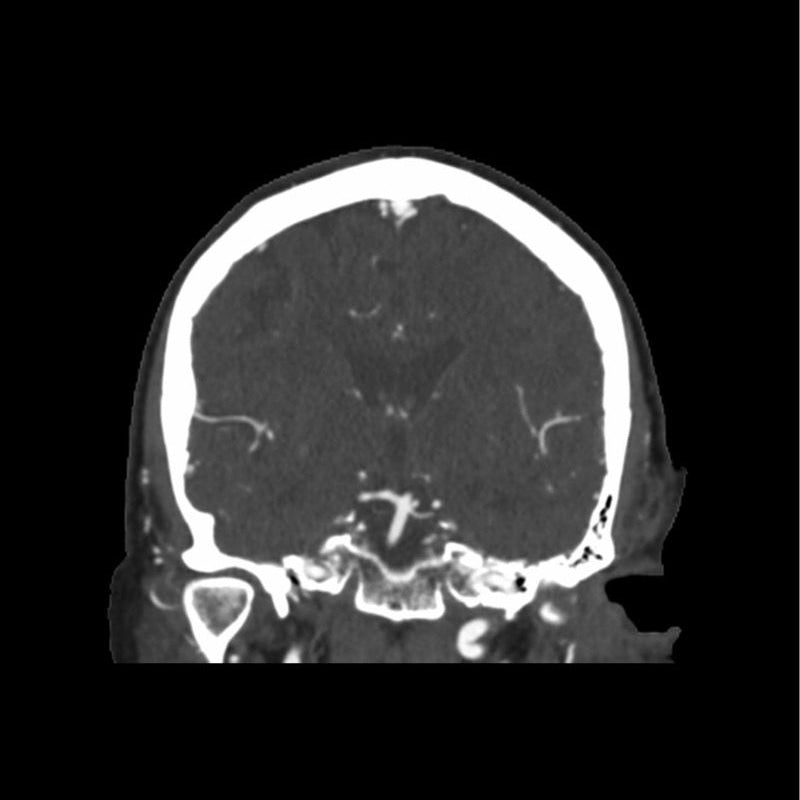

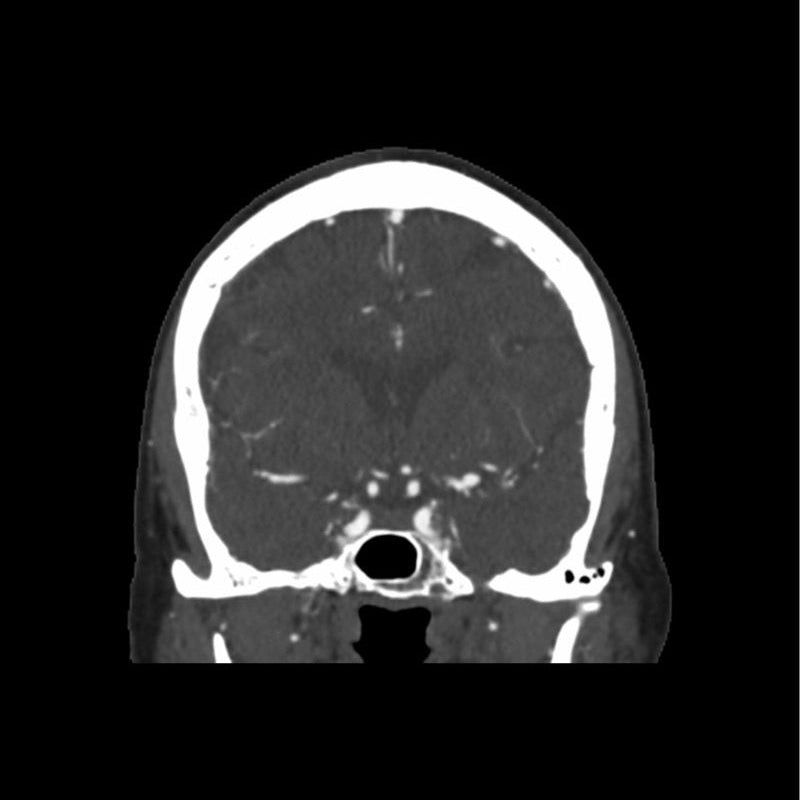

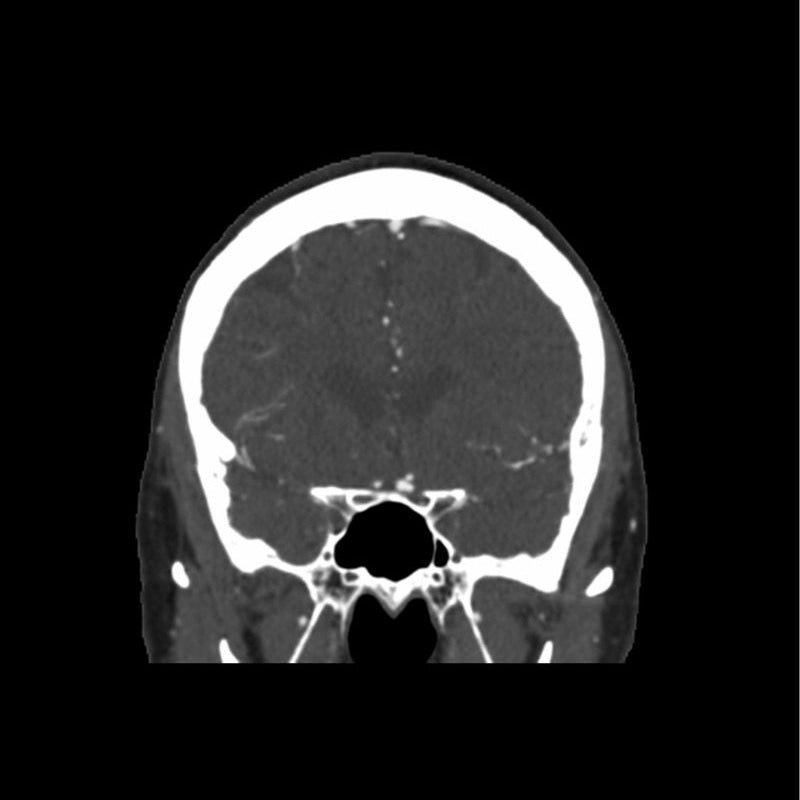

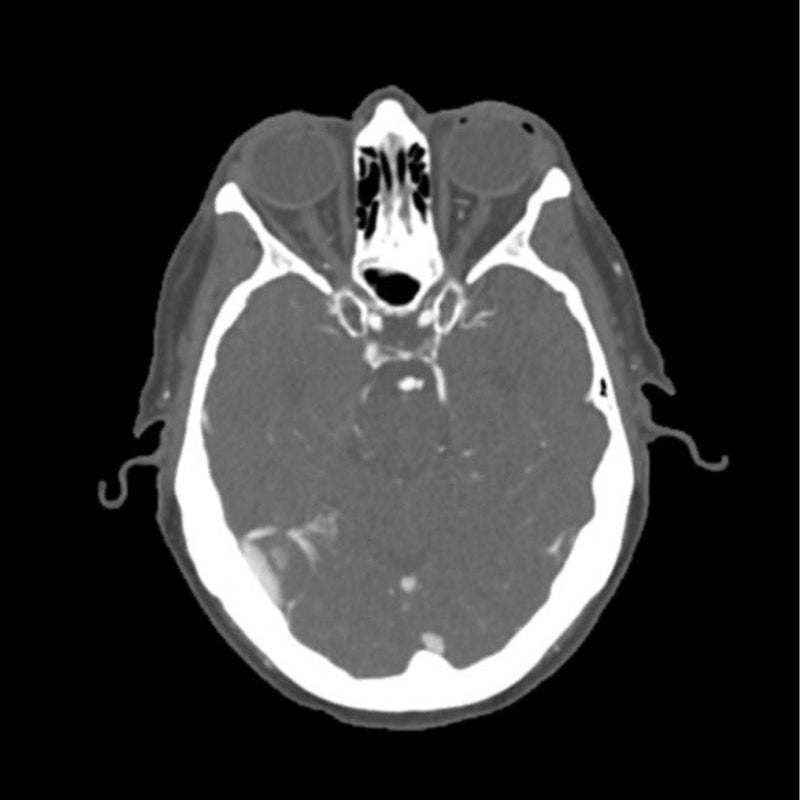

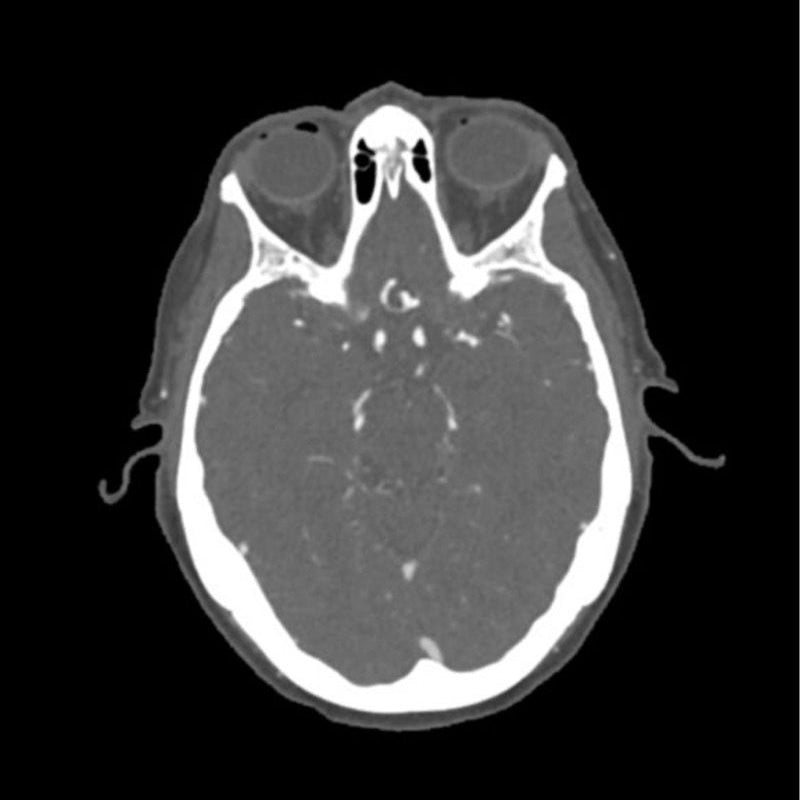

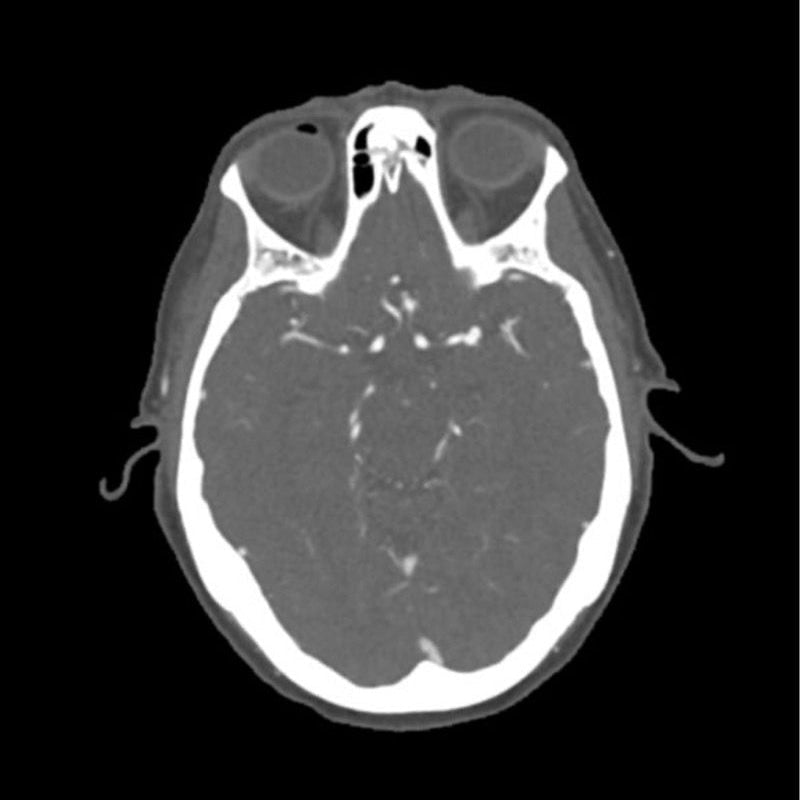

This phantom simulates a contrast medium enhanced head in arterial phase (CT angiography). It covers the vertex to the foramen magnum. The phantom has three intracranial aneurysms of the middle cerebral artery (MCA), anterior communicating artery (ACoA), and the basilar artery.

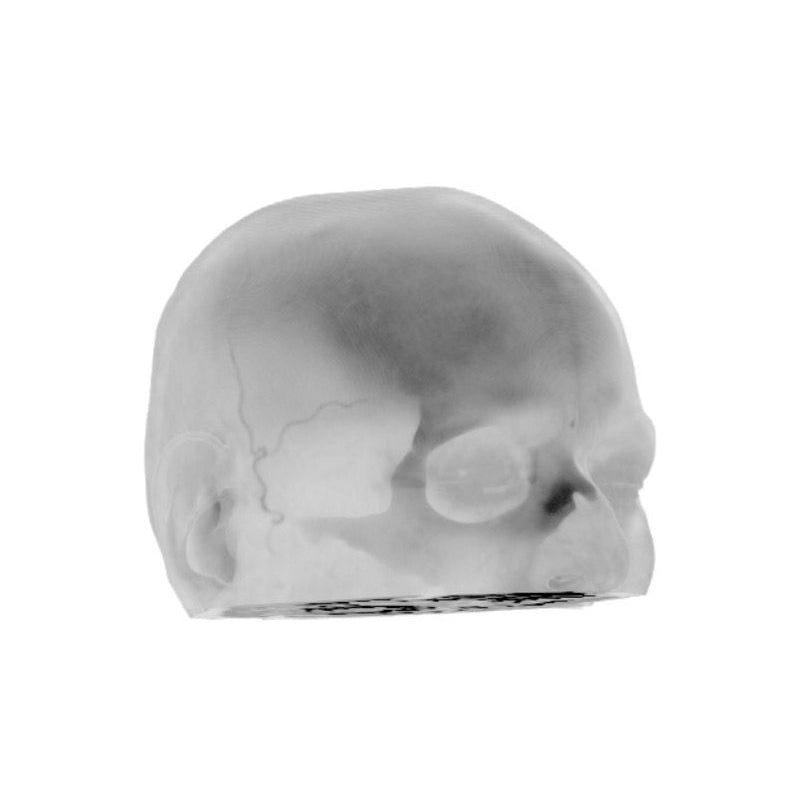

The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and AI-enabled diagnosis. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of vascular structures, soft and bone tissue, including small details such as lymph nodes. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.

SPECIFICATIONS:
  • Size: Approx. 19 x 22 x 15 cm
  • Weight: Approx. 2680 kg
  • Base material: Cellulose-polymer composite
  • Optimal tube voltage: 120 kVp – (adaptable upon request)
DIAGNOSTIC FEATURES:

Realistic simulation of head vessels, bone and soft tissues.

    Aneurysms:
  • Middle cerebral artery (MCA) left side
  • Anterior communicating artery (ACoA) left side
  • Basilar artery left side
General indications:
  • The phantom is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time.
  • The phantom is coated with a protective layer. If the protective layer is undamaged, the phantom can be cleaned using a damp cloth (water or mild detergent)
  • Protect from direct sunlight.
  • Maintain a storage temperature of 10°C to 30°C. If the phantom is exposed to temperatures below -10°C or above 45°C, it can be severely damaged.
  • The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
  • The phantom is not certified as medical device.
  • Air voids are filled with cellulose-polymer composite of approx. -160 HU.
Download:
Brochure

Made by PhantomX and sold by GTSimulators.

GTSimulators by Global Technologies
PhantomX Authorized Dealer

Product Dimensions and Weight:
  • Size: Approx. 19 x 22 x 15 cm
  • Weight: Approx. 2680 kg


    General indications:
  • Phantoms are manufactured of a cellulose-polymer composite material with similar properties to hardwood. If treated carefully, they will last for a long period.
  • The phantoms are coated with a protective layer. If the protective layer is unharmed, the phantoms can be cleaned using a damp cloth (water or mild detergent).
  • Protect from direct sunlight.
  • Maintain a storage temperature of 10 °C to 30 °C.
  • If the phantom is exposed to temperatures below -10 °C or above 45 °C, it can be seriously damaged.
  • The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
  • Air voids are filled with cellulose-polymer composite of approx. -80 HU.
