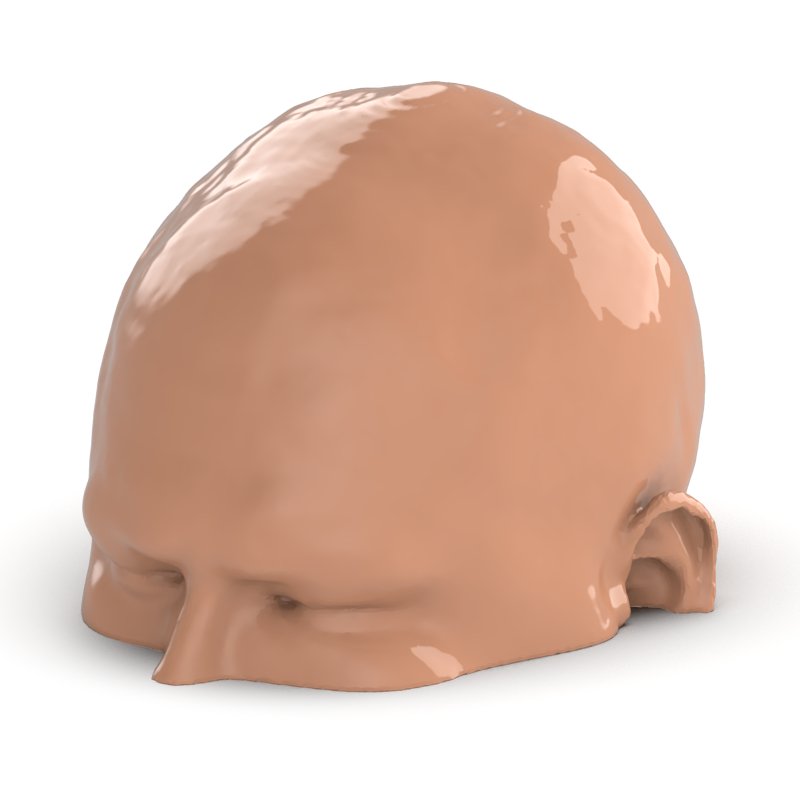

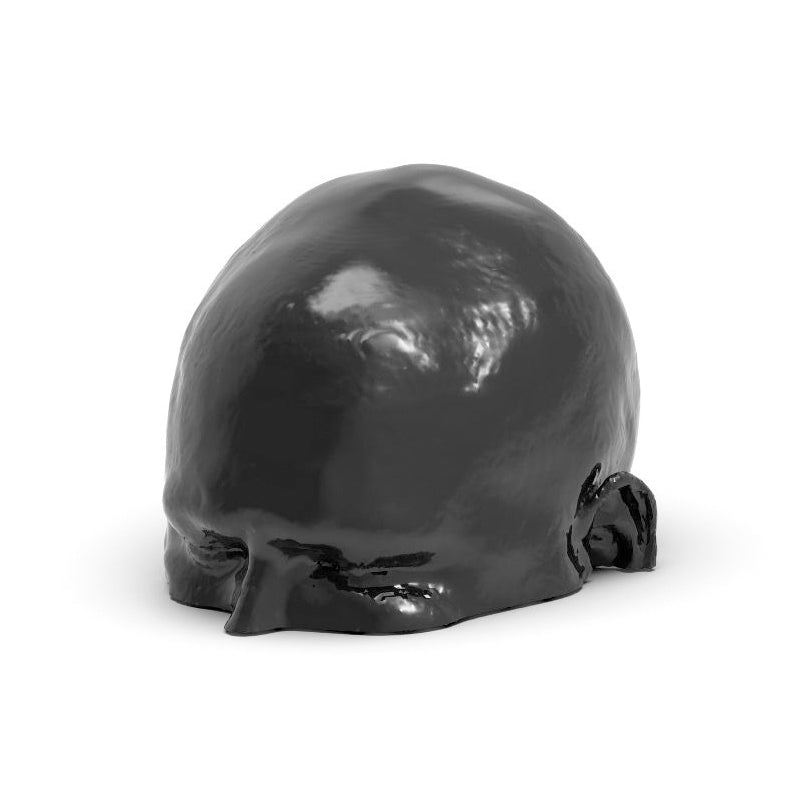

Head Phantom - Stroke / Bleed

This phantom simulates a head with stroke and bleeding patterns. It covers the vertex to the foramen magnum. Stroke patterns include signs of early infarction (hyperdense middle cerebral artery, disappearing basal ganglia), acute and subacute watershed infarcts, and lacunar infarctions of varying ages.

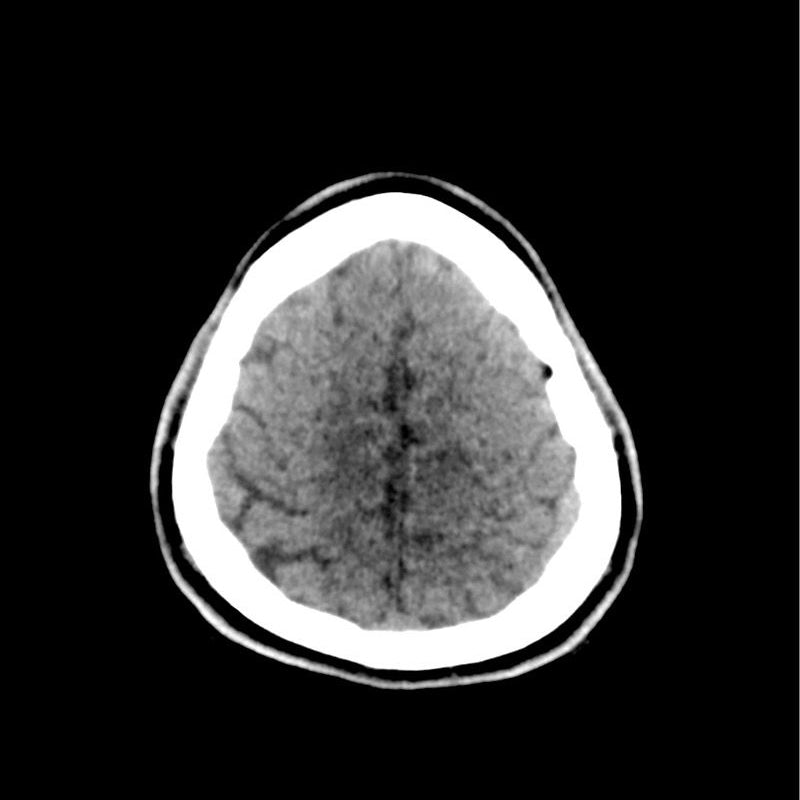

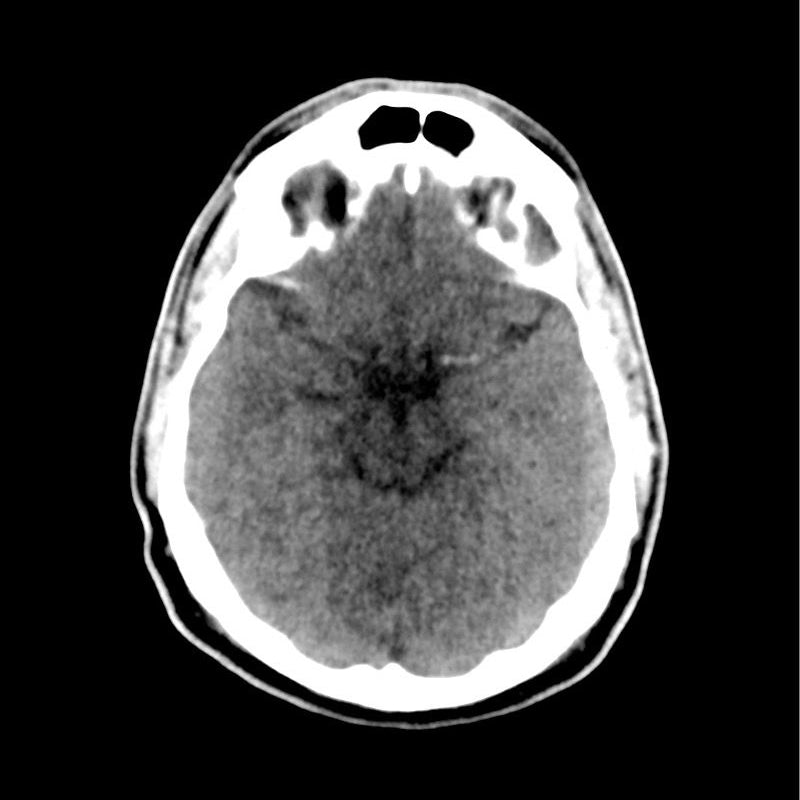

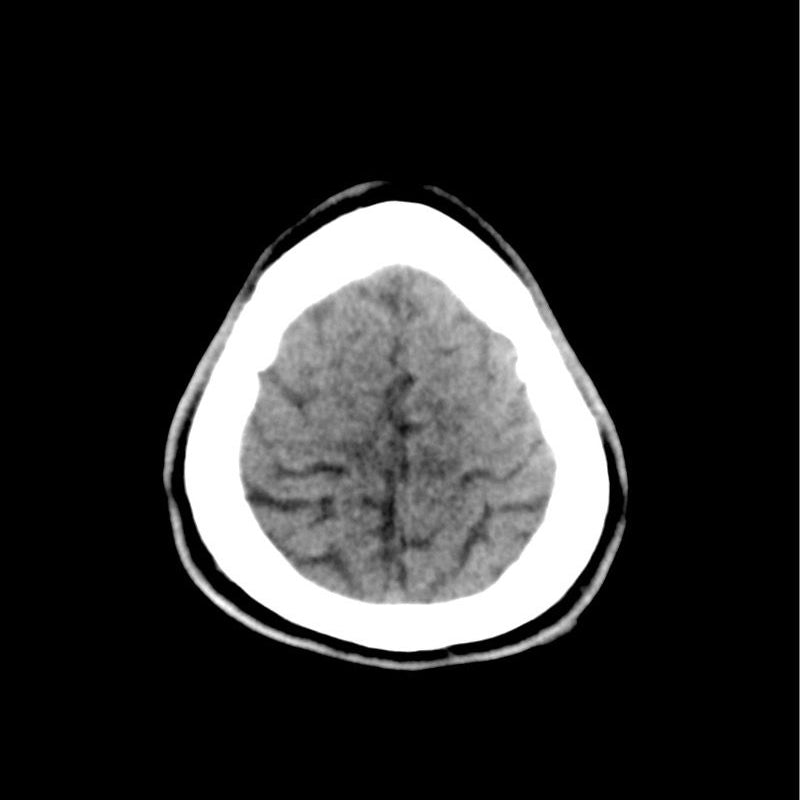

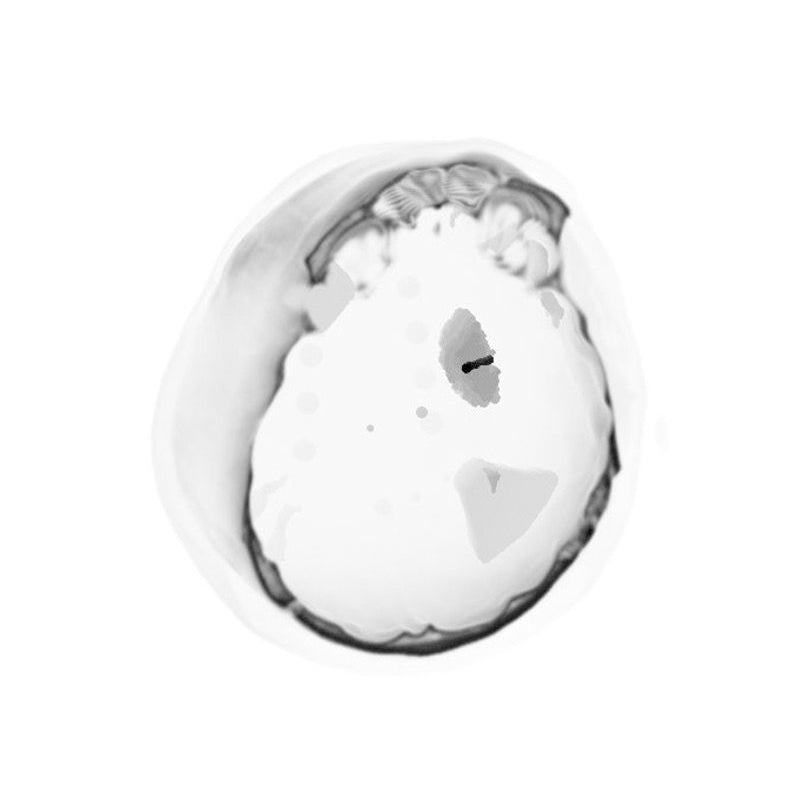

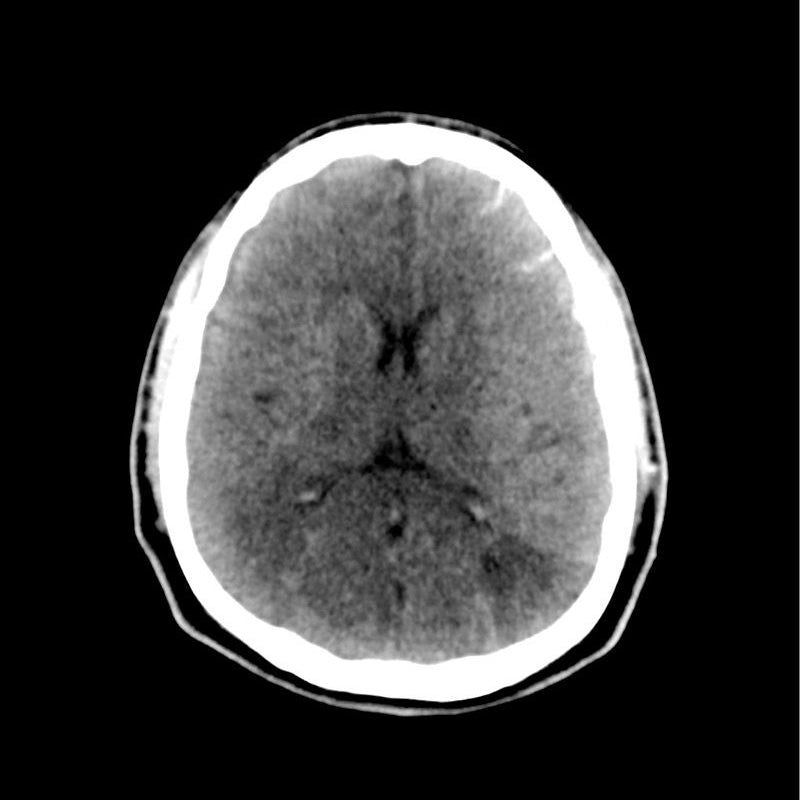

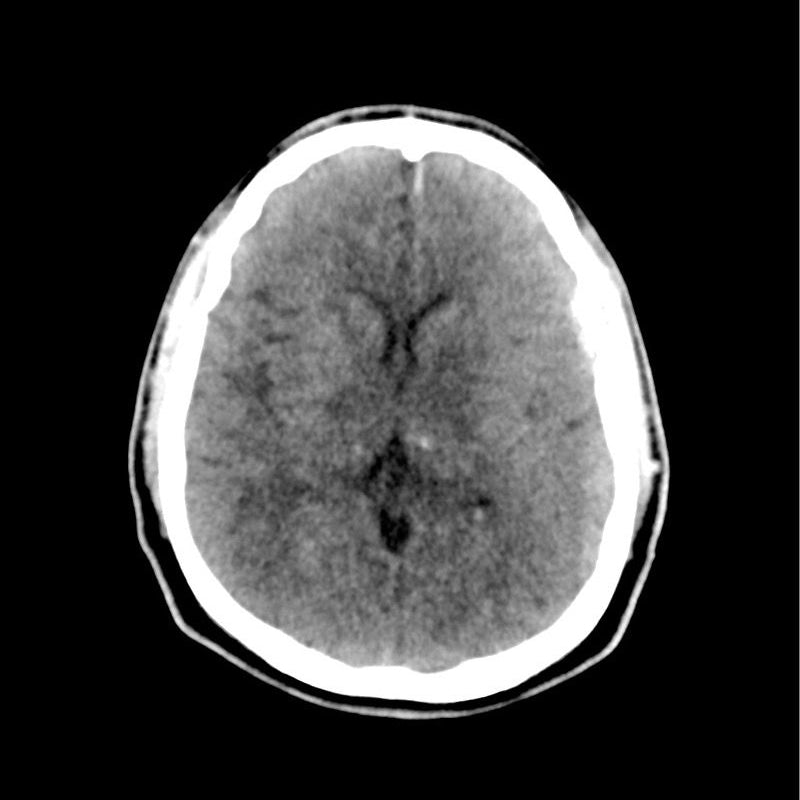

Bleeding patterns include subarachnoid hemorrhage, subdural hemorrhage of varying ages, intraventricular hemorrhage, and intracerebral hemorrhage. The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and AI-enabled diagnosis. It is also suited for training purposes.
The phantom provides a detailed and realistic simulation of common brain pathologies, soft and bone tissues. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.

    SPECIFICATIONS:
  • Size: Approx. 19 x 21 x 15 cm
  • Weight: Approx. 2640 g
  • Base material: Cellulose-polymer composite
  • Optimal tube voltage: 120 kVp (adaptable upon request)
DIAGNOSTIC FEATURES:
    Stroke

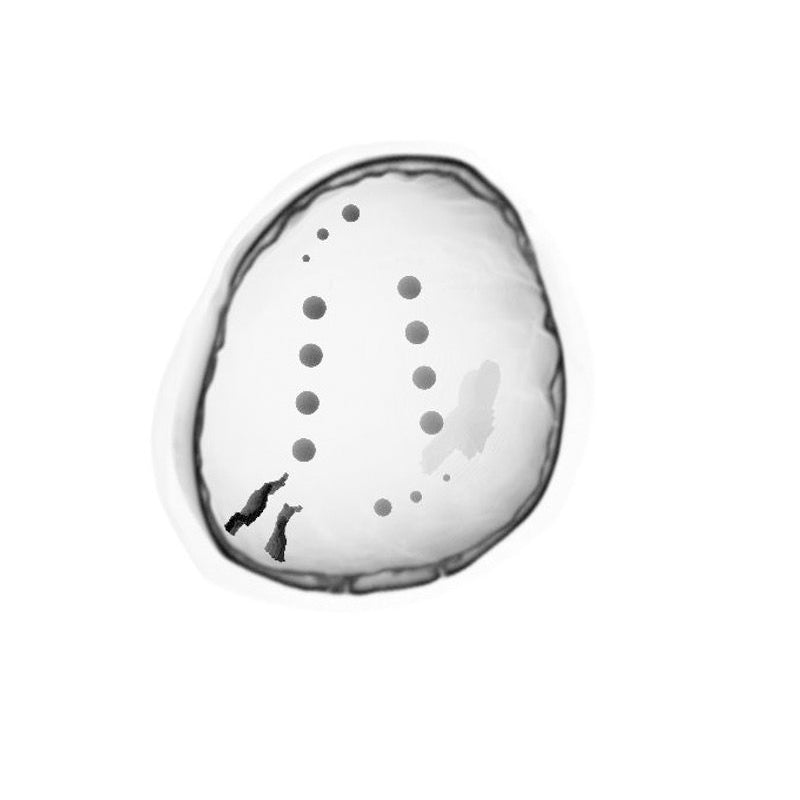

  • Hyperdense middle cerebral artery (MCA) and disappearing basal ganglia on the left side
  • Watershed infarcts in middle/posterior (MCA/PCA) and anterior/middle cerebral artery (ACA/MCA) territories

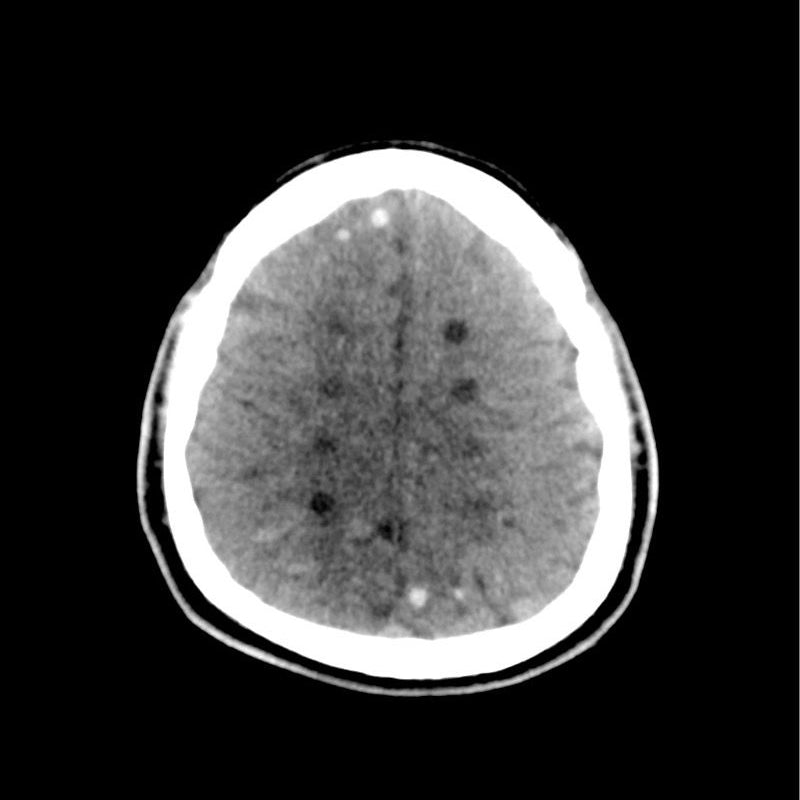

  • 8 lacunar infarcts of varying ages
    Hemorrhage
  • Subarachnoid hemorrhage (2 territories)
  • Subdural hemorrhage of varying ages (3 territories)
  • Intraventricular hemorrhage (left lateral ventricle)
  • Intracerebral hemorrhage (2 thalamic, 6 subcortical)
    General indications:
  • The phantom is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time.
  • The phantom is coated with a protective layer. If the protective layer is undamaged, the phantom can be cleaned using a damp cloth (water or mild detergent)
  • Protect from direct sunlight.
  • Maintain a storage temperature of 10°C to 30°C. If the phantom is exposed to temperatures below -10°C or above 45°C, it can be severely damaged.
  • The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
  • The phantom is not certified as medical device.
  • Air voids are filled with cellulose-polymer composite of approx. -160 HU.
Download:
Brochure

Made by PhantomX and sold by GTSimulators.

GTSimulators by Global Technologies
PhantomX Authorized Dealer

Product Dimensions and Weight:
  • Size: Approx. 19 x 21 x 15 cm
  • Weight: Approx. 2640 g


    General indications:
  • Phantoms are manufactured of a cellulose-polymer composite material with similar properties to hardwood. If treated carefully, they will last for a long period.
  • The phantoms are coated with a protective layer. If the protective layer is unharmed, the phantoms can be cleaned using a damp cloth (water or mild detergent).
  • Protect from direct sunlight.
  • Maintain a storage temperature of 10 °C to 30 °C.
  • If the phantom is exposed to temperatures below -10 °C or above 45 °C, it can be seriously damaged.
  • The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
  • Air voids are filled with cellulose-polymer composite of approx. -80 HU.
