Anatomical Rat Phantom for X-Ray CT and MRI imaging

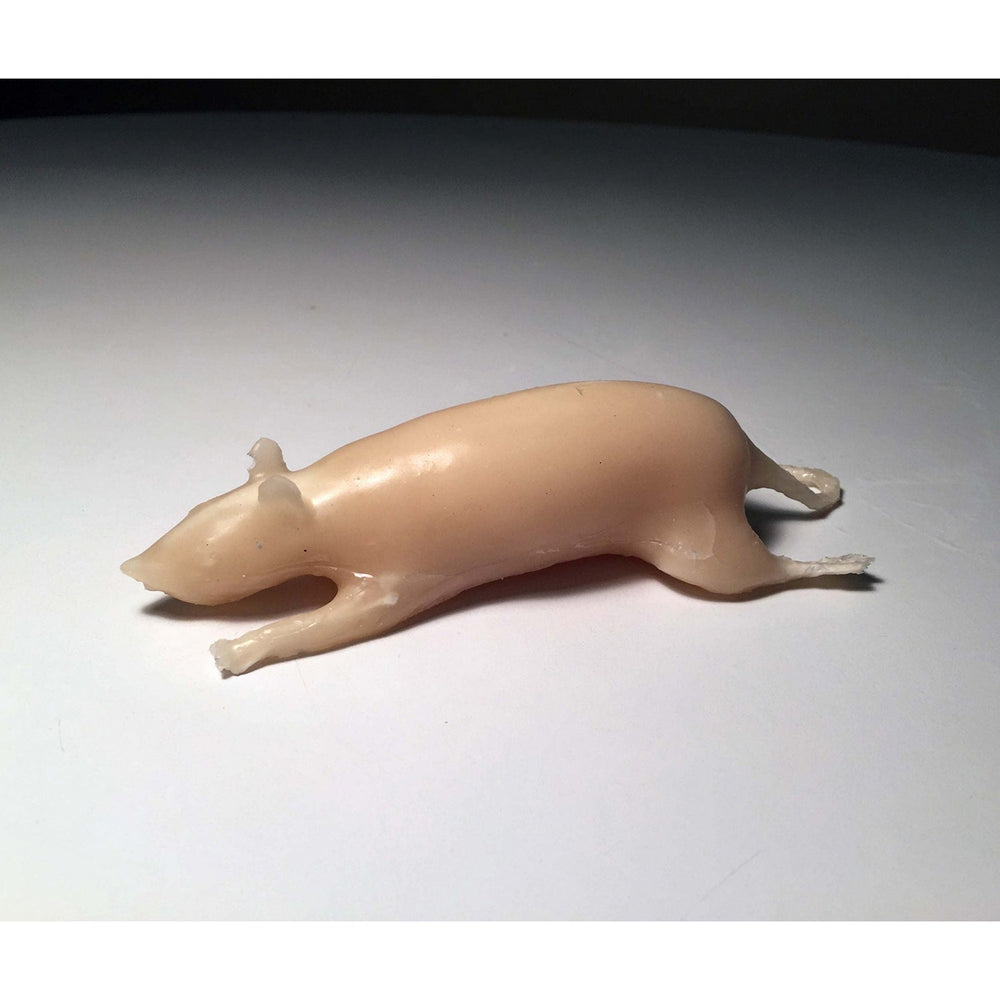

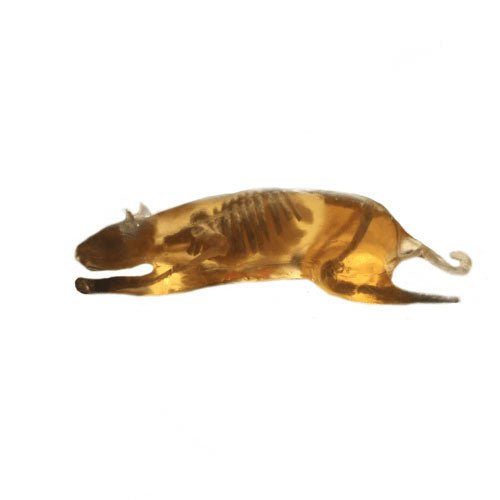

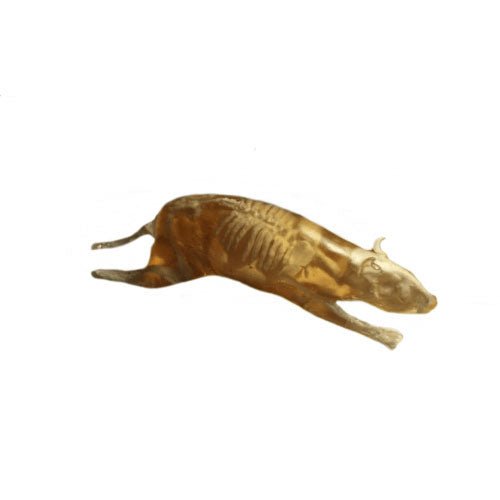

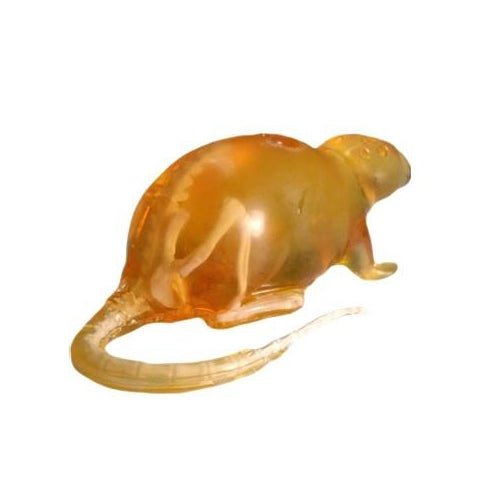

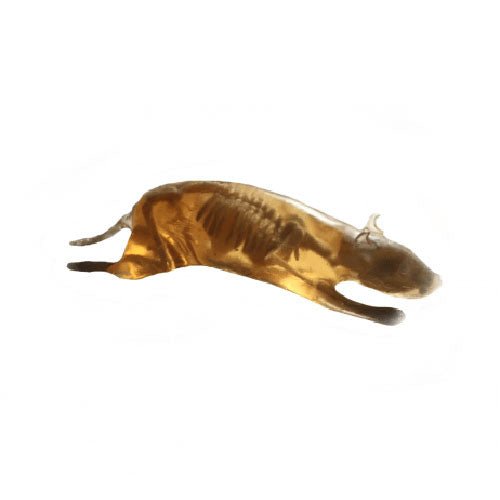

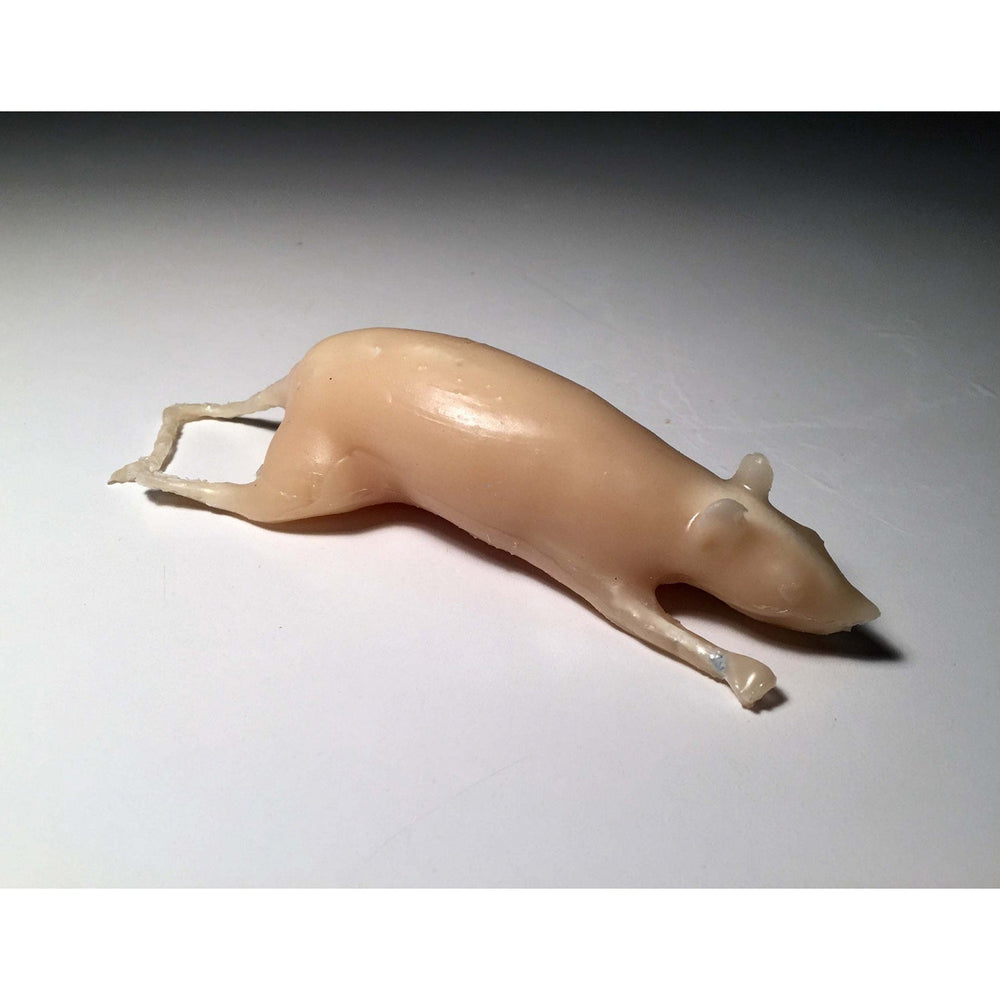

Anatomical Rat Phantom is designed based on an average anatomy of a rat/mouse and it is suitable for X-Ray/CT and MRI imaging methods. It can be customized to excel in a selected imaging modality which makes it is a powerful tool that can be used for testing and calibration-related work of various medical imaging devices.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values which makes this product to be best fit for any T2-weighted MRI imaging methods. Very good results can be also achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods but the T1 values are less realistic and they are within the range of about 100 ms.
The phantom can be customized in size and shape. The internal features can also be modified in terms of shape and properties to fit the needs of any particular bio-medical research project.
Anatomy

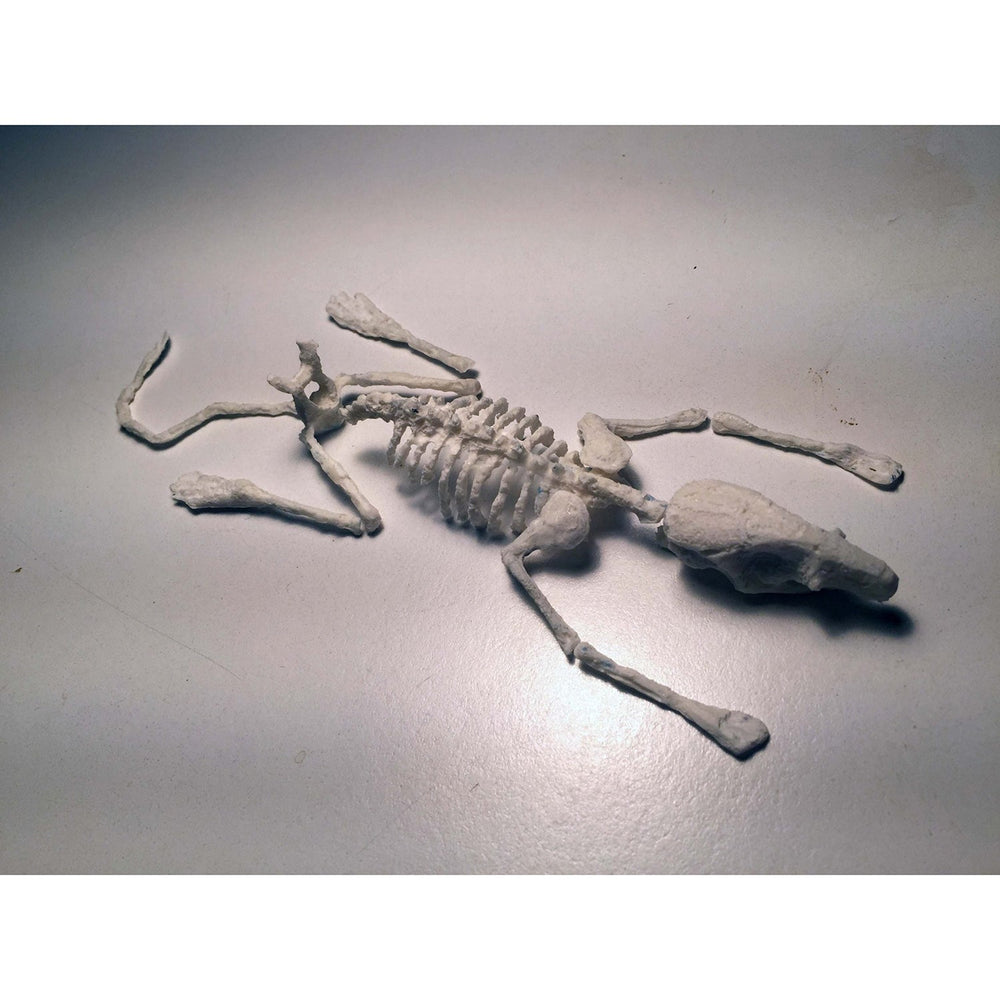

- Complete Rat Skeleton
- Heart
- Lungs
- Diaphragm
- Liver
- Kidneys
- Pancreas
- Spleen
Included In Order:
- Rat (Anatomical) Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Dimensions and Weight:
Phantom:- Size: 7 x 3 x 2 in (approx.)
- Weight: 1 lb (approx.)
- Size: 10 x 8 x 6 in (approx.)
- Weight: 3 lbs (approx.)
Materials Used:
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Ceramic-reinforced urethane-based composite material
Design
Technical Properties:
| Type of Tissue | Averaged HU Value | Density [g/cm3] | Hardness [Shore OO] |
|---|---|---|---|
| Soft Tissue | 134 | 1.03 | 35 |
| Bones | 2397 | 2.31 | N/A |
| Lungs | -908 | N/A | N/A |
| Organs | 83 | 1.01 | 35 |
