Adult Full Human Body Phantom for X-Ray, CT Scan and Ultrasound

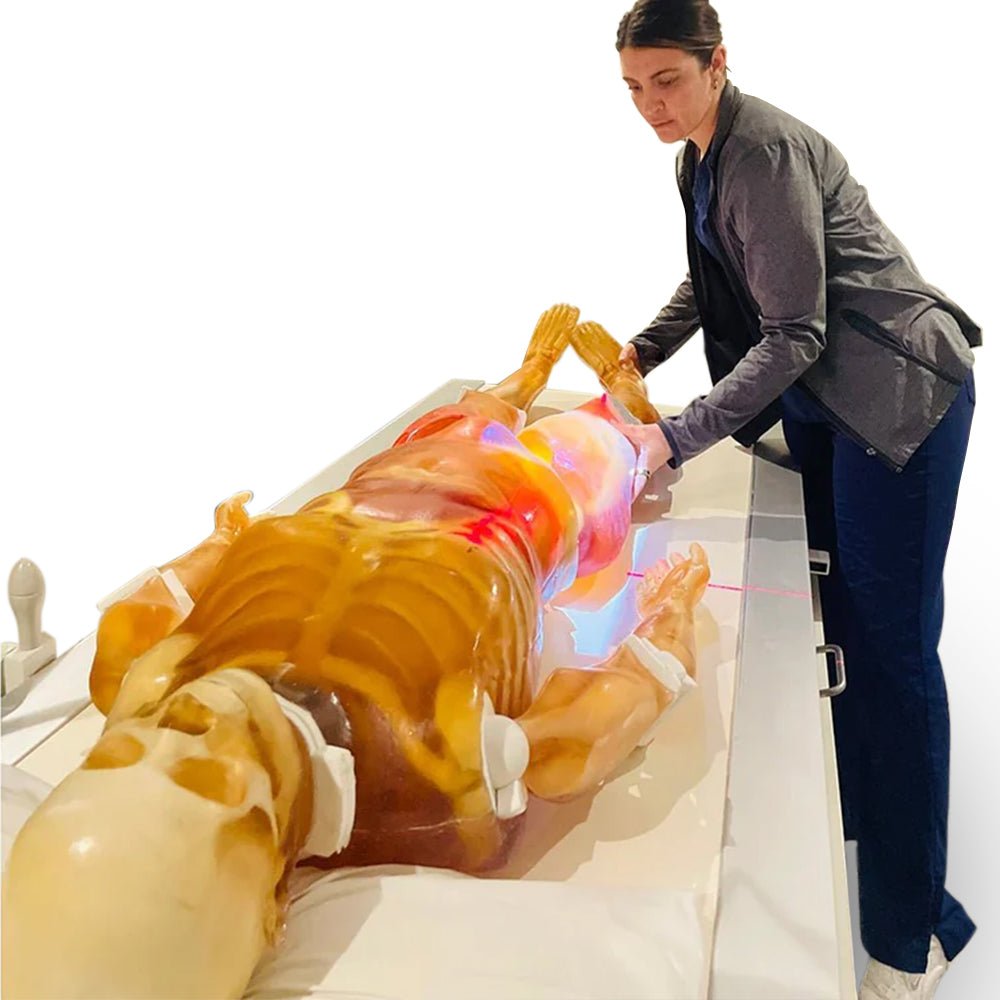

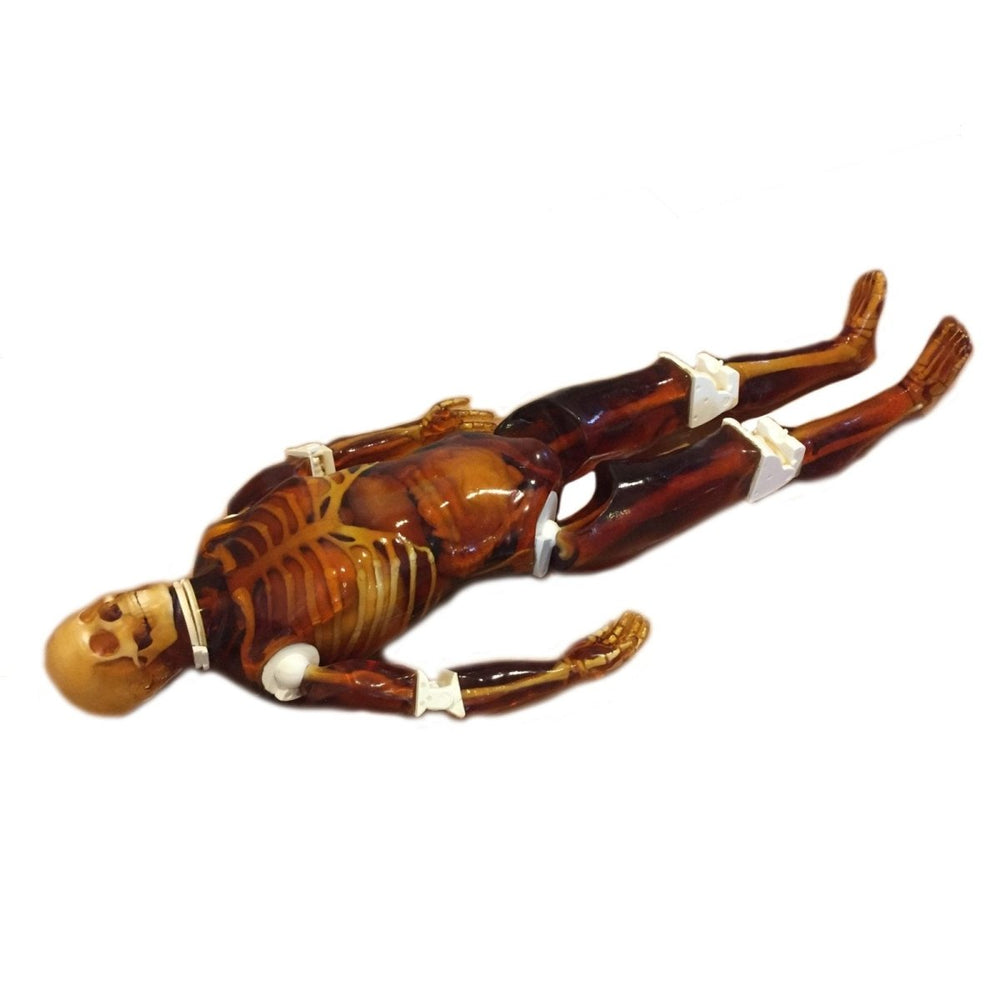

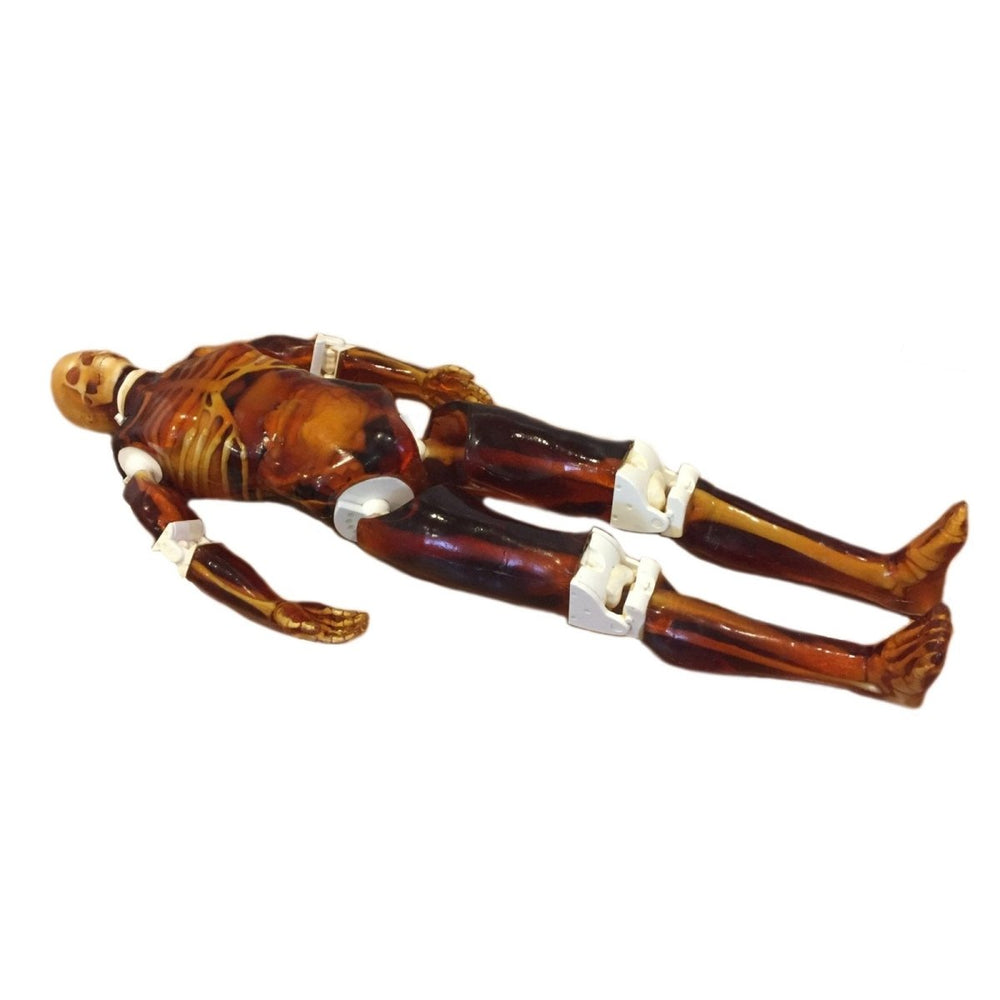

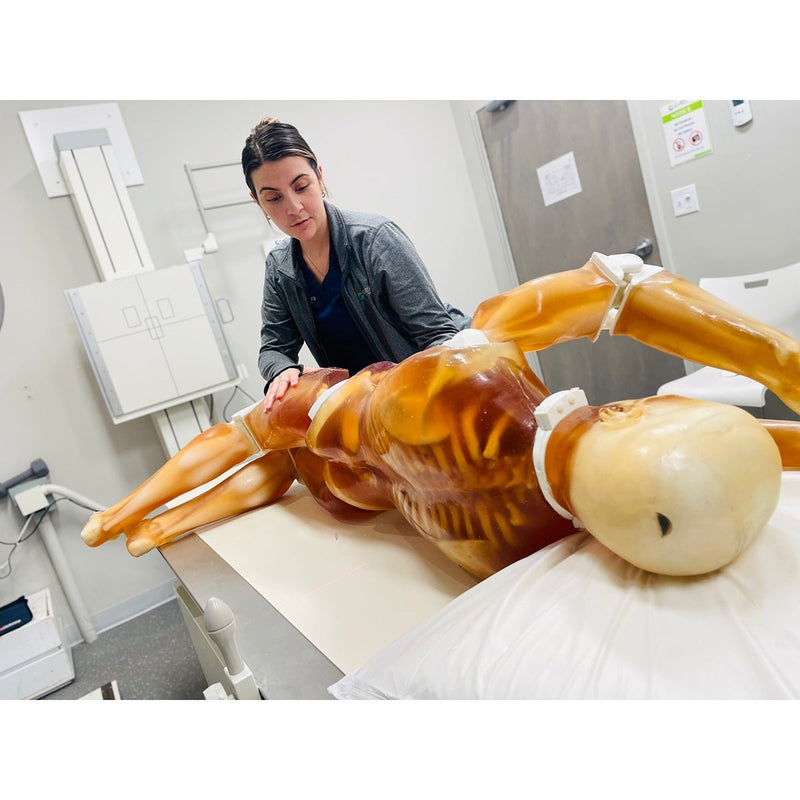

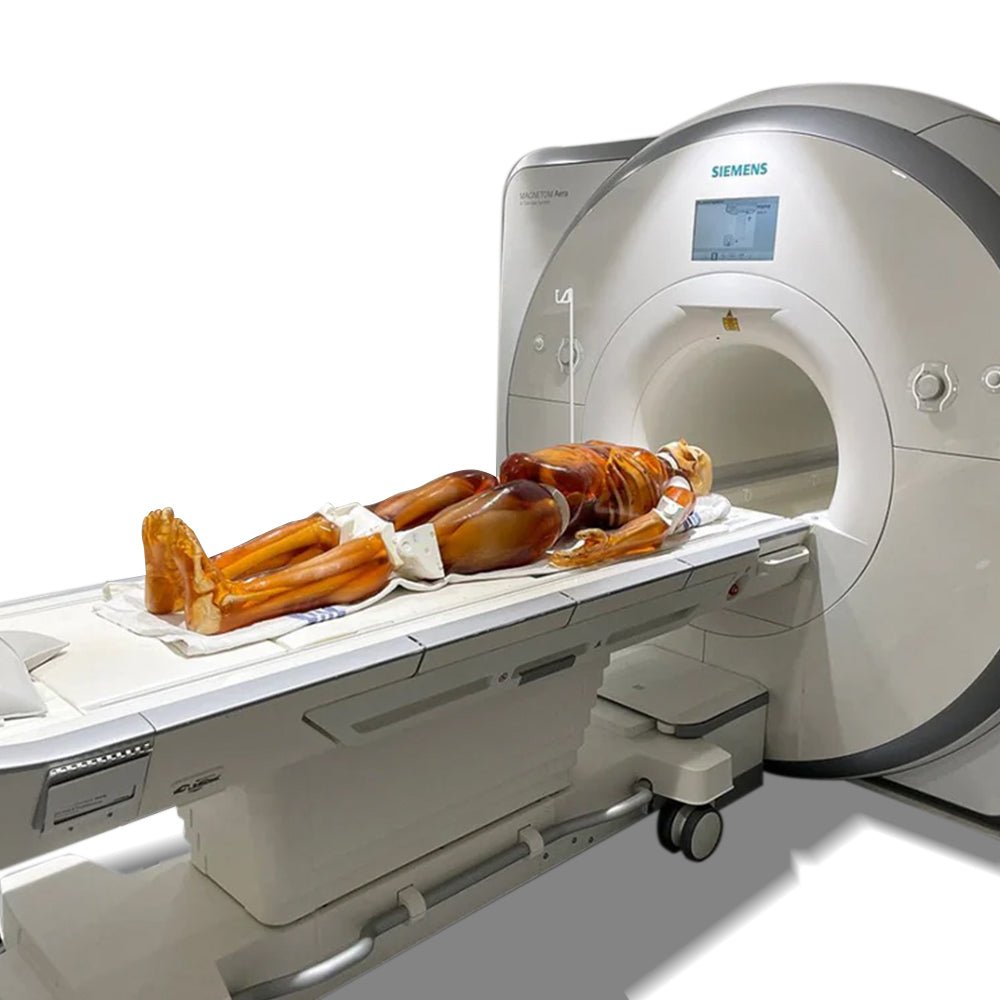

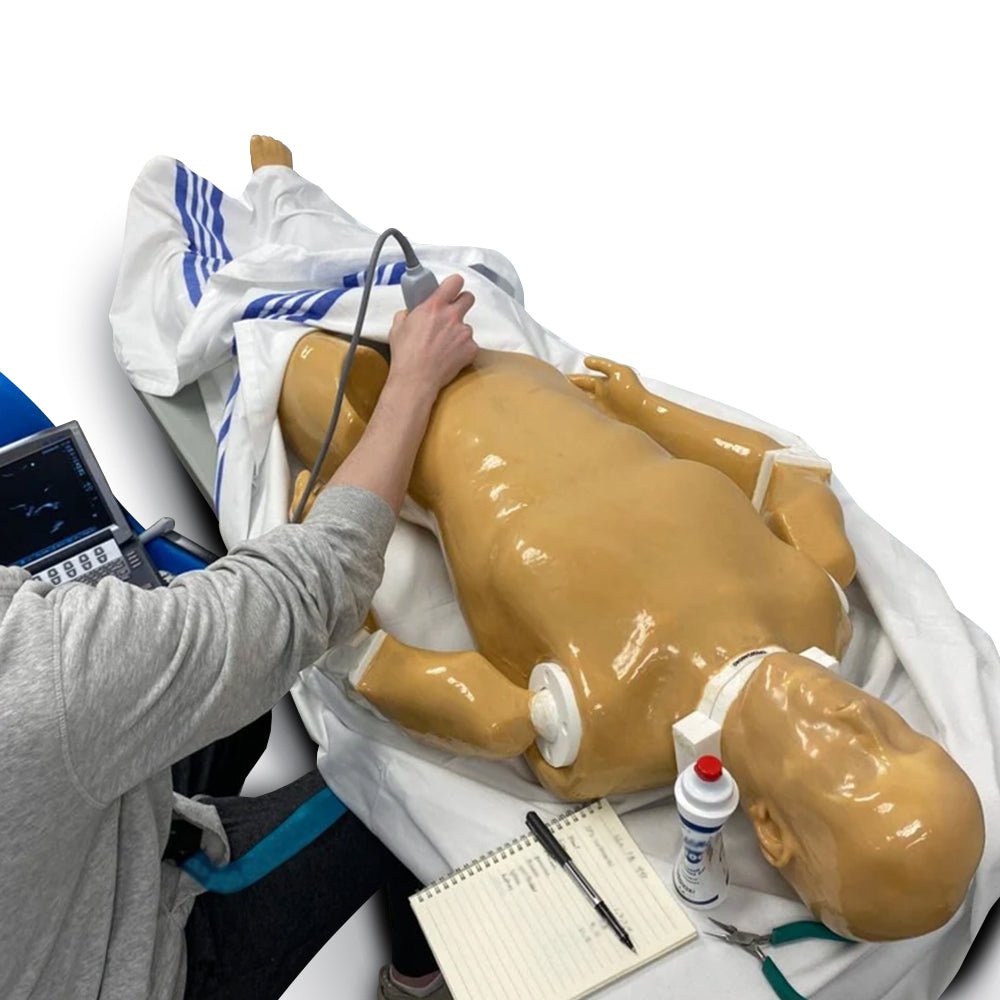

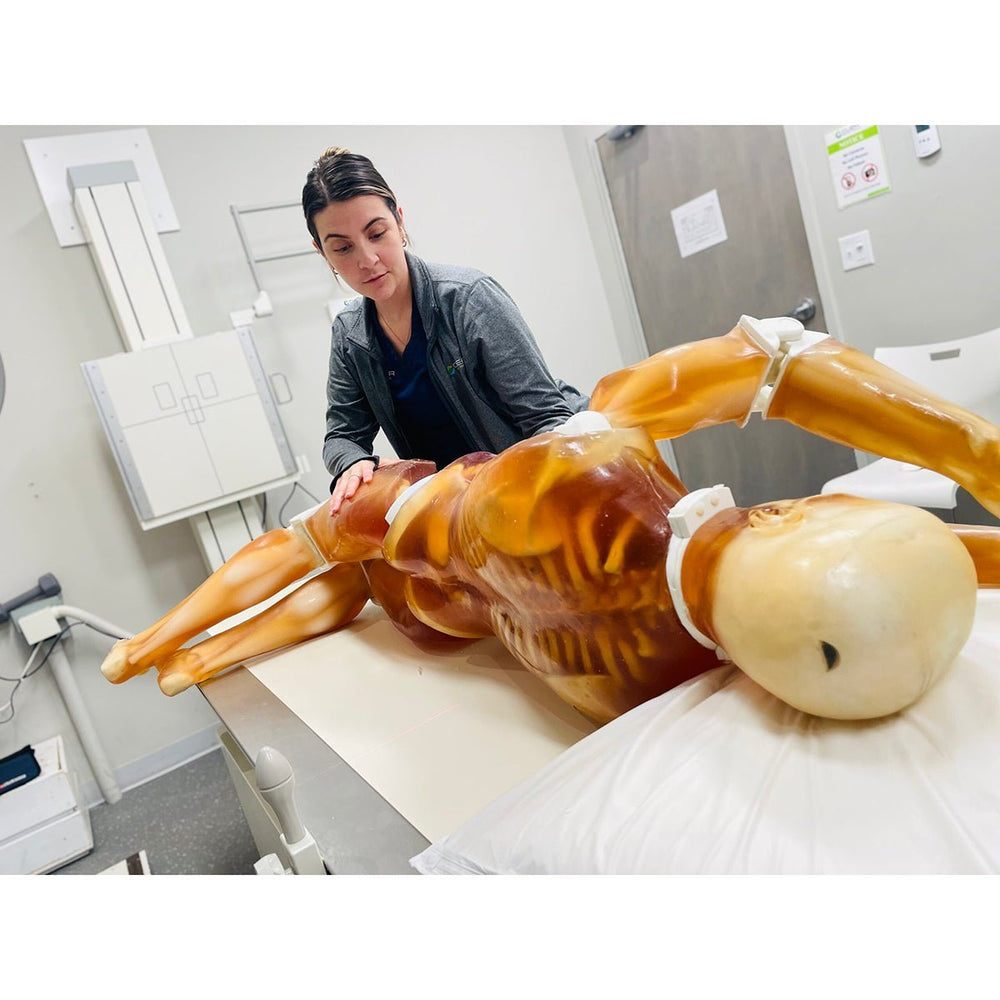

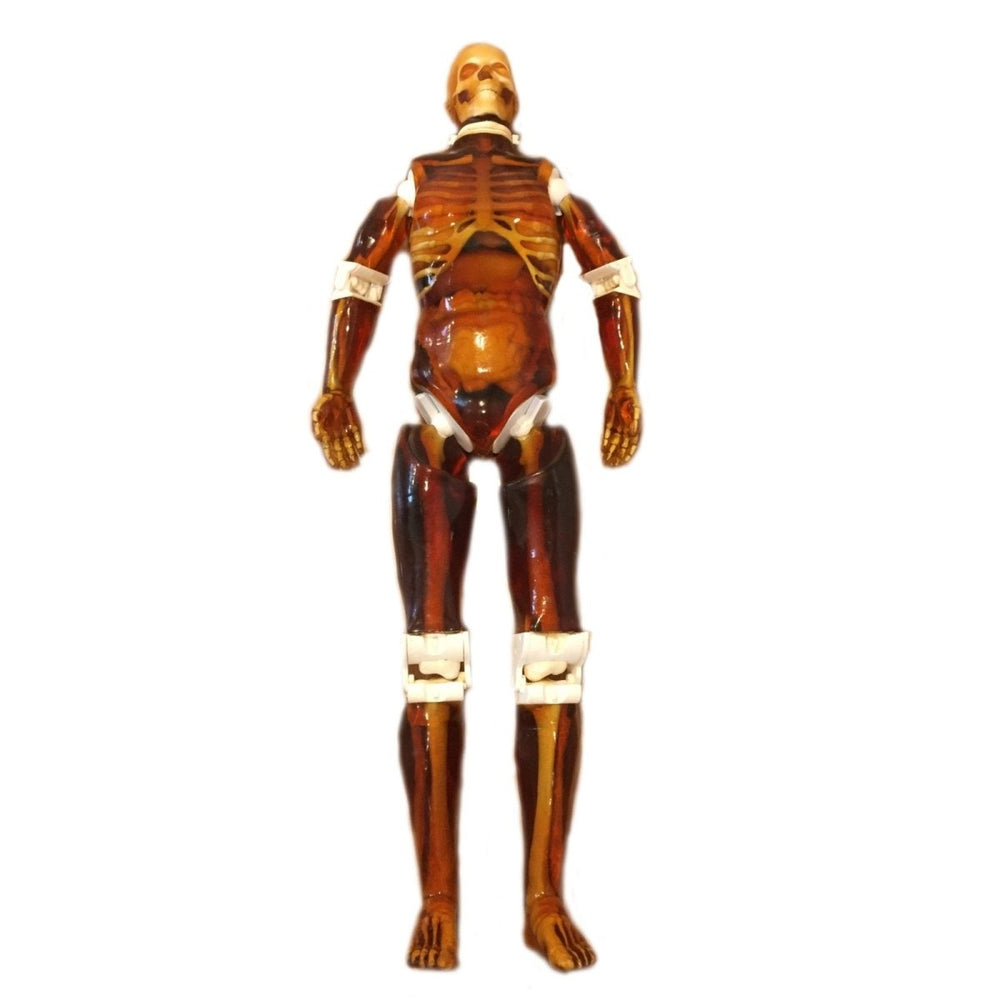

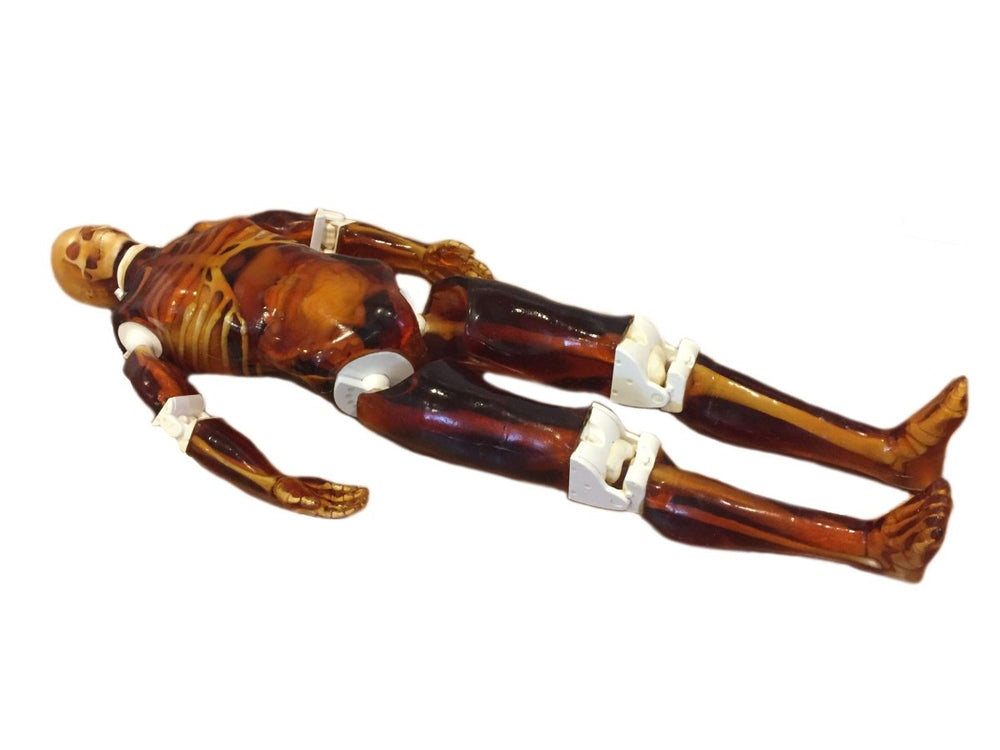

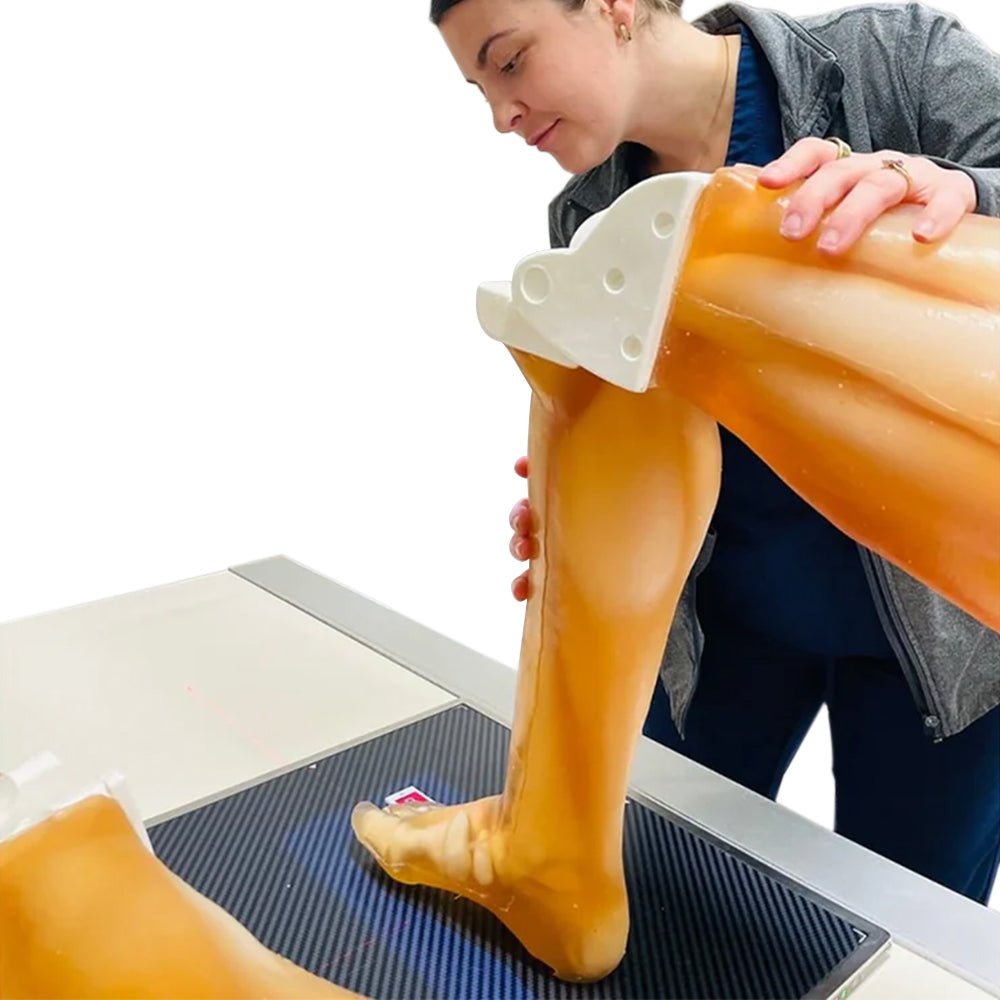

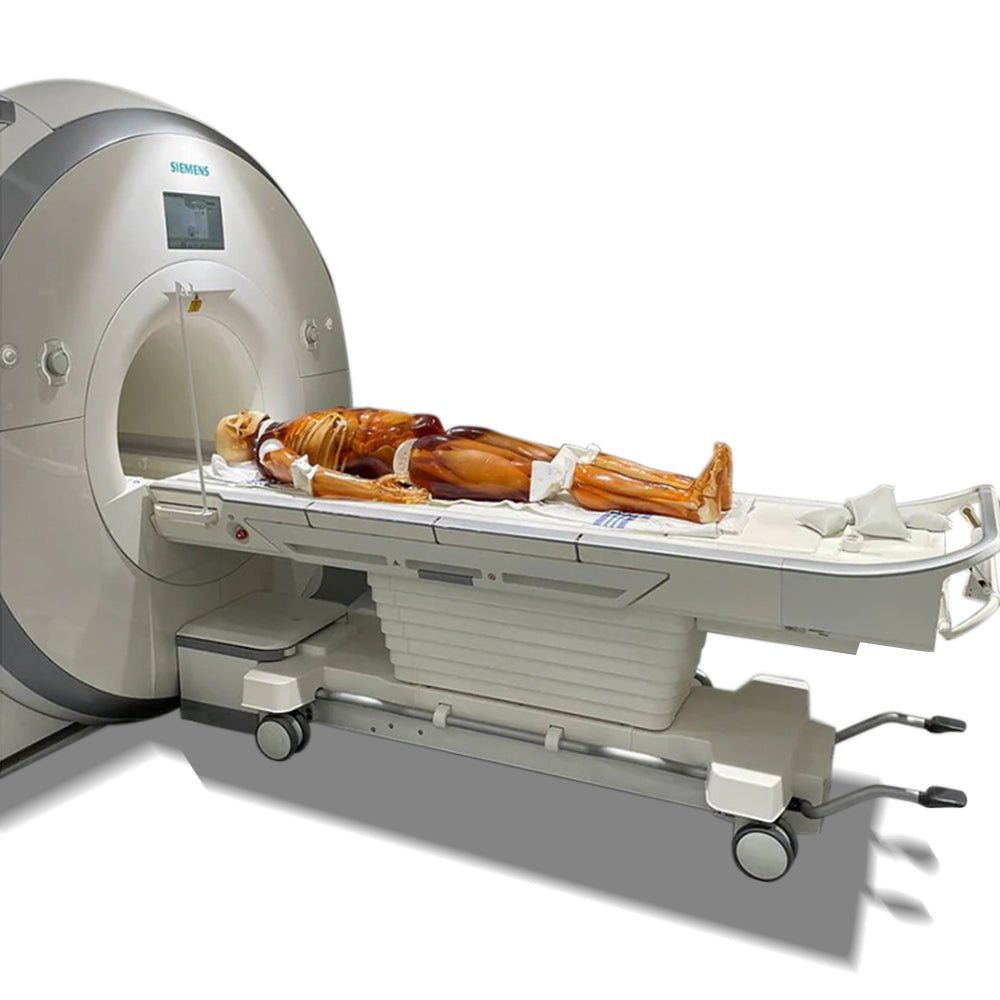

The Adult Full Body Phantom is a versatile training product compatible with X-Ray/CT and ultrasound. It is primarily used for training and demonstrating patient positioning techniques in radiology, providing hands-on experience with diagnostic imaging. The phantom is based on the average adult male body, weighing 70 kg (154 lb) and measuring 175 cm (69 in) in height. The bones have a realistic three-layered structure with adjustable inner porosity. It can be customized with various pathologies and is available in translucent or skin-colored versions.

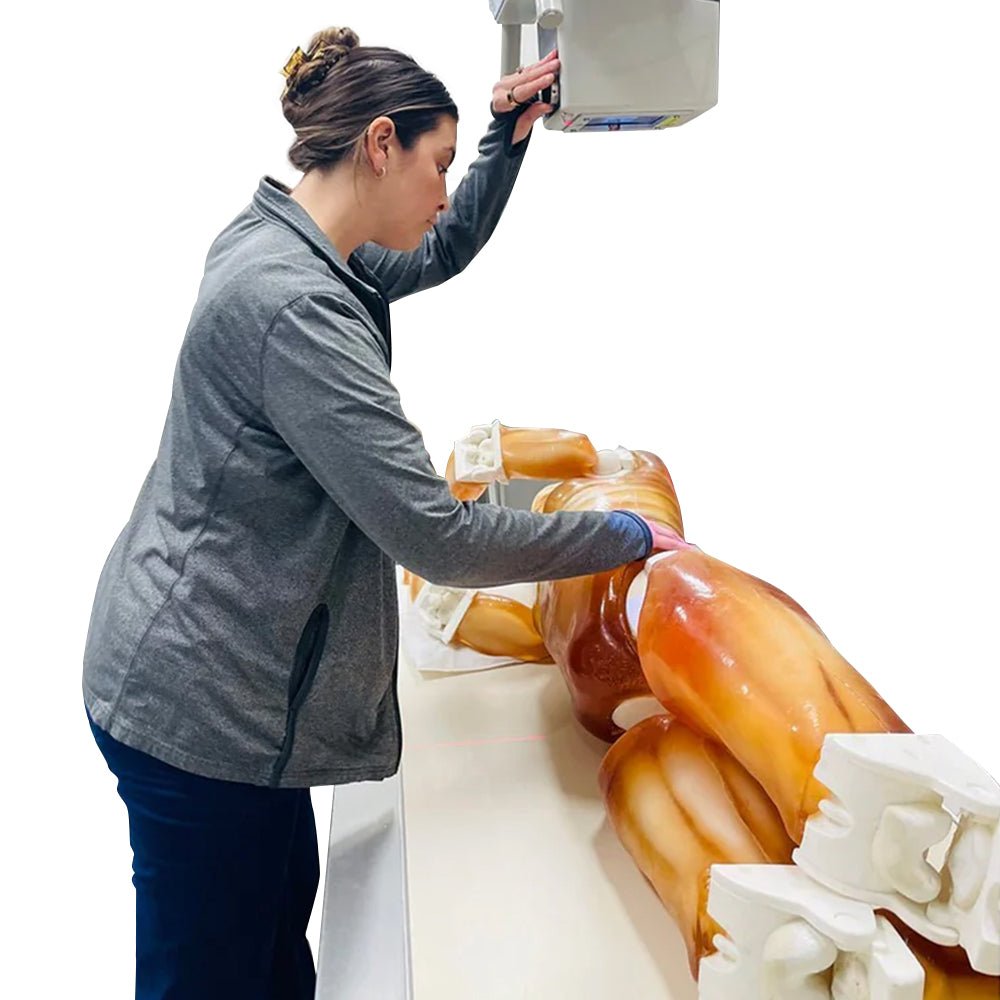

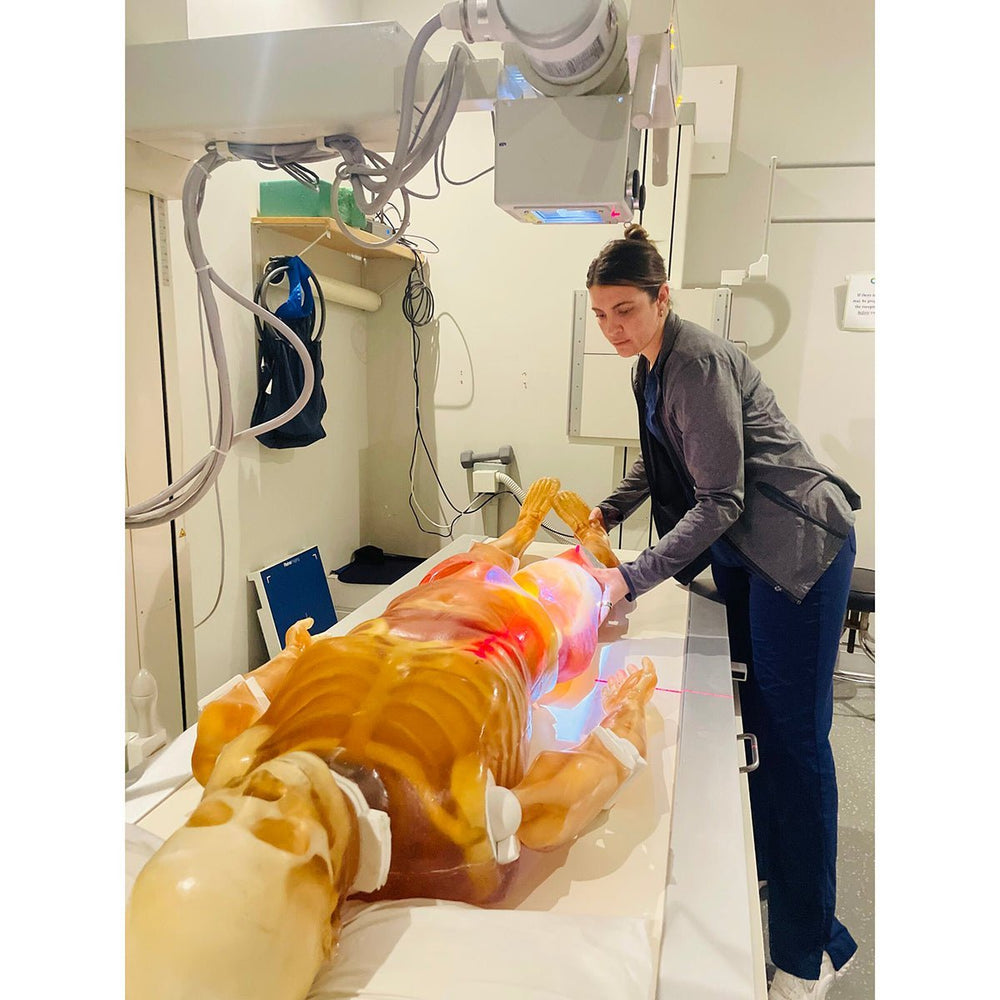

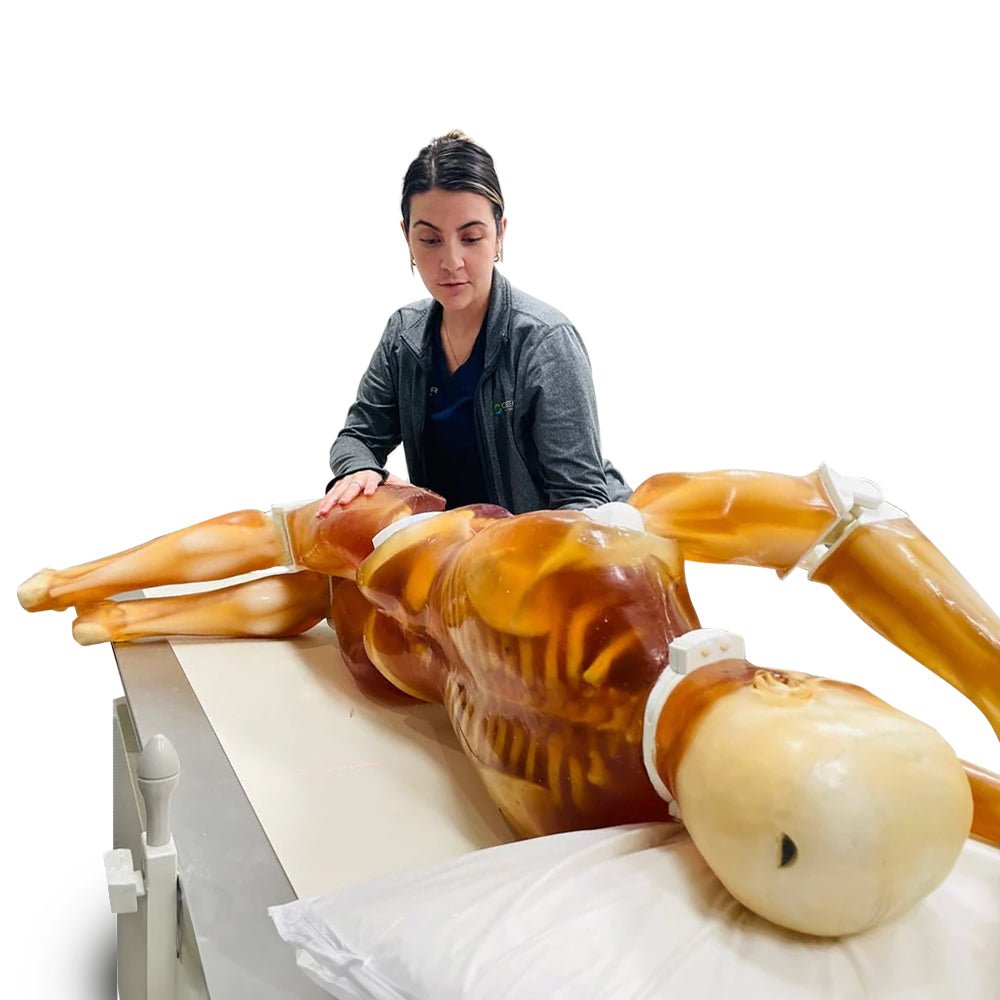

This Adult Full Body Phantom is an X-Ray/CT and US-compatible training product. The primary application of this phantom is to train and demonstrate various patient positioning techniques in radiology. Other uses include hands-on experience with diagnostic imaging techniques and visual evaluation to find optimal scanning conditions.

The model of this phantom is based on an adult male body that weighs about 70 kg (154 lb) and measures 172 cm (69 in) in height.

The bones have a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. Customizable with different pathologies (lesion, tumor, infection, abnormality) upon request. This positioning phantom can be ordered in a translucent or skin-colored version.

PLEASE NOTE: Muscles in the leg and arms are only included in TPS-FB-A04.

Anatomy

  • Full Human Body (10 Parts)
  • Realistic Body Tissue-Mimicking Material
  • Rotatable Shoulders (360° Around and 180° Sideways)
  • Movable Hip, Knee, and Elbow Joints
  • Detachable Head, Torso, and Limbs

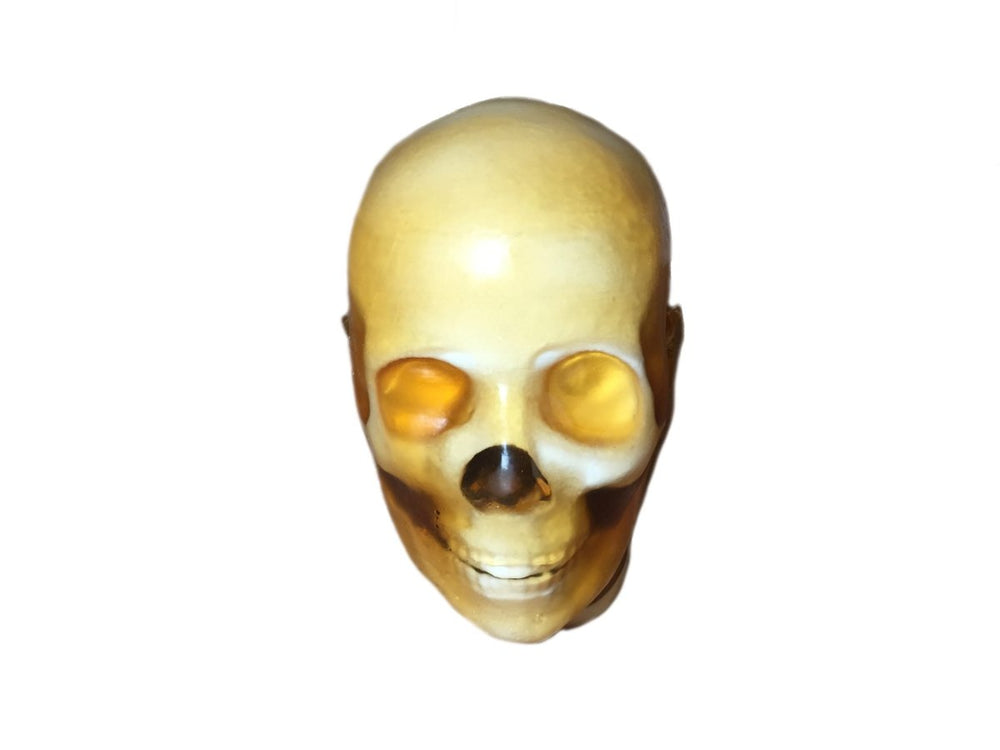

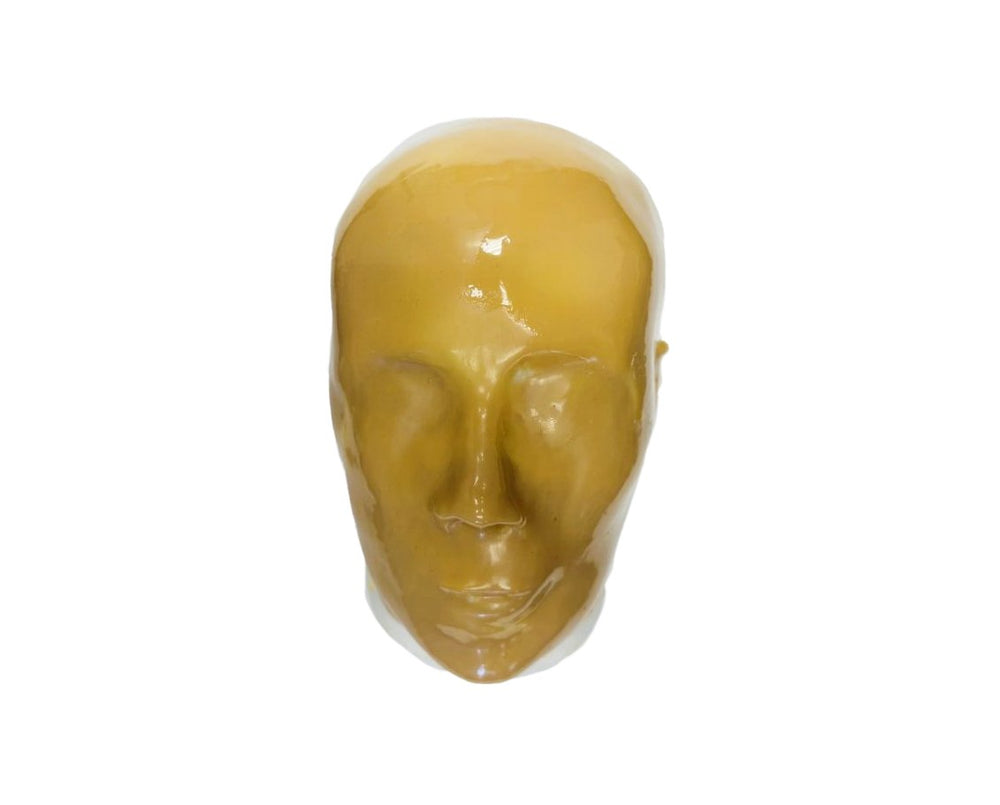

  • Adult Head
    • Skull
    • Brain
    • Brain Tissue
    • Grey and White Matter
    • Air Cavities
    • Frontal Sinus with Air Gaps

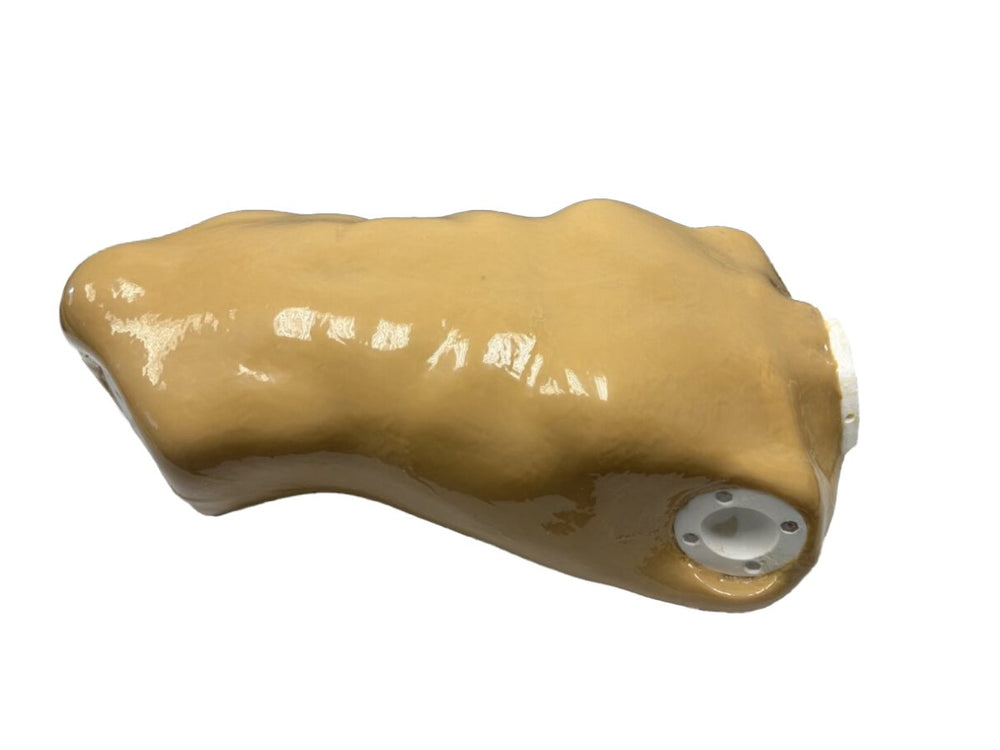

  • Adult Torso
    • Spine
    • Ribcage
    • Shoulders
    • Clavicles
    • Pelvis
    • Trachea
    • Heart
    • Lungs
    • Diaphragm
    • Liver
    • Gallbladder
    • Stomach
    • Kidneys
    • Spleen
    • Pancreas
    • Large and Small Intestines
    • Bladder
    • Prostate

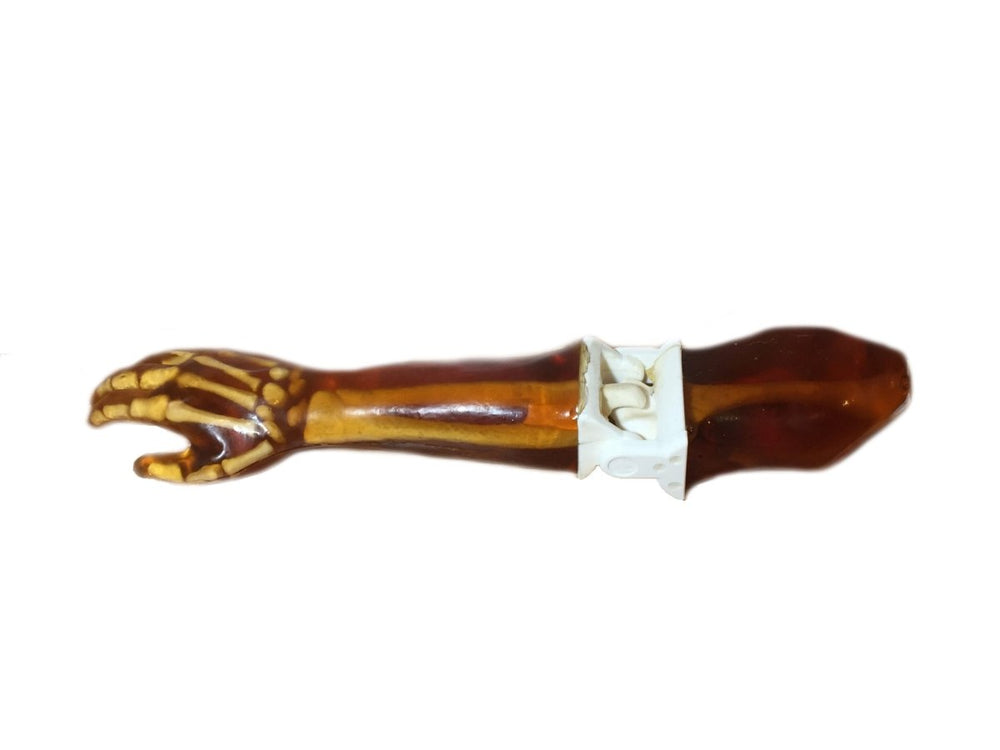

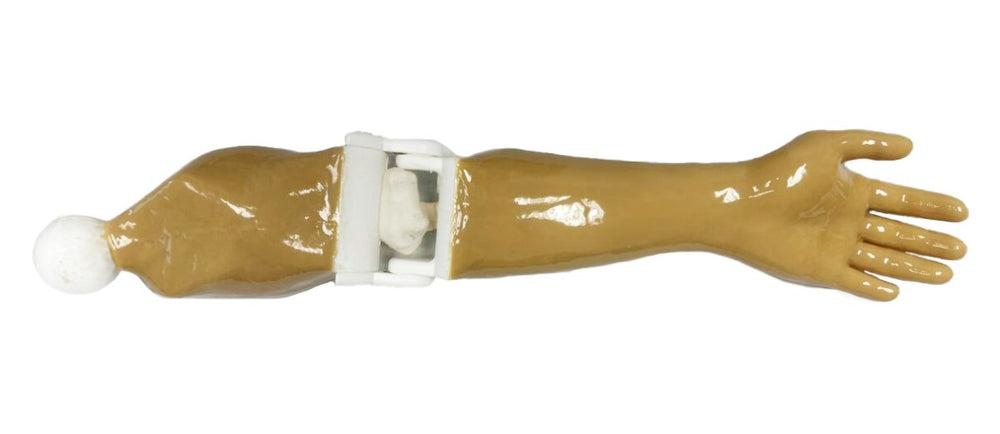

  • Adult Arms
    • Humerus
    • Elbow Joints
    • Radius
    • Ulna
    • Wrist
    • Fingers

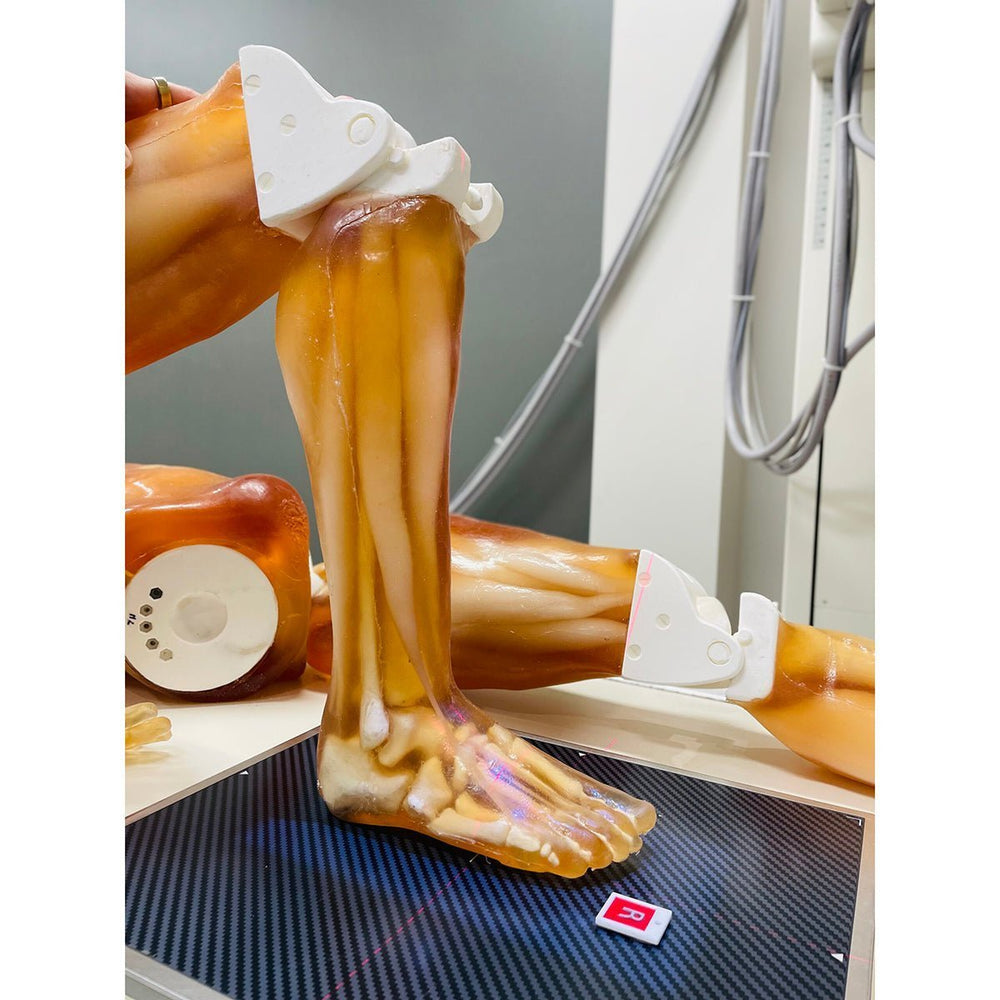

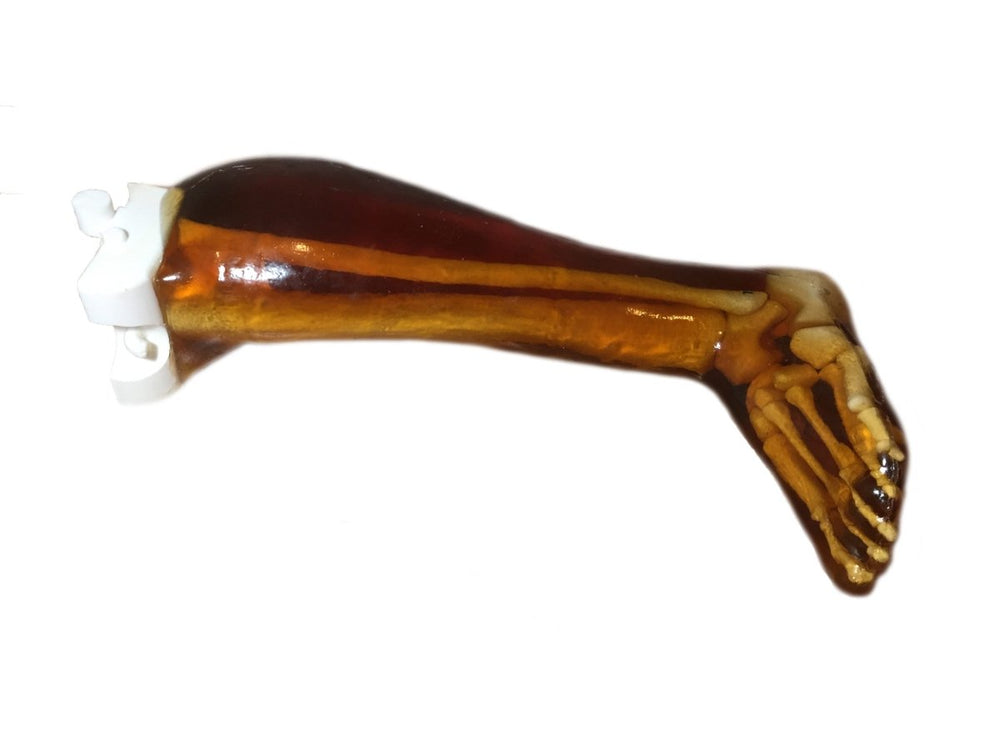

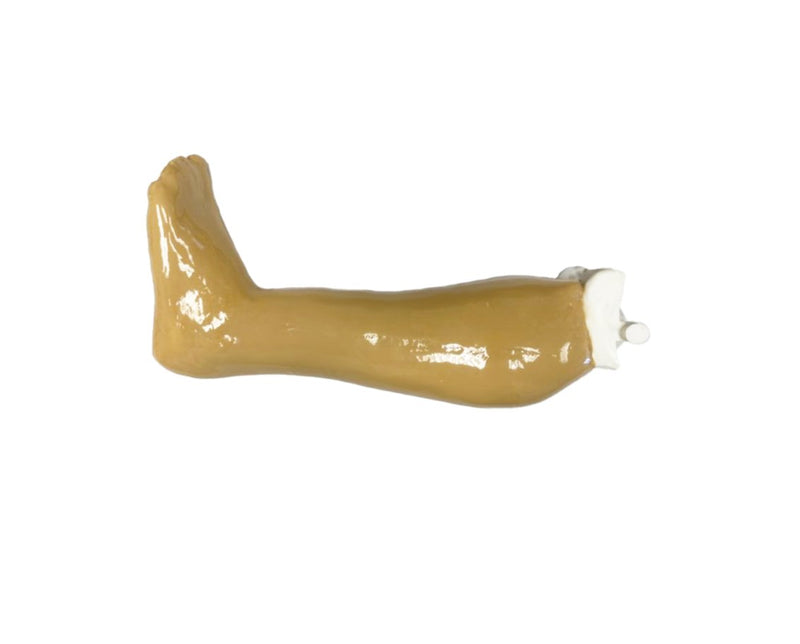

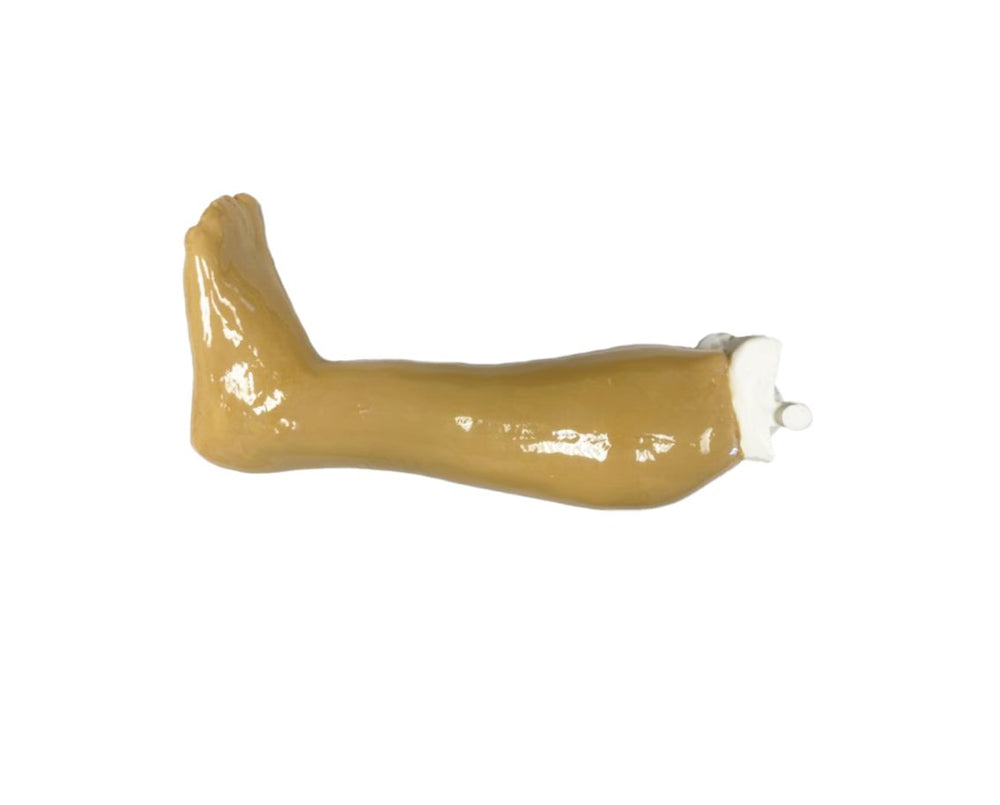

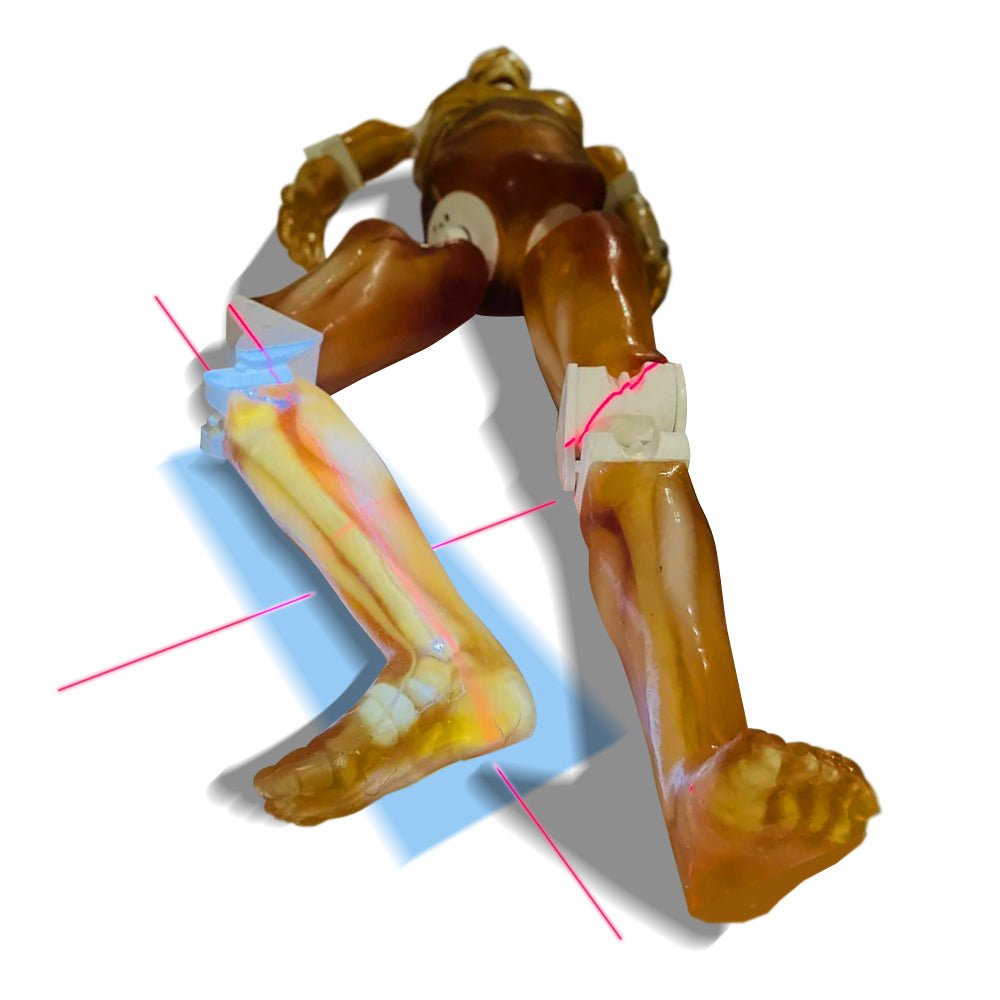

  • Adult Legs
    • Femur
    • Knee Joints
    • Tibia
    • Fibula
    • Foot
    • Toes
  • Transparent or Skin-Mimicking Appearance
Your order will include:
  • Adult Full Body Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
Brochure
manual
Assembly Instructions
Phantom Dimensions and Weight:
  • Size: 69 In (approx.)
  • Weight: 155 lbs (approx.)
Shipping Dimensions and Weight:
  • Size: 47 x 36 x 18 In (approx.)
  • Weight: 199 lbs (approx.)
Materials Used
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

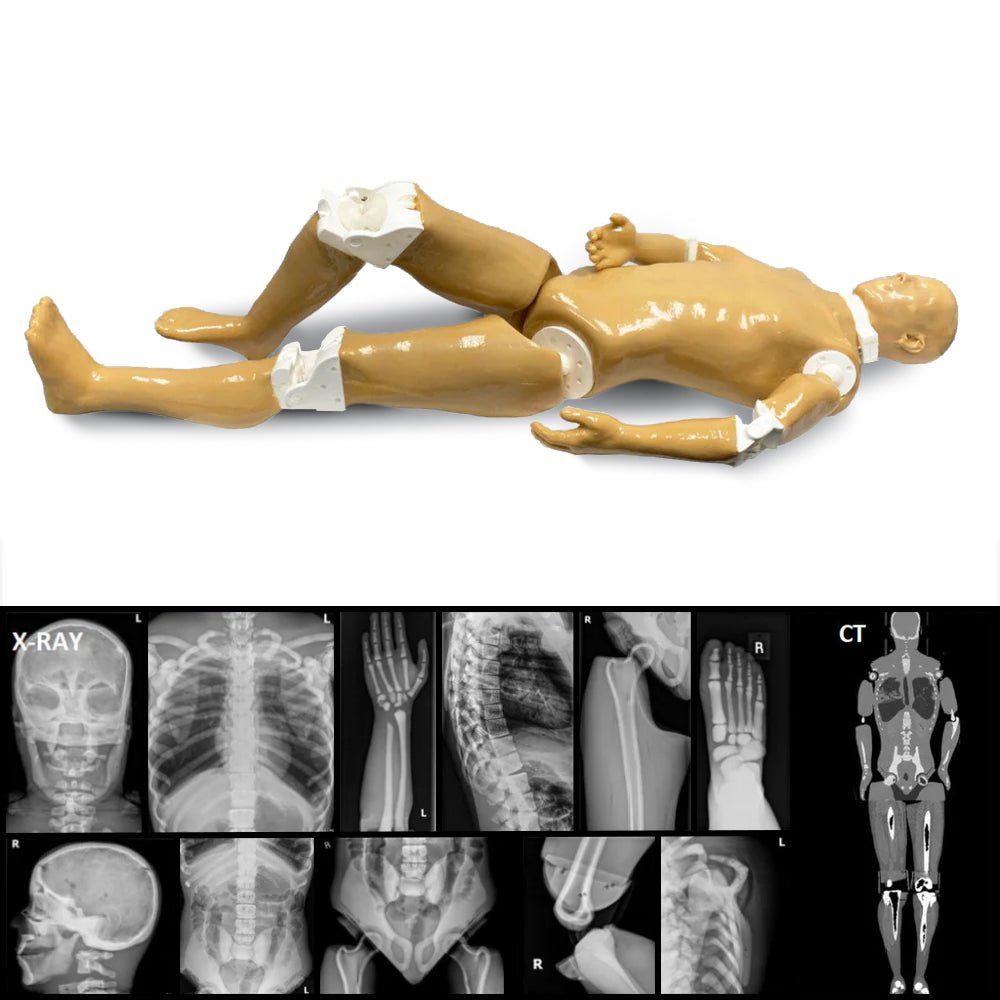

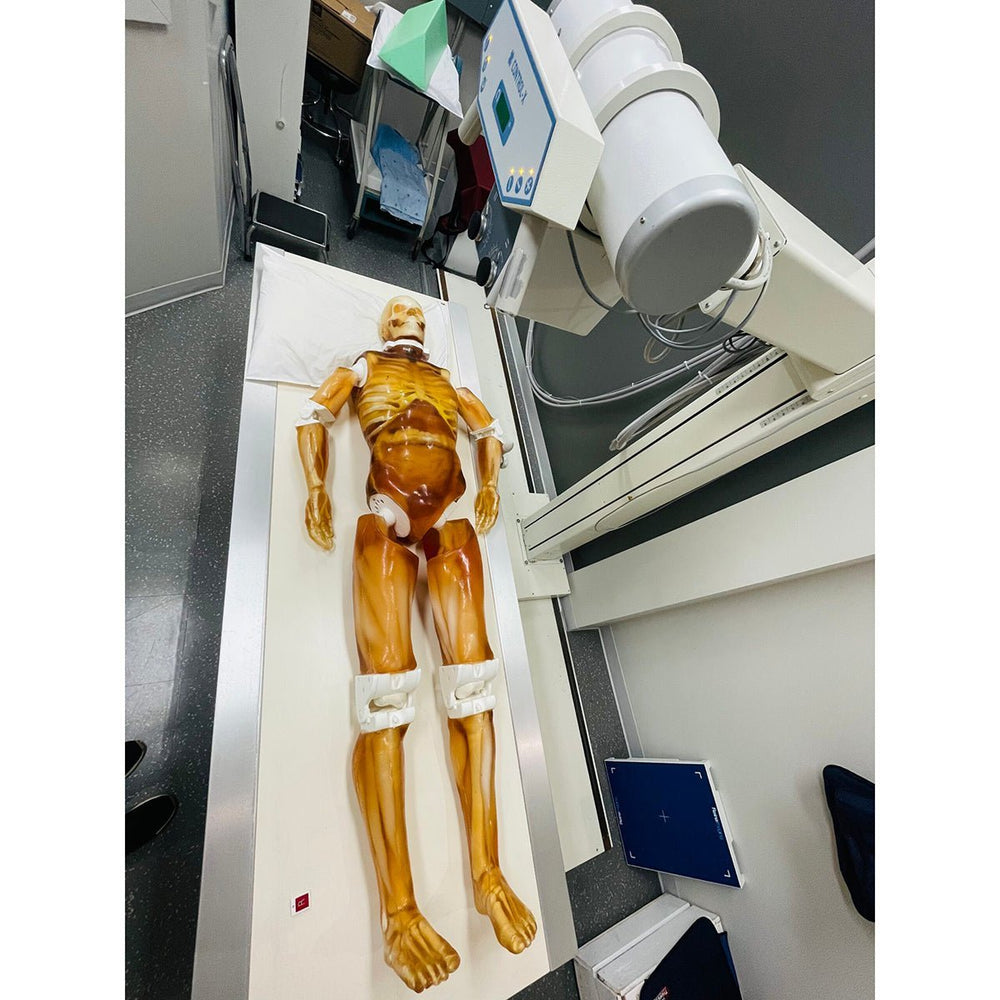

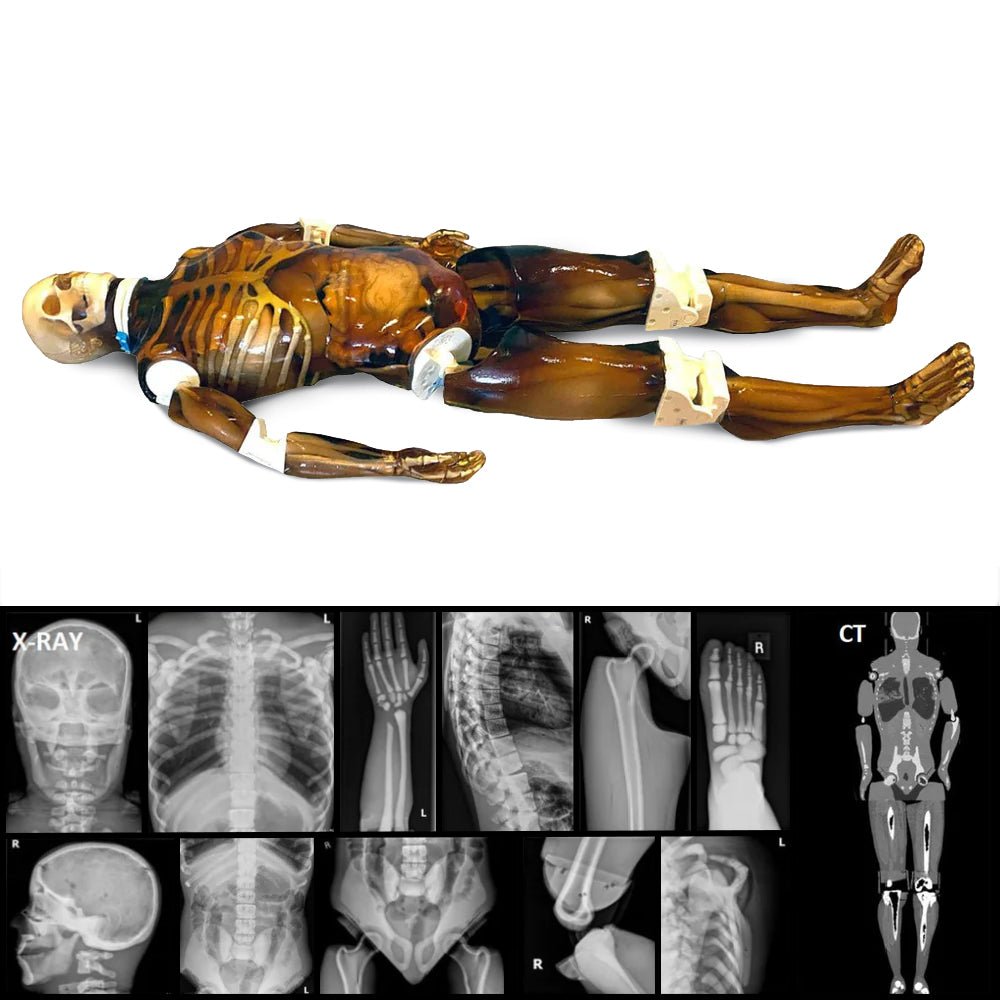

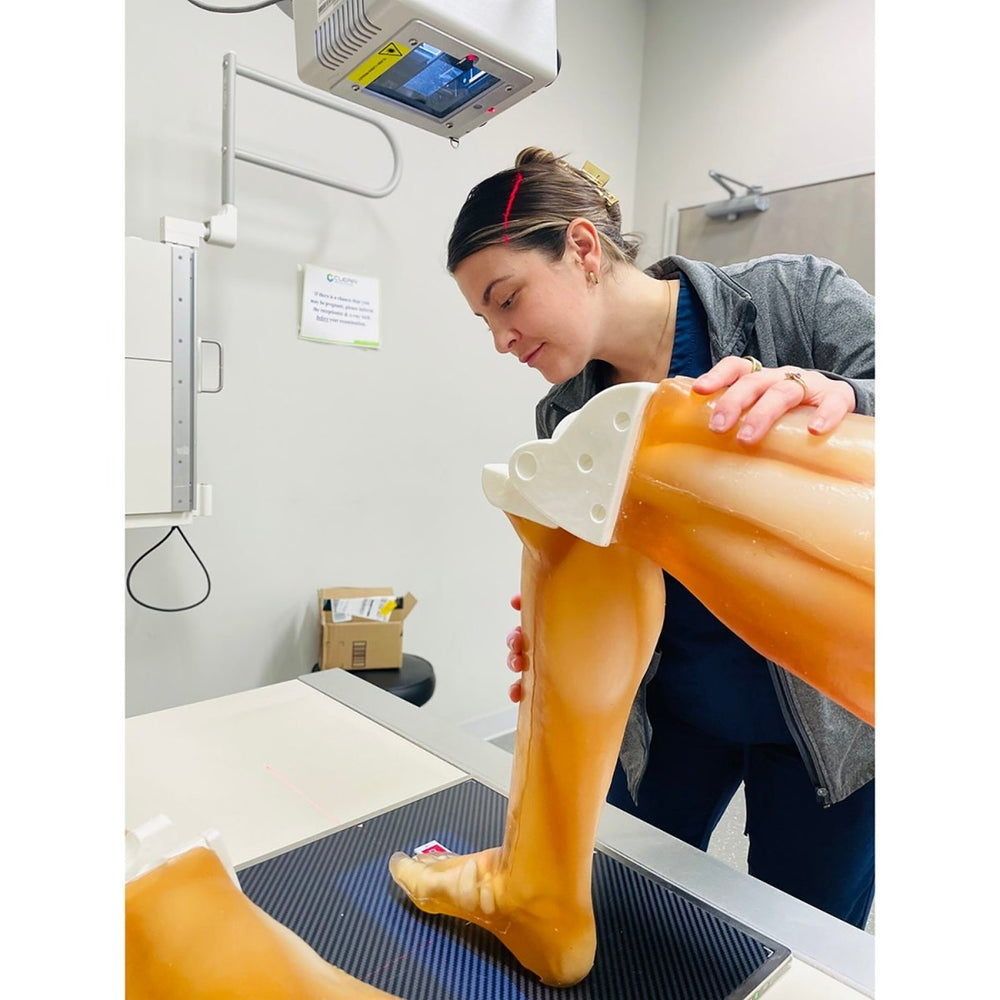

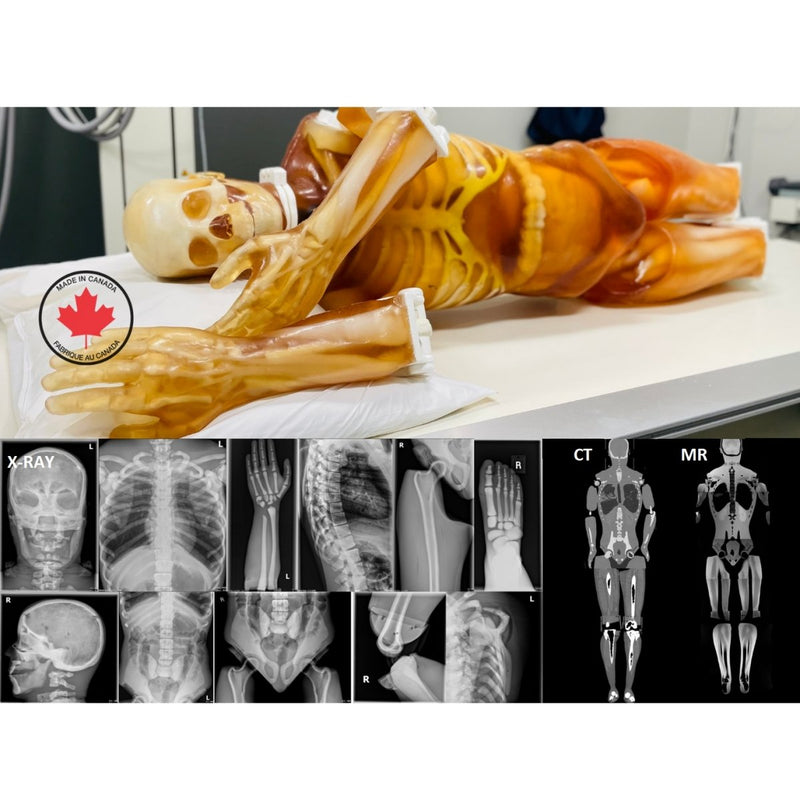

X-Ray Scans

*/ These X-Ray scans were obtained with a Control-X machine and a VXvue (DR plate) from our product, Adult Full Body (with Muscles) for X-Ray CT, MRI SKU: FB-A02. These are served as an example to refer to the imaging quality of this phantom; the standard Full body phantom (FB-A03) will not have muscles in the arms and legs. /*

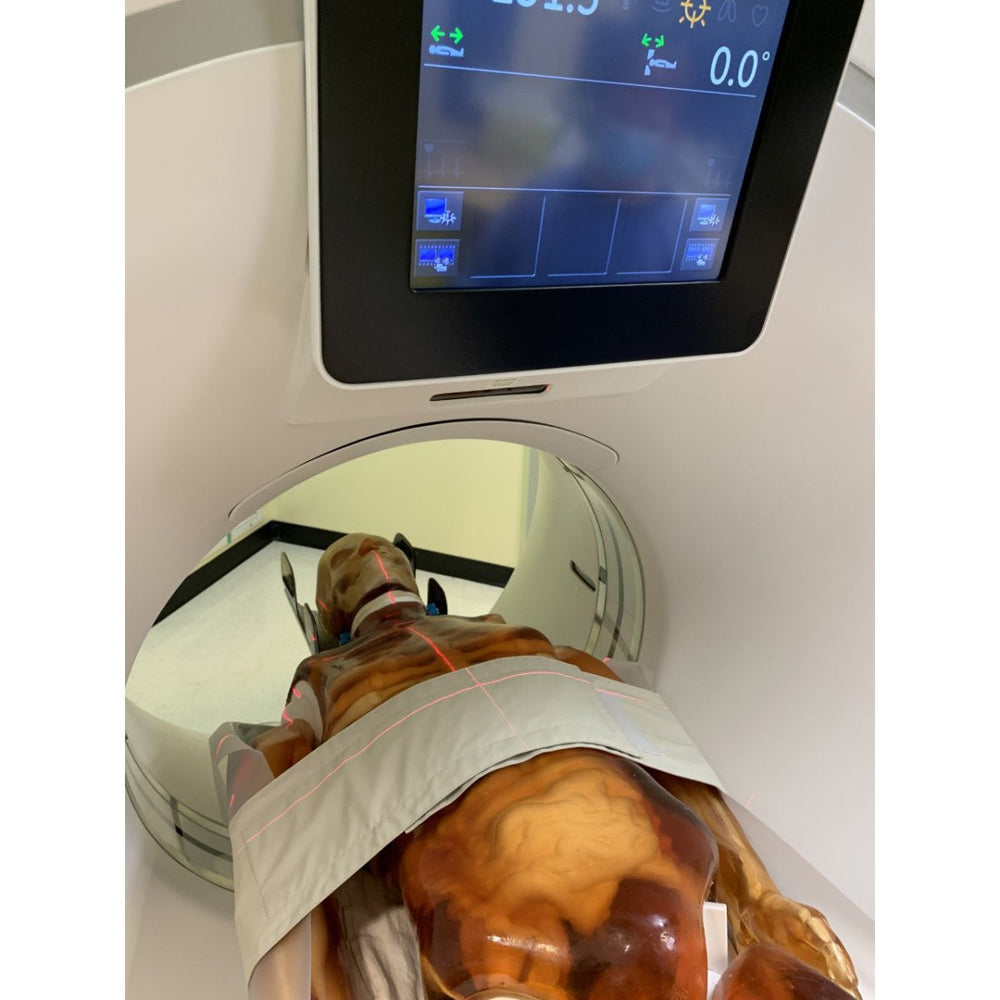

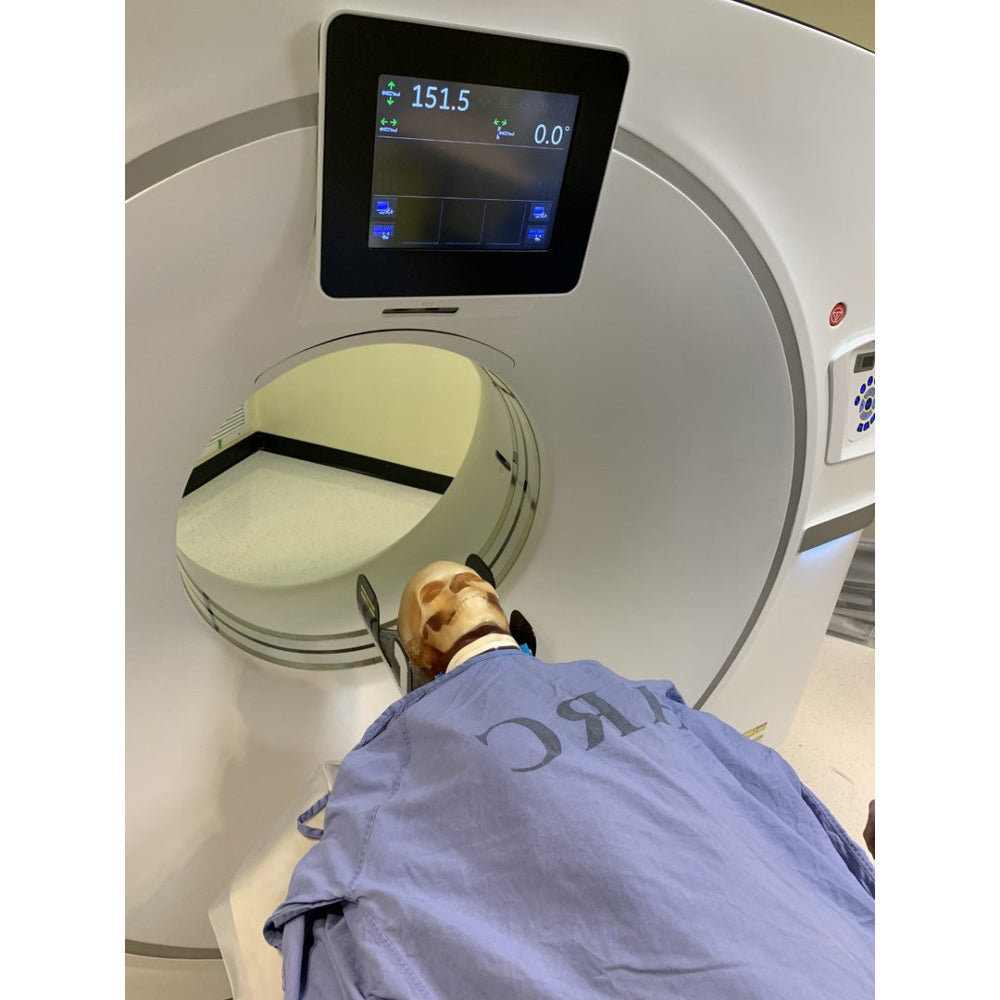

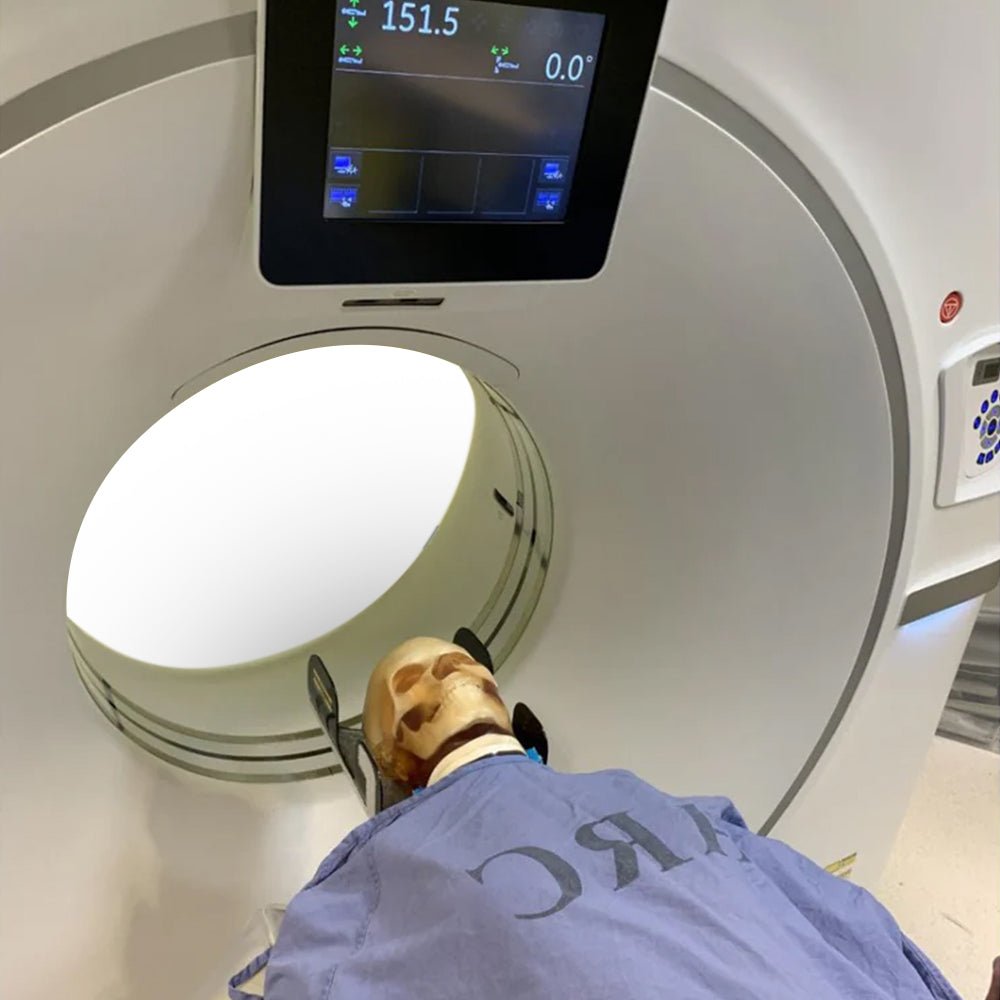

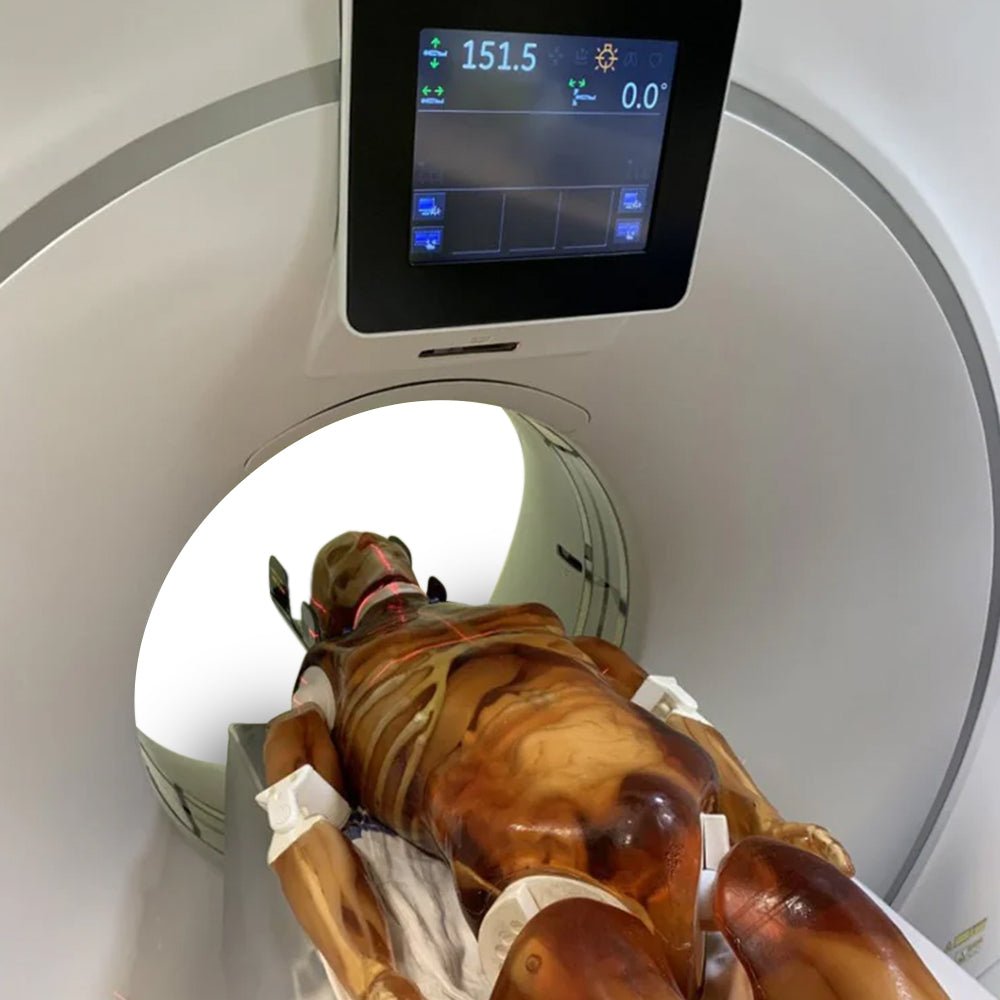

CT Scans

*/ These CT scans were obtained with a GE Revolution Spectral CT Frontier ES from our product, Adult Full Body (with Muscles) for X-Ray CT, MRI SKU: FB-A02. These are served as an example to refer to the imaging quality of this phantom; the standard Full body phantom (FB-A03) will not have muscles in the arms and legs. /*

Ultrasound Scans

*/ These X-Ray scans, CT scans and MRI scans were obtained from, Adult Full Body (with Muscles) for X-Ray CT, MRI SKU: TPS-FB-A02. These are served as an example to refer to the imaging quality of this phantom; the standard Full body phantom (TPS-FB-A01) will not have muscles in the arms and legs.
If you have any questions related to these, please Contact Us /*

Design of the Phantom:

Front – Top view

Front- Mid view

Front – Bottom view

Top View

Front – Top view

Front- Mid view

Front – Bottom view

Animation

Adult Full Human Body Phantom for X-Ray, CT Scan and Ultrasound

Phantom Dimensions and Weight:
  • Size: 69 In (approx.)
  • Weight: 155 lbs (approx.)
Shipping Dimensions and Weight:
  • Size: 47 x 36 x 18 In (approx.)
  • Weight: 199 lbs (approx.)
Materials Used
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Anatomy Projection E.I. D.I. kVp mAs
Skull AP 375 -0.2 85 20
Lateral 286 -1.4 75 8
Ribs/Chest AP/PA 412 0.6 80 5
Thoracic Spine AP 412 0.6 80 20
Lateral 782 2.6 85 56
C spine AP 165 -3.8 75 6.3
Lumbar Spine AP 448 1 88 45
Lateral 862 2.4 90 63
Abdomen Lateral 862 2.4 85 25
Pelvis AP 650 1.8 85 25
Femur AP 584 1.7 80 16
Lateral 892 3.6 80 14
Tib/Fib AP 551 0.4 74 2.5
Lateral 342 -1.6 74 2.5
Knee AP 690 1.4 75 5.6
AP 293 -2.3 80 8
Foot PA/Oblique 631 1 58 2
ScapY Lateral 257 -2.9 80 5.6
Humerus AP/Oblique 556 0.5 64 2
Hand/Wrist Lateral 155 -3.6 84 10
Type of Tissue Sound Velocity[m/s] Density [g/cm3] Attenuation Measured at 2.25 MHz [dB/cm] Hardness [Shore OO] T2 [ms] Speckles
Organs with Speckles (liver, kidneys, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 VARIABLE
Organs without Speckles (stomach, intestines, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 NO
Body Tissue 1400 ± 10 1.00 1.2 ± 0.2 30 65 NO/LOW
Tumor Feature (Optional) 1400 ± 10 1.01 1.2 ± 0.2 30 65 YES
Cortical Bone 3000 ± 30 2.31 6.4 ± 0.3 N/A N/A N/A
Trabecular Bone 2800 ± 50 2.03 21 ± 2 N/A N/A N/A
Brain Matter 1400 ± 10 0.99 1.0 ± 0.2 20 70 YES
Brain White Matter 1400 ± 10 1.01 1.3 ± 0.2 35 60 YES
Muscle Tissue
Optional
1400 ± 10 1.01 1.3 ± 0.2 35 60 YES
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (Average)
1 Body Tissue -25
2 Brain Tissue -25
3 Trabecular Bone 800
4 Cortical Bone 1300
5 Aorta 40
6 Vena Cava 40
7 Trachea 80 (Tissue Part), -1000 (Air Filled Part)
8 Pancreas 110
9 Spleen 110
10 Kidneys 110
11 Bladder 35
12 Rectum Wall 100
13 Sigmoid Colon Wall 100
14 Heart 40
15 Liver 110
16 Gallbladder 35
